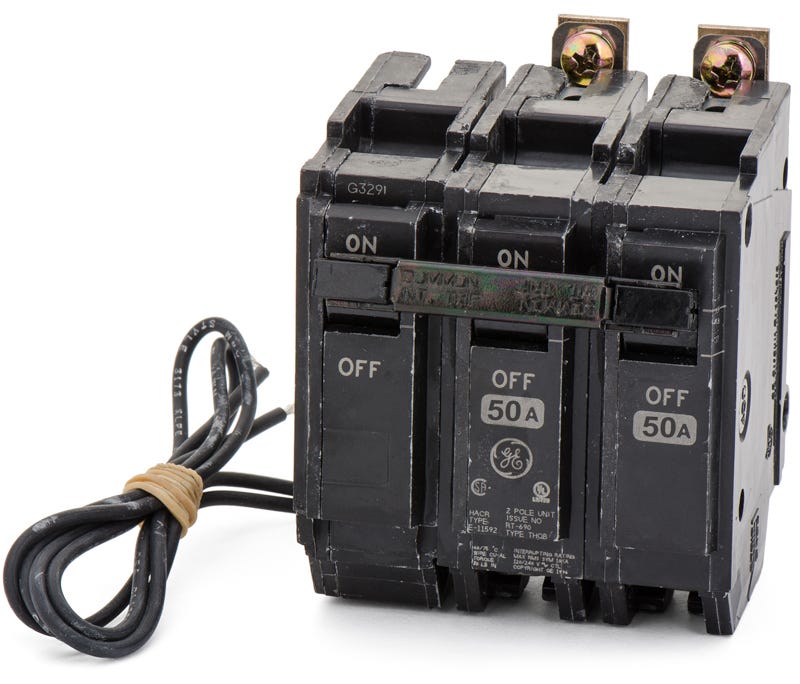

ABB / General Electric THQB2150ST1 Miniature Circuit Breaker
- 50A
- 2 Pole
- Bolt-On
ABB / General Electric
THQB2150ST1
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB2150ST1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB2150ST1 - 50A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB2150ST1 - 50A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2150ST1 |
| Series | THQB |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE AQ Lighting Panels, GE A-Series Panelboards |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (120VAC) |
| Standards | CSA C22.2 No. 5, HACR, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Sold out
Quantity
ABB / General Electric THQB2150ST1 - 50A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2150ST1-R |
| Series | THQB |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE AQ Lighting Panels, GE A-Series Panelboards |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (120VAC) |
| Standards | CSA C22.2 No. 5, HACR, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTHQB2140ST1
40A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2130ST1
30A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2180ST1
80A 2 Pole Miniature Circuit Breaker
Description
Designed for advanced control, the GE THQB2150ST1 is a 50-amp, two-pole breaker that integrates into commercial power systems. It provides standard thermal-magnetic protection alongside remote capabilities. This unit bolts into GE A-Series panelboards and AQ lighting panels. The bolt-on configuration guarantees a secure connection to the busbar. Featuring a factory-installed 120VAC shunt trip, it allows the breaker to be opened remotely. It is HACR rated and delivers a 10 kAIC capacity.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2150ST1 |
| Series | THQB |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE AQ Lighting Panels, GE A-Series Panelboards |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (120VAC) |
| Standards | CSA C22.2 No. 5, HACR, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
6 answersWhat does the ST1 suffix indicate on the THQB2150ST1?
The ST1 suffix indicates this breaker includes a factory-installed 120VAC shunt trip accessory, allowing the breaker to be opened remotely.
Which GE panelboards are compatible with this 50A bolt-on breaker?
This Q-Line breaker is designed to bolt directly onto the bus connections of GE A-Series panelboards and GE AQ lighting panels.
Is the THQB2150ST1 suitable for reverse feed applications?
Yes, this thermal-magnetic circuit breaker is suitable for reverse feed installations.
Does this 50A breaker carry an HACR rating?
Yes, it is HACR rated, making it suitable for protecting heating, air conditioning, and refrigeration equipment circuits.
What type of wire can be used with the box lugs on this breaker?
The load side box lugs accept 8 to 3 AWG copper or aluminum wire.
What safety mechanisms are built into this Q-Line breaker?
It features a quick-make, quick-break mechanism and an internal common trip bar to ensure both poles trip simultaneously under fault conditions.
