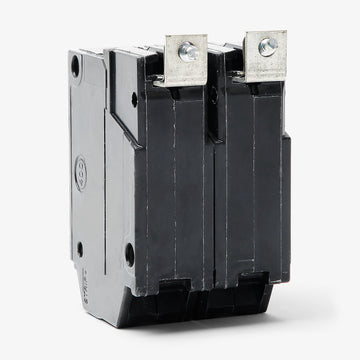

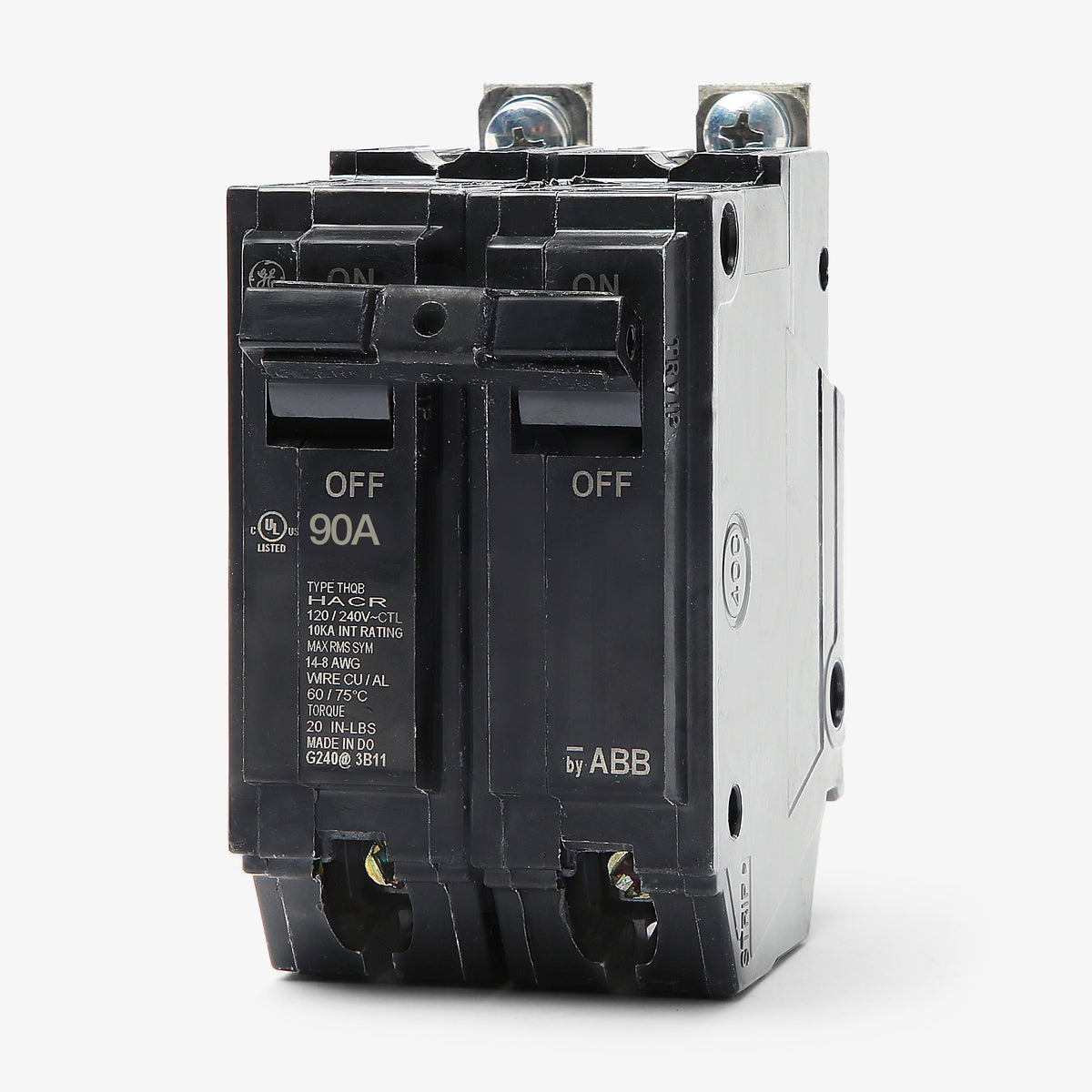

ABB / General Electric THQB2190 Miniature Circuit Breaker
- 90A
- 2 Pole

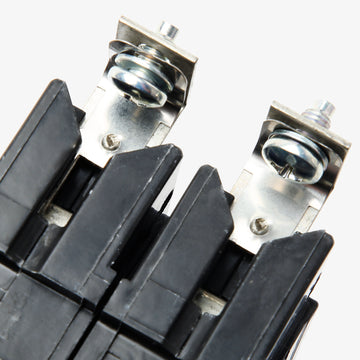

- Bolt-On
ABB / General Electric
THQB2190
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB2190
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB2190 - 90A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB2190 - 90A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2190 |
| Series | THQB |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip, Visual Trip Indicator, Reverse Feed |
Sold out
Quantity
ABB / General Electric THQB2190 - 90A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2190-R |
| Series | THQB |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip, Visual Trip Indicator, Reverse Feed |
Similar Items
ABB / General ElectricTHQB21100
100A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB21100ST1
100A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2180
80A 2 Pole Miniature Circuit Breaker
Description
Built for versatile applications, the THQB2190 is a 90A miniature circuit breaker from GE's Q-Line family. It provides dependable protection with standard long-time and instantaneous trip functions. This unit mounts into GE A-Series panelboards using a secure bolt-on connection, ensuring a tight, vibration-resistant fit to the busbar. Rated at 10kAIC, it includes a visual trip indicator for quick fault identification. The breaker is HACR rated and supports reverse feed setups.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2190 |
| Series | THQB |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip, Visual Trip Indicator, Reverse Feed |
Product FAQs
6 answersWhich panelboards are compatible with the THQB2190 circuit breaker?
The THQB2190 is a bolt-on Q-Line breaker designed for use in GE A-Series panelboards, including AQ lighting panels.
Is the THQB2190 circuit breaker HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.

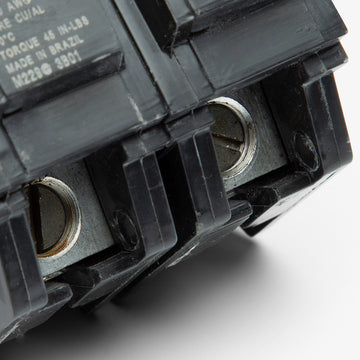

What is the recommended lug tightening torque for the THQB2190?
For the box lugs on this breaker, the recommended torque is 45 in-lb for #6 to #4 AWG wire, and 50 in-lb for #3 to 1/0 AWG wire.
Can the THQB2190 be used in reverse feed applications?
Yes, this thermal-magnetic breaker is suitable for reverse feed installations.
What is the difference between THQB and THQL breakers?
THQB breakers, like the THQB2190, feature a bolt-on connection for commercial panelboards. THQL breakers are plug-in style breakers typically used in residential load centers. They are not interchangeable.
Does the THQB2190 provide ground fault or arc fault protection?
No, the THQB2190 is a standard thermal-magnetic breaker with long-time and instantaneous (LI) trip functions. It does not include GFCI or AFCI protection.
