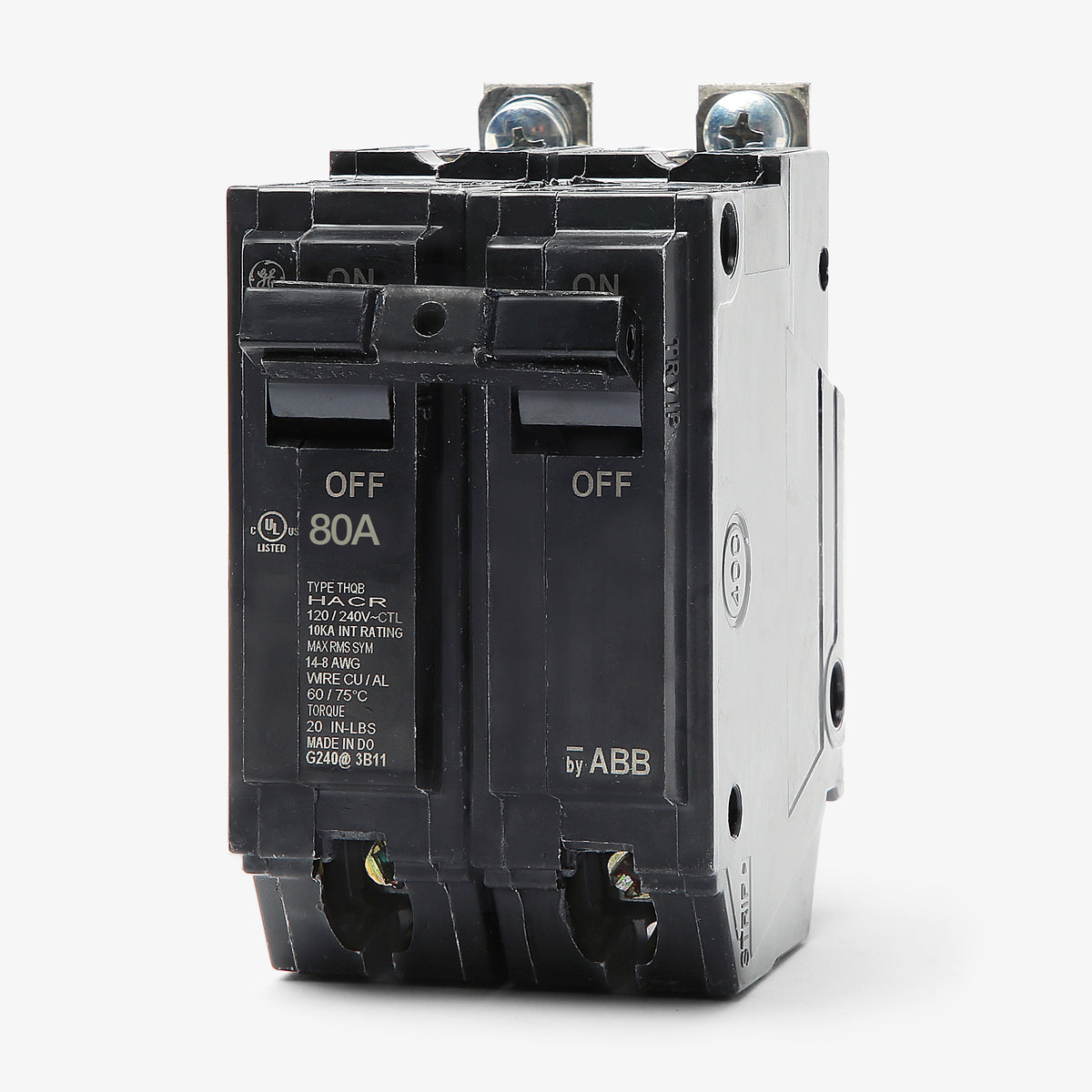

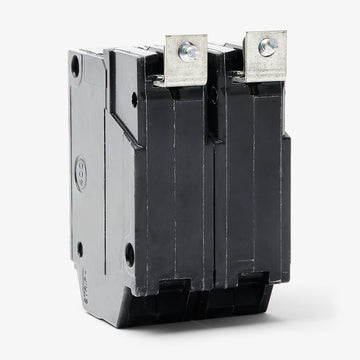

ABB / General Electric THQB2180 Miniature Circuit Breaker
- 80A
- 2 Pole

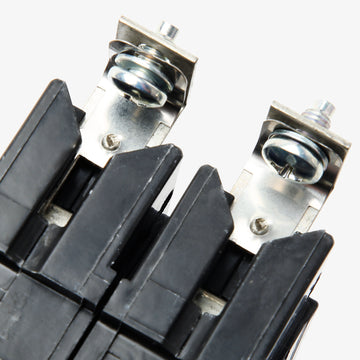

- Bolt-On
ABB / General Electric
THQB2180
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB2180
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB2180 - 80A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB2180 - 80A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2180 |
| Series | THQB |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|

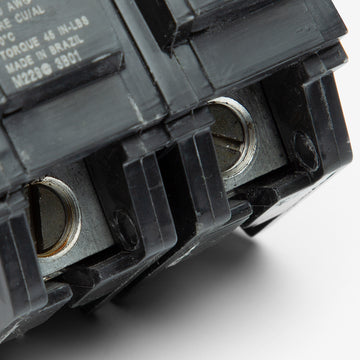

| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THQB2180 - 80A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2180-R |
| Series | THQB |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQB2190
90A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2190ST1
90A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2170
70A 2 Pole Miniature Circuit Breaker
Description
Built for commercial applications, the GE THQB2180 is an 80-amp, two-pole miniature circuit breaker from the Q-Line series. It delivers reliable thermal-magnetic trip functionality with a 10kAIC rating at 120/240VAC, ensuring safety across various electrical distribution setups. This unit installs into GE A-Series panelboards, utilizing a bolt-on mounting style for a stable, permanent connection to the bus. The breaker includes an internal common trip and is HACR rated for HVAC equipment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2180 |
| Series | THQB |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Product FAQs
7 answersWhich commercial panelboards accept the THQB2180?
This bolt-on breaker is engineered for GE and ABB A-Series panelboards. It is most commonly installed in AQ panelboards used for 208Y/120V and 120/240V distribution systems.
Can the THQB2180 be installed in standard GE residential load centers?
No. This unit features a bolt-on mounting design for commercial panelboards. It will not fit into standard GE load centers, which require plug-on Q-Line breakers like the THQL series.
Is there a 22kAIC version available for higher fault-current systems?
Yes. While the standard THQB2180 has a 10kAIC rating, applications requiring a 22kAIC interrupting capacity at 120/240VAC can use the direct heavy-duty equivalent, catalog number THHQB2180.
Are there special termination requirements when using aluminum wire?
Yes. When connecting 4 to 1/0 AWG aluminum conductors to the box lugs, installers should wire-brush the exposed conductor and apply an approved oxide-inhibiting compound before tightening to prevent corrosion and ensure a reliable connection.
What is the maximum continuous load permitted for this 80-amp breaker?
Standard miniature circuit breakers like the THQB2180 are rated for 80 percent continuous duty. For continuous loads lasting three hours or more, the maximum permitted draw is 64 amps.
Is this circuit breaker HACR rated?
Yes. All THQB circuit breakers are HACR rated, making this unit suitable for use with heating, air conditioning, and refrigeration equipment that requires multi-motor short-circuit protection.
Does this breaker provide ground-fault or arc-fault protection?
No. The THQB2180 is a standard thermal-magnetic breaker with long-time and instantaneous trip functions. It does not contain the specialized circuitry required for equipment protection, personnel ground-fault protection, or arc-fault detection.
