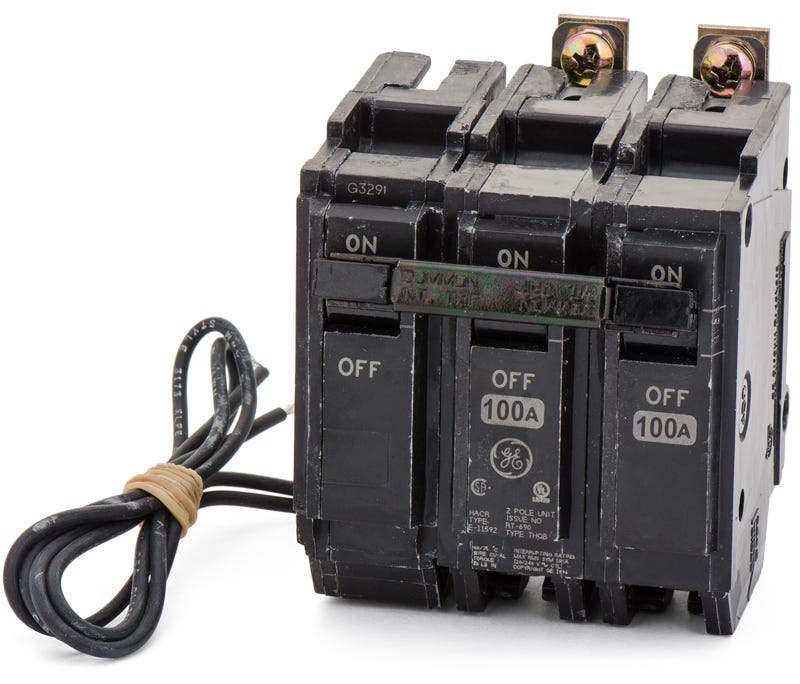

ABB / General Electric THQB21100ST1 Miniature Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
ABB / General Electric
THQB21100ST1
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB21100ST1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB21100ST1 - 100A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB21100ST1 - 100A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB21100ST1 |
| Series | THQB |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Sold out
Quantity
ABB / General Electric THQB21100ST1 - 100A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB21100ST1-R |
| Series | THQB |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTHQB2180ST1
80A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2160ST1
60A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2150ST1
50A 2 Pole Miniature Circuit Breaker
Description
Engineered for commercial and industrial power distribution, this 100-amp breaker provides robust thermal-magnetic overcurrent protection. It bolts into GE A-Series panelboards and AQ lighting panels to ensure a stable, vibration-resistant connection. An integrated 120VAC shunt trip allows facility managers to remotely open the circuit when needed. This Q-Line breaker features a 10kAIC rating and a quick-make, quick-break mechanism.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB21100ST1 |
| Series | THQB |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
7 answersWhich panelboards are compatible with the THQB21100ST1 breaker?
This bolt-on breaker is specifically designed for installation in GE A-Series panelboards and GE AQ lighting panels.
What does the ST1 suffix mean on this GE circuit breaker?
The ST1 designation indicates that the breaker is equipped with a factory-installed 120VAC shunt trip. This allows facility managers or automated systems to remotely open the circuit for emergency shutdowns or load shedding.
How is the integrated shunt trip wired and activated?
The shunt trip accessory requires a dedicated 120VAC control circuit. Applying voltage to the shunt trip circuit via a remote normally open contact, such as an emergency stop button or relay, will mechanically trip the breaker.
Can I substitute a THQL breaker for the THQB21100ST1?
No. While both are Q-Line breakers, the THQL series uses a plug-in connection. The THQB series requires a bolt-on connection to secure directly to the panel bus, making them non-interchangeable.
How does the breaker indicate that it has tripped?
Like other GE Q-Line breakers, it features a quick-make, quick-break mechanism with a common trip bar. When a fault is detected, the handle moves to a center position for easy visual identification of a tripped circuit.
Can this two-pole breaker be used in a three-phase panelboard?
Yes. It can be bolted into a three-phase GE A-Series panelboard, where it will connect to two of the three bus bars to supply a single-phase 240VAC load.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. As a result, GE-branded breakers like the THQB series are now manufactured and distributed under the ABB brand, though they retain the exact same form, fit, and function for legacy GE panels.
