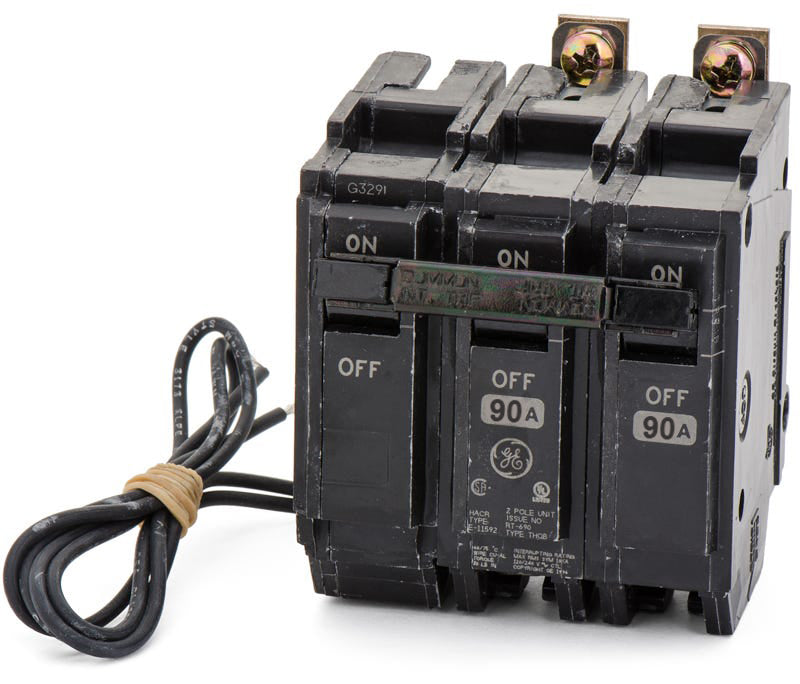

ABB / General Electric THQB2190ST1 Miniature Circuit Breaker
- 90A
- 2 Pole
- Bolt-On
ABB / General Electric
THQB2190ST1
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB2190ST1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB2190ST1 - 90A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQB2180ST1
80A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2160ST1
60A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2150ST1
50A 2 Pole Miniature Circuit Breaker
Description
Engineered for commercial and industrial applications, this 90-amp bolt-on component provides reliable thermal-magnetic protection. The factory-installed 120VAC shunt trip mechanism enables remote opening of the circuit for enhanced facility control and safety protocols. It installs into GE A-Series panelboards and AQ lighting panels using standard box lug terminals. The unit accommodates 6-1/0 AWG copper or 4-1/0 AWG aluminum wire. Rated for 10kAIC at 120/240VAC, it includes an HACR rating.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | THQB |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE AQ Lighting Panels, GE A-Series Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break |
Product FAQs
7 answersWhich panelboards are compatible with the THQB2190ST1 circuit breaker?
This bolt-on breaker is designed specifically for installation in GE AQ Lighting Panels and GE A-Series Panelboards. It is not compatible with standard plug-in load centers.
What does the ST1 suffix indicate on the THQB2190ST1?
The ST1 suffix designates a factory-installed 120VAC shunt trip mechanism. This allows the breaker to be tripped remotely via an external control signal, which is commonly used for emergency shutdowns or automated safety protocols.
What wire sizes are accepted by the box lugs on this 90A breaker?
The terminals accommodate 6 to 1/0 AWG copper conductors or 4 to 1/0 AWG aluminum conductors. Ensure proper torque specifications are followed during installation.
Is the THQB2190ST1 manufactured by GE or ABB?
ABB acquired GE Industrial Solutions in 2018. The Q-Line series continues production under the exact same catalog numbers, meaning a THQB2190ST1 is identical and fully interchangeable whether the label reads GE, ABB, or GE by ABB.
Can I use the THQB2190ST1 if my panel requires a 22kAIC rating?
No, the THQB2190ST1 is rated for a maximum of 10kAIC at 120/240VAC. If your system requires a 22kAIC interrupting capacity, you will need to source the THHQB equivalent.
Does the THQB2190ST1 provide ground fault or arc fault protection?
No, this model features standard thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions. It does not include GFI, GFEP, or AFCI protection.
How does the bolt-on connection of the THQB2190ST1 differ from plug-in models?
Bolt-on breakers like the THQB series secure directly to the panel bus with screws, providing a rigid, vibration-resistant connection typical in commercial and industrial environments. Plug-in models (THQL) are not interchangeable with bolt-on panels.
