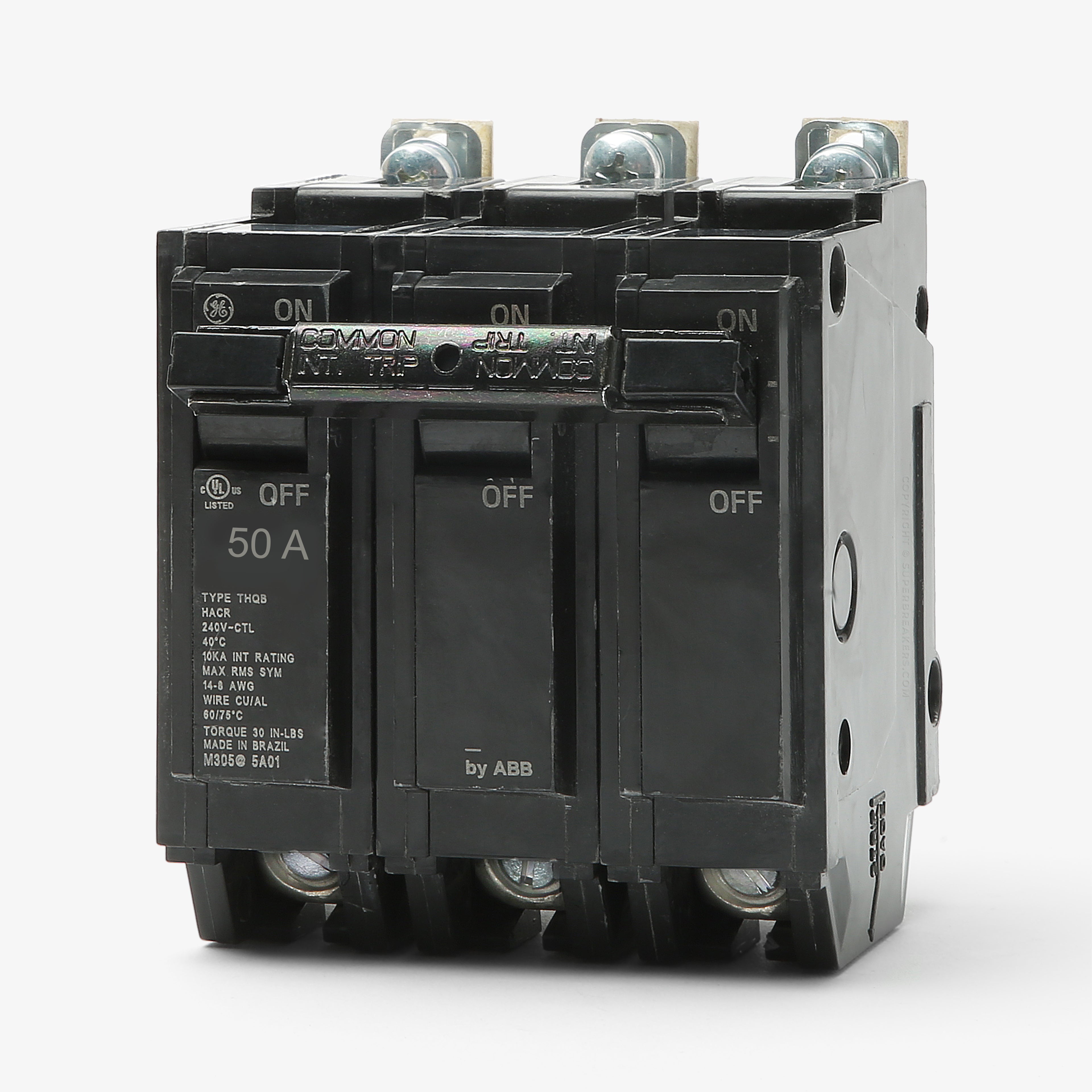

ABB / General Electric THQB32050 Miniature Circuit Breaker
- 50A
- 3 Pole
- Bolt-On
ABB / General Electric
THQB32050
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB32050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB32050 - 50A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB32050 - 50A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32050 |
| Series | THQB |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip, Visual Trip Indicator, Reverse Feed |
Sold out
Quantity
ABB / General Electric THQB32050 - 50A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32050-R |
| Series | THQB |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip, Visual Trip Indicator, Reverse Feed |
Similar Items
ABB / General ElectricTHQB32045
45A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB32045ST1
45A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB32060
60A 3 Pole Miniature Circuit Breaker
Description
Providing reliable overcurrent protection, the GE THQB32050 is a 50A, three-pole breaker built for commercial applications. It utilizes thermal-magnetic technology to safeguard circuits. This bolt-on breaker mounts into GE A-Series panelboards. It includes box lug terminals for 8-3 AWG wiring and supports reverse feed applications. With a 10kAIC rating at 240VAC, the unit features a quick-make, quick-break mechanism and a visual trip indicator for easy troubleshooting.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32050 |
| Series | THQB |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip, Visual Trip Indicator, Reverse Feed |
Product FAQs
6 answersWhat panelboards accept the THQB32050 breaker?
This three-pole unit is designed for General Electric and ABB A-Series panelboards, particularly the AQ lighting and distribution panel lines. It bolts directly to the interior bus.
Can I install the THQB32050 in a standard GE residential load center?
No. This is a bolt-on breaker intended for commercial A-Series panelboards. It cannot be used in load centers that require plug-in THQL or THQP style breakers.
How much physical panel space does this breaker occupy?
The THQB frame is built on a standard one-inch pole width. Because this is a three-pole device, it requires three continuous inches of mounting space on the panelboard bus.
Is this breaker approved for use with HVAC motor loads?
Yes, this breaker is HACR rated. It is evaluated for the specific electrical demands and inrush currents of heating, air conditioning, and refrigeration equipment.
Can the THQB32050 be used to replace older TQB series breakers?
Yes. The current THQB product line is the direct mechanical and electrical equivalent to the legacy TQB series bolt-on breakers.
Can the THQB32050 be used on a 208V three-phase system?
Yes. While the maximum rating is 240VAC, this breaker is fully compatible with 208Y/120VAC three-phase power systems frequently used in commercial applications.
