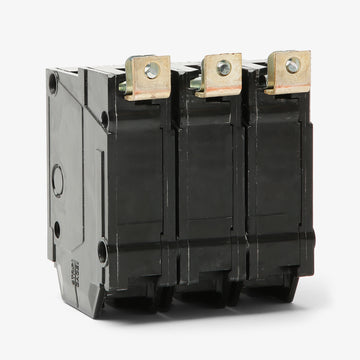

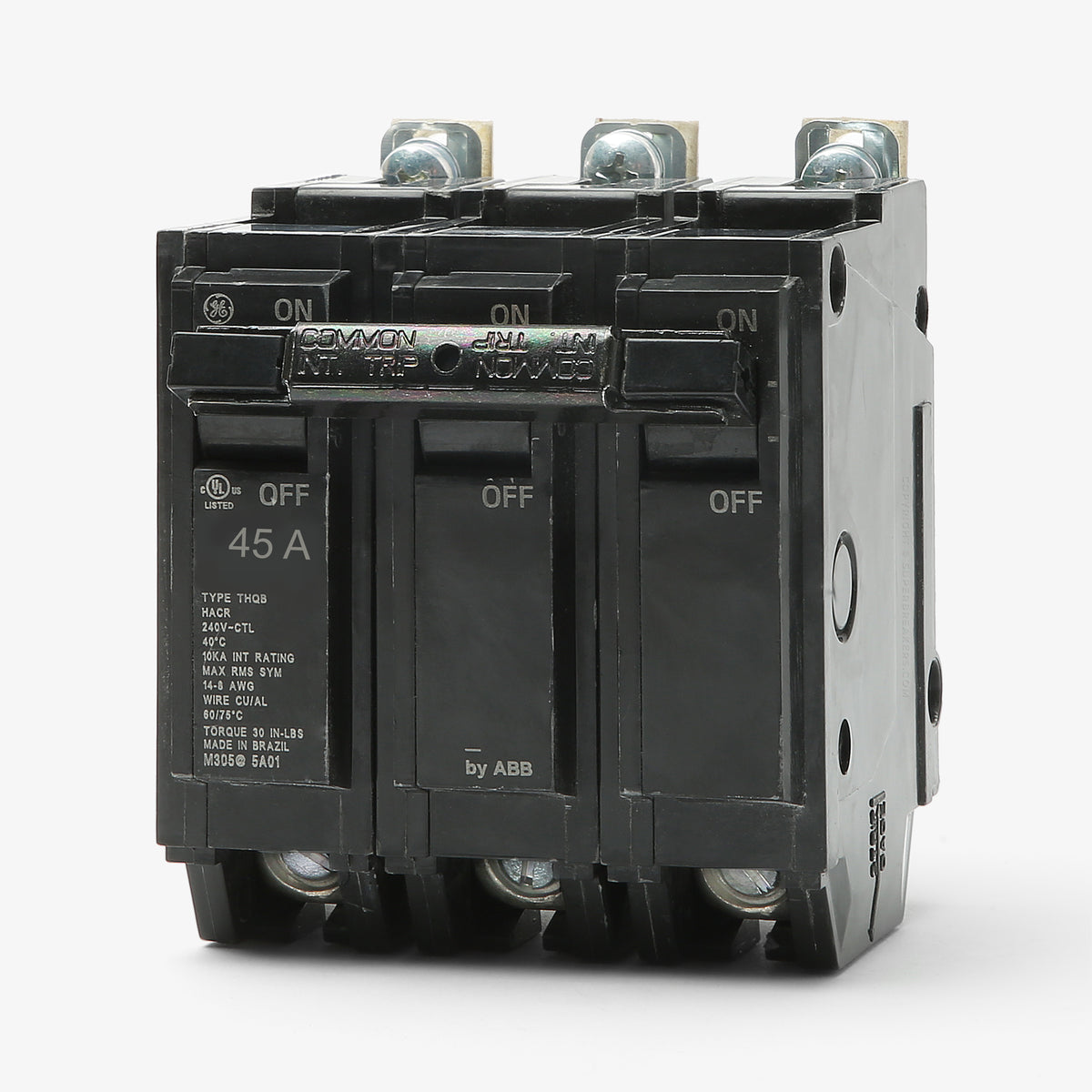

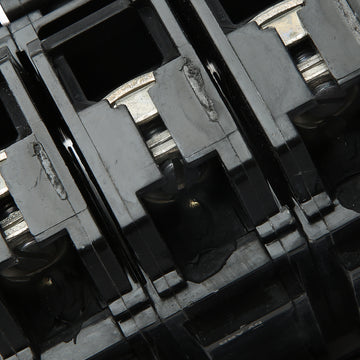

ABB / General Electric THQB32045 Miniature Circuit Breaker
- 45A
- 3 Pole
- Bolt-On
ABB / General Electric
THQB32045
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB32045
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB32045 - 45A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB32045 - 45A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32045-R |
| Series | THQB |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels, ReliaGear RQ Panelboards |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Sold out
Quantity
ABB / General Electric THQB32045 - 45A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32045-R |
| Series | THQB |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels, ReliaGear RQ Panelboards |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTHQB32050
50A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB32050ST1
50A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB32040
40A 3 Pole Miniature Circuit Breaker
Description
Built for heavy-duty commercial and industrial environments, this 45-amp miniature circuit breaker ensures consistent electrical safety. It fastens firmly into GE A-Series panelboards, AQ lighting panels, and ReliaGear RQ enclosures using a secure bolt-on mounting method. The non-interchangeable thermal-magnetic trip unit features quick-make/quick-break mechanisms to minimize arcing. This HACR-rated component provides a standard 10kA interrupting capacity at 240VAC.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32045-R |
| Series | THQB |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels, ReliaGear RQ Panelboards |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
4 answersWhich panelboards accept the THQB32045, and how does it differ from THQL breakers?
The THQB32045 is a bolt-on breaker designed for commercial GE A-Series panelboards, AQ lighting panels, and ReliaGear RQ panelboards. It bolts directly to the panel bus, whereas THQL breakers are plug-in style devices for residential load centers. The two mounting styles are not interchangeable.

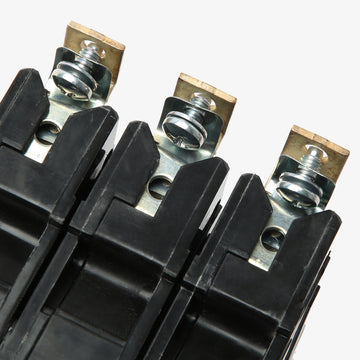

What are the recommended torque specifications for the box lugs on the THQB32045?
The required tightening torque depends on the wire size used. For 8 AWG wire, torque to 40 in-lb. For 6 AWG to 4 AWG wire, torque to 45 in-lb. For 3 AWG wire, torque to 50 in-lb. The terminals accept both copper and aluminum conductors.
Is the THQB32045 circuit breaker HACR rated?
Yes, this breaker is HACR rated, meaning it is UL listed for use with heating, air conditioning, and refrigeration equipment that requires dedicated overcurrent protection.
Why might my THQB32045 breaker arrive with ABB branding instead of General Electric?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, the THQB32045 may feature either ABB or GE branding, but the physical dimensions, mounting, and electrical specifications remain identical.
