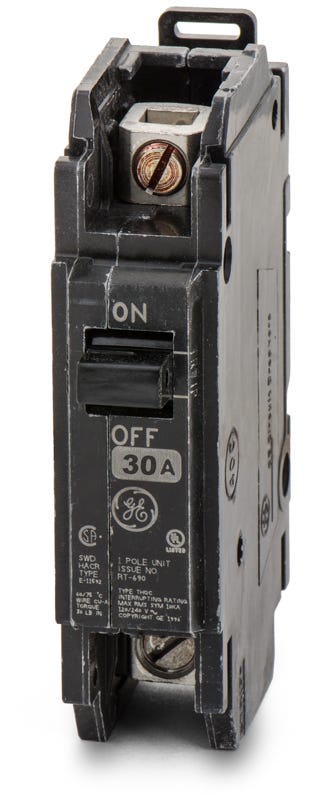

ABB / General Electric THQC1130 Molded Case Circuit Breaker
- 30A
- 1 Pole
- DIN Rail
ABB / General Electric
THQC1130
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQC1130
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQC1130 - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQC1130 - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC1130 |
| Series | THQC |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Mounting Feet |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Visual Trip Indicator, Non-Interchangeable Trip, Reverse Feed |
Sold out
Quantity
ABB / General Electric THQC1130 - 30A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC1130-R |
| Series | THQC |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Mounting Feet |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Visual Trip Indicator, Non-Interchangeable Trip, Reverse Feed |
Similar Items

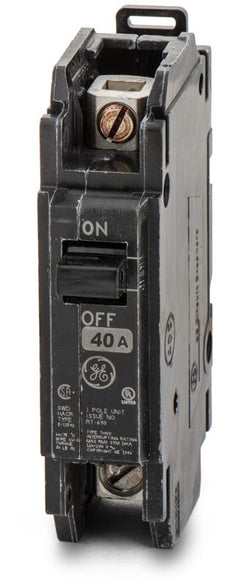

ABB / General ElectricTHQC1140WL
40A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC1140
40A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC1120WL
20A 1 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, the GE THQC1130 provides 30 amps of reliable 120/240V power protection across a single pole. It utilizes a non-interchangeable thermal-magnetic trip unit to quickly clear electrical faults and prevent equipment damage. This compact breaker mounts onto standard 35mm DIN rails, making it highly adaptable for OEM panels, automation cabinets, and custom enclosures. With a 10 kAIC rating, it is fully HACR certified for dedicated HVAC loads.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC1130 |
| Series | THQC |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Mounting Feet |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Visual Trip Indicator, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
6 answersWhat is the difference between THQC, THQB, and THQL circuit breakers?
THQC breakers feature lug terminals for cable-in and cable-out connections, designed for DIN rail or base mounting in control panels. THQB breakers are bolt-on models for commercial panelboards, and THQL breakers are plug-in models for residential load centers.
Can the THQC1130 be installed in a standard GE PowerMark load center?
No. Standard GE PowerMark residential load centers require THQL plug-in breakers. The THQC1130 is a lug-to-lug breaker intended for DIN rail systems and OEM enclosures.
What does the Q-Line designation mean for this breaker?
Q-Line is the General Electric family of compact, one-inch wide per pole circuit breakers. The THQC series represents the lug-to-lug version of this family, sharing the same internal mechanisms as the THQL and THQB models.
Is the THQC1130 branded as GE or ABB?
ABB acquired GE Industrial Solutions, so current production of the THQC1130 may carry GE, ABB, or GE by ABB branding. The physical footprint and specifications remain identical regardless of the logo printed on the breaker.
How is the THQC1130 breaker mounted in an enclosure?
The THQC1130 is designed for use in DIN rail systems, OEM panels, and enclosures. It can be mounted to a standard 35mm DIN rail using a compatible mounting clip or bolted directly to a base plate within a control panel.
How does the thermal-magnetic trip unit function on this breaker?
The fixed thermal element provides long-time protection by tripping during sustained overloads. The fixed magnetic element provides instantaneous protection by tripping immediately during high-current short circuits.
