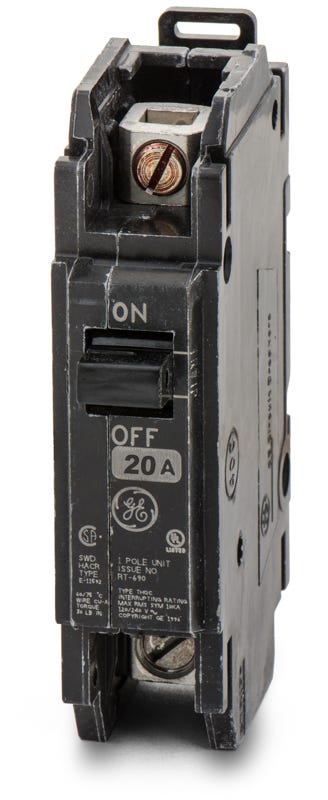

ABB / General Electric THQC1120WL Molded Case Circuit Breaker
- 20A
- 1 Pole
- DIN Rail
ABB / General Electric
THQC1120WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQC1120WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQC1120WL - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQC1115
15A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC1115WL
15A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC1130
30A 1 Pole Molded Case Circuit Breaker
Description
Part of the GE Q-Line series, the THQC1120WL delivers 20 amps of single-pole circuit protection and features factory-installed line and load lugs. This configuration streamlines the wiring process for contractors working on 120/240V systems. The breaker mounts onto standard 35mm DIN rails, providing a secure fit for OEM panels, control cabinets, and compatible GE enclosures. Delivering a 10 kAIC interrupting rating, it utilizes thermal-magnetic trip technology and carries HACR certification.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC1120WL |
| Series | THQC |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Q-Line Enclosures, DIN Rail, OEM Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | HACR, UL 489, SWD |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break, Visual Trip Indicator |
Product FAQs
6 answersWhat does the "WL" suffix mean on the THQC1120WL?
The "WL" suffix indicates that the breaker comes with factory-installed lugs on both the line and load sides. This makes it a cable-in/cable-out, or feed-thru, breaker rather than a plug-in or bolt-on type.
What is the difference between GE THQC, THQL, and THQB breakers?
While all are part of the GE Q-Line family and share a 1-inch per pole width, their mounting methods differ. THQC breakers are cable-in/cable-out and often DIN rail mounted. THQL breakers are plug-in for residential load centers, and THQB breakers are bolt-on for commercial panelboards.
Can I use the THQC1120WL in a standard GE residential load center?
No. Standard GE residential load centers require plug-in THQL or THQP breakers. The THQC1120WL is a lug-to-lug breaker designed for DIN rail mounting or OEM control panels, and it will not connect to standard plug-in busbars.
Are ABB and GE THQC1120WL breakers the exact same product?
Yes. Following ABB acquiring GE Industrial Solutions, these breakers may be branded as either ABB or GE. They are identical in form, fit, and function, and they are fully interchangeable.
Is the THQC1120WL HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires this specific certification.
Does the THQC1120WL require a separate adapter for DIN rail installation?
No separate adapter is required. The THQC series features a built-in mounting mechanism designed to snap directly onto standard 35mm DIN rails.
