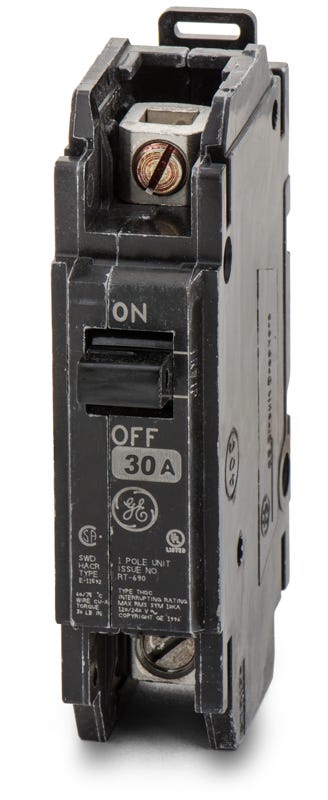

ABB / General Electric THQC1130WL Molded Case Circuit Breaker
- 30A
- 1 Pole
- DIN Rail
ABB / General Electric
THQC1130WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQC1130WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQC1130WL - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQC1140
40A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC1140WL
40A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC1120WL
20A 1 Pole Molded Case Circuit Breaker
Description
Built for demanding control environments, this 30-amp Q-Line breaker comes standard with both line and load lugs to accelerate wiring tasks. The device mounts onto DIN rail systems within OEM enclosures, offering flexible integration for facility managers. Delivering a 10kA interrupt capacity alongside quick-make/quick-break mechanisms, it ensures reliable thermal-magnetic defense against overcurrents in 120/240V circuits.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC1130WL |
| Series | THQC |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Visual Trip Indicator |
Product FAQs
6 answersWhat does the WL suffix indicate on the THQC1130WL catalog number?
The WL suffix designates that the circuit breaker is factory-equipped with copper/aluminum (Cu/Al) line and load lugs.
How is the THQC1130WL secured inside an enclosure?
This breaker is designed to mount onto standard 35mm DIN rail systems. For applications requiring base mounting, it can also be secured using THQCFMK front/rear mounting clips.
What wire sizes are accepted by the terminal lugs on this breaker?
The line and load lugs accept conductors ranging from 14 to 8 AWG for copper wire, and 12 to 8 AWG for aluminum wire.
Why might this breaker arrive with ABB branding instead of General Electric?
ABB acquired GE Industrial Solutions in 2018. The THQC1130WL is manufactured to the exact same Q-Line specifications, but newer production runs will feature the ABB logo instead of the traditional GE branding.
Does this breaker plug onto a panelboard busbar?
No, the THQC1130WL features a feed-thru connection type. It requires hardwired connections at both the line and load terminals and does not plug into a load center bus.
What does the LI trip function code mean for this breaker?
The LI designation indicates that the thermal-magnetic trip unit provides both Long-Time (thermal) protection for sustained overloads and Instantaneous (magnetic) protection for short circuits.
