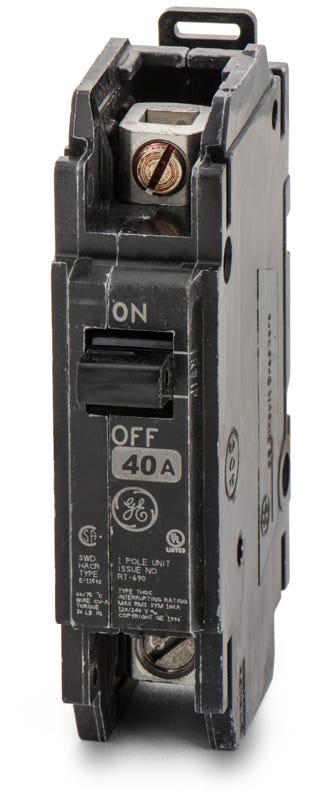

ABB / General Electric THQC1140 Molded Case Circuit Breaker
- 40A
- 1 Pole
- DIN Rail
ABB / General Electric
THQC1140
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQC1140
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQC1140 - 40A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQC1140 - 40A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC1140 |
| Series | THQC |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Visual Trip Indicator |
Quantity
ABB / General Electric THQC1140 - 40A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC1140-R |
| Series | THQC |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Visual Trip Indicator |
Similar Items
ABB / General ElectricTHQC1150WL
50A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC1150
50A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC1130
30A 1 Pole Molded Case Circuit Breaker
Description
Accommodating heavier 8-3 AWG wiring, this 40A single-pole breaker delivers substantial thermal-magnetic protection for industrial machinery. It fastens securely onto standard DIN rails inside custom enclosures and OEM panelboards without requiring specialized hardware. Rated for 10kAIC at 120/240VAC, the HACR-rated unit utilizes a quick-make/quick-break toggle mechanism to prevent arcing and extend operational lifespan.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC1140 |
| Series | THQC |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Visual Trip Indicator |
Product FAQs
6 answersWhat types of systems is the THQC1140 breaker designed for?
This Q-Line breaker is built for OEM panels, custom enclosures, and DIN rail systems. It is a lug-to-lug device, meaning it does not plug into or bolt onto standard residential load center bus bars like THQL or THQB breakers.
Why might this breaker be labeled as ABB instead of General Electric?
Following the ABB acquisition of GE Industrial Solutions, Q-Line breakers are transitioning to ABB branding. A THQC1140 labeled as ABB is identical in form, fit, and function to a GE-branded unit and is fully interchangeable.
What wire gauges are supported by the terminals on the THQC1140?
The line and load lugs accept wire sizes ranging from 8 AWG to 3 AWG. The terminals are compatible with both copper and aluminum conductors.
How is the THQC1140 mounted inside an enclosure?
The breaker is designed to mount directly onto standard 35mm DIN rails within industrial control panels and custom enclosures.
What type of trip protection does the THQC1140 provide?
It utilizes a fixed thermal-magnetic trip unit with long-time and instantaneous (LI) functions. The breaker also features a quick-make, quick-break internal mechanism to minimize arcing during operation.
Is the THQC1140 rated for HVAC equipment?
Yes, GE Q-Line breakers in this 40A class are HACR rated, meaning they are approved for use with heating, air conditioning, and refrigeration equipment.
