ABB / General ElectricTHQC1150
Free Shipping Over $99

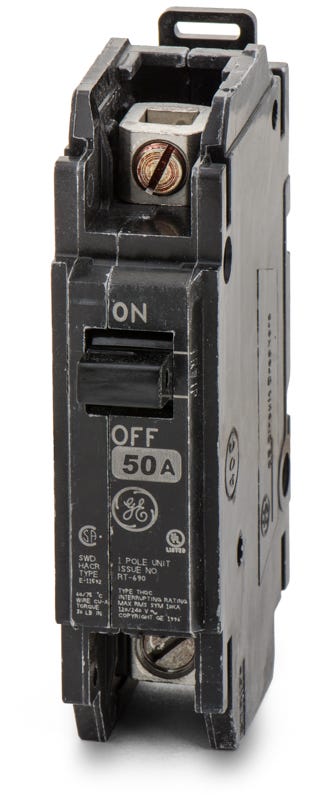

ABB / General Electric THQC1150WL Molded Case Circuit Breaker
- 50A
- 1 Pole
- DIN Rail
ABB / General Electric
THQC1150WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQC1150WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQC1150WL - 50A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQC1140WL
40A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC1140
40A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC1130
30A 1 Pole Molded Case Circuit Breaker
Description
Part of the robust Q-Line family, the GE THQC1150WL delivers 50 amps of continuous current handling for demanding environments. This single-pole molded case breaker is engineered to protect commercial and industrial branch circuits. The device fastens onto standard 35mm DIN rails, offering a versatile mounting solution for OEM panels and specialized enclosures. Delivering a 10kAIC interrupting capacity at 120/240VAC, the unit includes a visual trip indicator and supports reverse feed wiring.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC1150WL |
| Series | THQC |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Mounting Feet |
|---|---|
| Accessories | Lugs |
| Standards | HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Visual Trip Indicator, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
6 answersHow does the THQC1150WL mount in an electrical panel?
The THQC1150WL is designed for 35mm DIN rail mounting. It features a feed-thru, lug-to-lug connection, making it ideal for OEM control panels and specialized enclosures rather than standard residential plug-in load centers.
Why is this breaker listed as both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, the THQC1150WL may arrive with either ABB or GE branding, but the physical dimensions, mounting, and electrical specifications remain identical.
What does the WL suffix mean in the THQC1150WL catalog number?
The WL indicates that the breaker comes with factory-installed lugs on both the line and load sides for cable-in, cable-out wiring.
Can I use aluminum wire with the THQC1150WL breaker?
Yes, the terminal lugs are rated for both copper and aluminum conductors. The accepted wire range is 8 AWG to 3 AWG.
Is the THQC1150WL interchangeable with THQL or THQB breakers?
No. While they are all part of the GE Q-Line family, they have different mounting styles. THQC breakers mount on a 35mm DIN rail, THQL breakers are plug-in for residential load centers, and THQB breakers are bolt-on for commercial panelboards.
Does this breaker have an adjustable trip setting?
No, the THQC1150WL features a fixed thermal magnetic trip unit. The long-time and instantaneous trip functions are factory set and non-interchangeable.
