ABB / General ElectricTHQC1150WL
Free Shipping Over $99

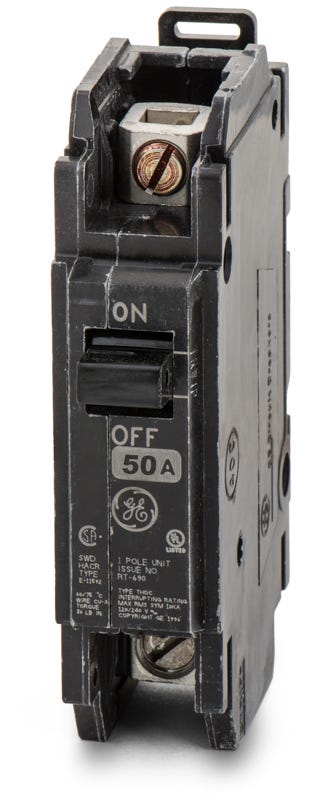

ABB / General Electric THQC1150 Molded Case Circuit Breaker
- 50A
- 1 Pole
- DIN Rail
ABB / General Electric
THQC1150
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQC1150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQC1150 - 50A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQC1150 - 50A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC1150 |
| Series | THQC |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures, Control Panels |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs |
| Standards | HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Quantity
ABB / General Electric THQC1150 - 50A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC1150-R |
| Series | THQC |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures, Control Panels |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs |
| Standards | HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTHQC1140WL
40A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC1140
40A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC1130
30A 1 Pole Molded Case Circuit Breaker
Description
Delivering 50A of continuous current capacity, the GE THQC1150 is a 1-pole molded case circuit breaker. It provides essential long-time and instantaneous trip functions for residential, commercial, and industrial electrical systems. This unit fastens securely onto standard DIN rails, offering a practical solution for OEM panels and custom enclosures. Operating at 120/240VAC with a 10kAIC interrupting capacity, it ensures robust fault protection. The breaker is HACR rated for HVAC equipment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC1150 |
| Series | THQC |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures, Control Panels |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs |
| Standards | HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
8 answersHow is the GE THQC1150 circuit breaker mounted?
The THQC1150 features a bolt-on connection with lug terminals and is designed to mount securely onto standard DIN rails. It is commonly used in OEM panels, control panels, and custom enclosures.
What types of panels or enclosures are compatible with the THQC1150?
This breaker is compatible with standard DIN rail systems, GE Q-Line enclosures, and OEM control panels that accept bolt-on miniature circuit breakers.
What wire sizes are accepted by the terminals on the THQC1150?
The lugs on this 50A breaker accept copper (Cu) or aluminum (Al) wire ranging from 8 AWG to 3 AWG.
Why might my THQC1150 breaker arrive with ABB branding instead of GE?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, the THQC1150 may feature either ABB or GE branding, but the breaker remains identical in form, fit, and function.
What type of trip mechanism does the THQC1150 use?
It utilizes a fixed thermal-magnetic trip unit, providing both long-time (thermal) protection against overloads and instantaneous (magnetic) protection against short circuits.
Is the THQC1150 suitable for use in HVAC equipment?
Yes, GE Q-Line breakers like the THQC1150 are HACR rated, making them suitable for heating, air conditioning, and refrigeration applications.
What does the LI trip function code mean on the THQC1150?
The LI designation indicates that the breaker provides Long-Time (L) and Instantaneous (I) trip functions. The long-time function protects against sustained overloads, while the instantaneous function protects against short circuits.
Is the trip unit on the THQC1150 adjustable?
No, the THQC1150 features fixed thermal and fixed magnetic trip settings. It cannot be adjusted in the field.
