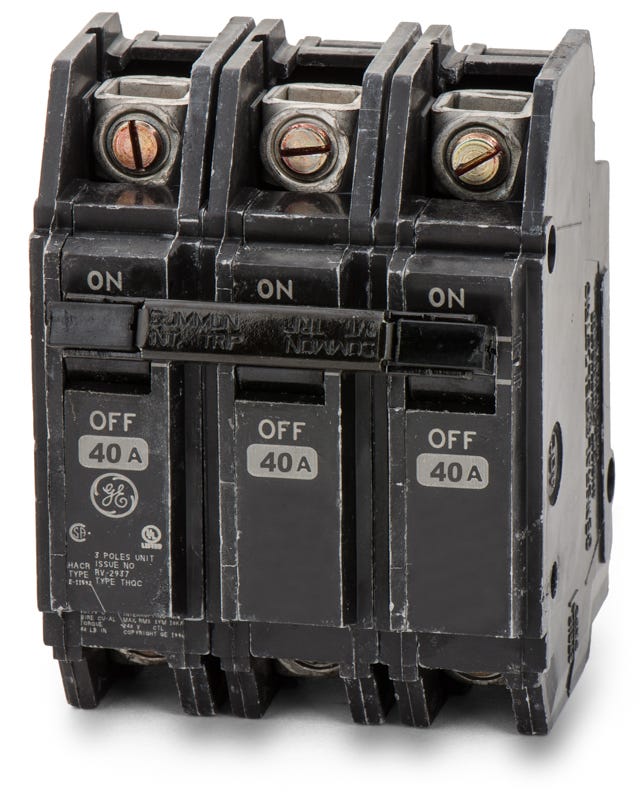

ABB / General Electric THQC32040WL Molded Case Circuit Breaker
- 40A
- 3 Pole
- DIN Rail
ABB / General Electric
THQC32040WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQC32040WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQC32040WL - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQC32040WL - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC32040WL |
| Series | THQC |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Mounting Feet |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Visual Trip Indicator, Non-Interchangeable Trip, Reverse Feed |
Sold out
Quantity
ABB / General Electric THQC32040WL - 40A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC32040WL-R |
| Series | THQC |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Mounting Feet |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Visual Trip Indicator, Non-Interchangeable Trip, Reverse Feed |
Similar Items
ABB / General ElectricTHQC32030WL
30A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC32025WL
25A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC32060WL
60A 3 Pole Molded Case Circuit Breaker
Description
Engineered for demanding commercial and industrial environments, the GE THQC32040WL provides consistent long-time and instantaneous trip functions. This 3-pole, 40A Q-Line breaker safeguards electrical infrastructure against overloads and short circuits. The lug-to-lug design allows for seamless integration into 35mm DIN rail systems, custom enclosures, and OEM panels. Providing a 10 kAIC rating at 240VAC, it utilizes an internal common trip and quick-make/quick-break mechanisms.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC32040WL |
| Series | THQC |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Mounting Feet |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Visual Trip Indicator, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
7 answersHow does the GE THQC32040WL mount inside a panel?
This breaker features a feed-thru, lug-to-lug design and mounts directly onto standard 35mm DIN rails. It is commonly used in OEM control panels and compatible enclosures rather than plugging into a standard load center busbar.
What does the WL suffix indicate on the THQC32040WL catalog number?
The WL suffix stands for With Lugs. It indicates that both the line and load lugs are factory-installed on the breaker, allowing for direct cable-in and cable-out connections.
Can I use this 3-pole THQC breaker in a standard GE residential load center?
No. The THQC32040WL is a DIN rail mounted, feed-thru breaker designed for OEM panels and specific enclosures. It does not have the plug-in or bolt-on clips required to attach to a standard GE residential load center busbar.
What type of applications is the THQC32040WL typically used for?
With its 35mm DIN rail mounting and feed-thru lug design, this 40A breaker is frequently used by panel builders for motor control circuits, industrial machinery, and custom OEM control cabinets requiring 240VAC 3-phase protection.
Does the THQC32040WL feature an internal common trip?
Yes. As part of the GE Q-Line series, this 3-pole breaker includes an internal common trip mechanism. If an overload or short circuit is detected on any single pole, all three poles will trip simultaneously to safely disconnect the circuit.
How does the THQC32040WL indicate that it has tripped?
Like other GE Q-Line breakers, it features a visual trip indicator. When a fault occurs, the handle moves to a center position, making it easy to identify a tripped breaker in a crowded control panel.
Is the trip point on the THQC32040WL adjustable?
No. This breaker features a fixed thermal magnetic trip unit. Both the long-time thermal and instantaneous magnetic trip functions are factory-set and cannot be adjusted in the field.
