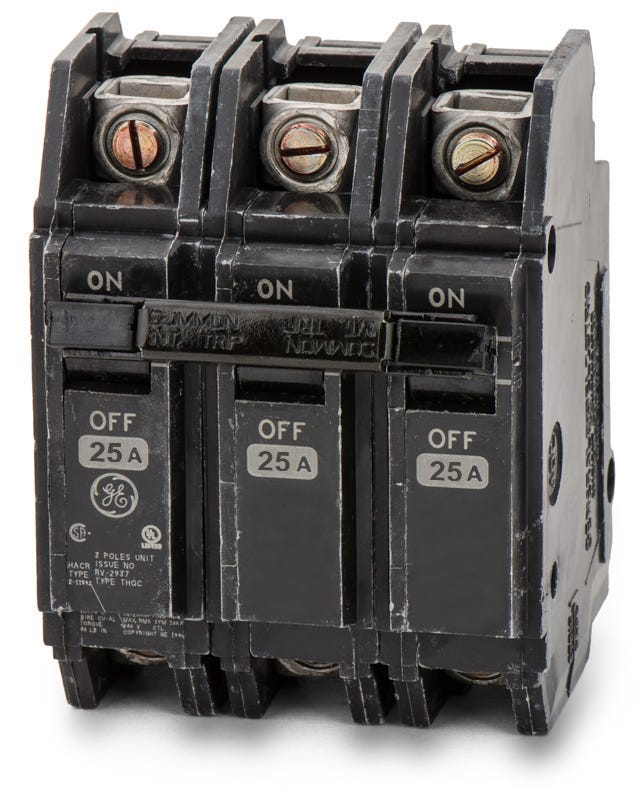

ABB / General Electric THQC32025WL Molded Case Circuit Breaker
- 25A
- 3 Pole
- DIN Rail
ABB / General Electric
THQC32025WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQC32025WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQC32025WL - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQC32020WL
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC32015WL
15A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC32040WL
40A 3 Pole Molded Case Circuit Breaker
Description
Designed for space-saving installations, the GE THQC32025WL 25A, 3-pole circuit breaker delivers robust thermal-magnetic protection. It serves as an ideal choice for industrial control panels and commercial switchboards. The lug-to-lug configuration mounts onto standard 35mm DIN rails, offering flexible integration into OEM equipment. It accepts both copper and aluminum wiring. Delivering a 10kAIC rating at 240VAC, it features a visual trip indicator and quick-make/quick-break contacts.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC32025WL |
| Series | THQC |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Visual Trip Indicator |
Product FAQs
6 answersWhat does the WL suffix mean on the THQC32025WL part number?
The WL suffix indicates that the breaker is equipped with factory-installed line and load lugs. This lug-to-lug configuration allows for direct wire connections without requiring a panel busbar.
How is the GE THQC32025WL breaker mounted in a panel?
This model is designed for base mounting or installation on a standard 35mm DIN rail. It is typically used in OEM panels, control cabinets, and compatible enclosures.
Will this breaker fit in a standard GE residential load center?
No. The THQC series features a lug-to-lug design for DIN rail or base mounting. It is not compatible with standard GE load centers, which typically require THQL plug-in or THQB bolt-on breakers.
What type of protection does the thermal-magnetic trip unit provide?
The fixed thermal-magnetic mechanism provides dual protection. It uses a bimetallic strip for a long-time thermal response to sustained overloads, and an electromagnetic coil for an instantaneous response to quickly clear short circuits.
How can I tell if the THQC32025WL has tripped?
The breaker features a quick-make, quick-break mechanism with a visual trip indicator. When a fault occurs, the handle automatically moves to a center position, making it easy to identify a tripped circuit.
Why is this breaker listed as both ABB and General Electric?
ABB acquired GE Industrial Solutions, meaning this Q-Line circuit breaker may arrive with either ABB or General Electric branding. The physical dimensions, specifications, and performance remain identical regardless of the label.
