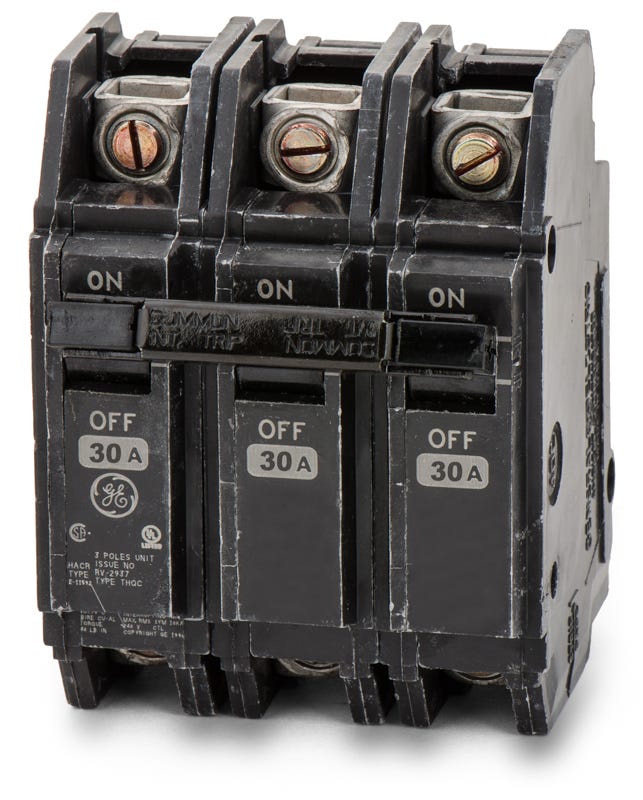

ABB / General Electric THQC32030WL Molded Case Circuit Breaker
- 30A
- 3 Pole
- DIN Rail
ABB / General Electric
THQC32030WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQC32030WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQC32030WL - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQC32030WL - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC32030WL |
| Series | THQC |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | 35mm DIN Rail, OEM Panels, Enclosures |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
ABB / General Electric THQC32030WL - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC32030WL-R |
| Series | THQC |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | 35mm DIN Rail, OEM Panels, Enclosures |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTHQC32040WL
40A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC32020WL
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC32015WL
15A 3 Pole Molded Case Circuit Breaker
Description
Offering versatile power distribution, the GE THQC32030WL 30A, 3-pole Q-Line breaker comes equipped with non-interchangeable thermal-magnetic trip elements. It provides reliable defense against overloads and short circuits. This compact device installs into 35mm DIN rail systems, making it perfect for custom enclosures and control panels. With a 10kAIC rating at 240VAC, this breaker supports reverse feed applications and includes a visual trip indicator for simplified maintenance.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC32030WL |
| Series | THQC |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | 35mm DIN Rail, OEM Panels, Enclosures |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat does the WL suffix indicate on the THQC32030WL?
The WL suffix means the breaker includes factory-installed line and load lugs. This lug-to-lug configuration allows for direct cable-in and cable-out wiring.
How is the THQC32030WL mounted in a panel?
This breaker is designed for 35mm DIN rail mounting or base mounting in OEM panels and control cabinets. It is a feed-thru breaker and does not plug into or bolt onto standard load center busbars.
Is the THQC32030WL suitable for reverse feed applications?
Yes, this breaker supports reverse feeding, allowing power to be supplied to either the line or load terminals.
Can this breaker be used to protect HVAC equipment?
Yes, the THQC32030WL is HACR rated, making it suitable for use with approved heating, air conditioning, and refrigeration systems.
How does the trip mechanism operate on this 3-pole breaker?
It utilizes a fixed thermal-magnetic trip unit with an internal common trip bar. If an overload or short circuit occurs on any single phase, the common trip ensures all three poles open simultaneously to protect connected three-phase equipment.
What is the physical footprint of the THQC32030WL?
As part of the GE Q-Line series, this breaker features a compact 1-inch per pole footprint, requiring 3 inches of total mounting space.
