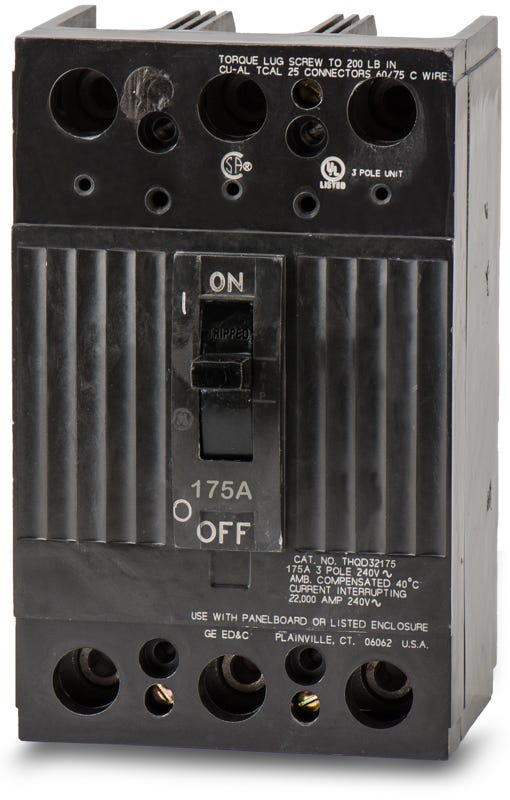

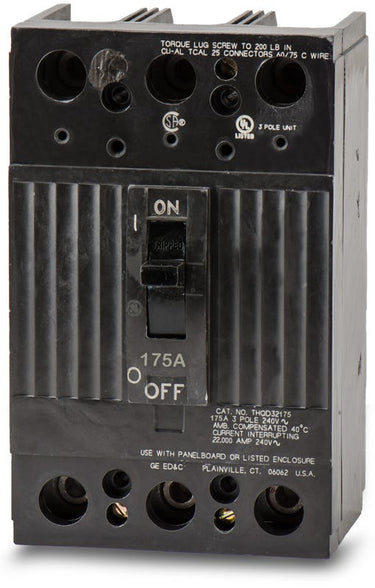

ABB / General Electric THQD32175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Bolt-On
ABB / General Electric
THQD32175
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQD32175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQD32175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQD32175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD32175 |
| Series | THQD |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity, Reverse Feed |
Quantity
ABB / General Electric THQD32175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD32175 |
| Series | THQD |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity, Reverse Feed |
Similar Items
ABB / General ElectricTHQD32175WL
175A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHLC236175
175A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHLC234175
175A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, the GE THQD32175 is a 175-amp, three-pole molded case circuit breaker. It provides robust thermal-magnetic protection for demanding electrical systems, ensuring safe power distribution. This bolt-on MCCB is specifically designed to install into GE A-Series and Spectra Series panelboards. Rated to handle up to 22kAIC at 240VAC, the breaker features a non-interchangeable trip unit with long-time and instantaneous (LI) functions.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD32175 |
| Series | THQD |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity, Reverse Feed |
Product FAQs
6 answersWhat is the difference between GE TQD and THQD circuit breakers?
The primary difference is the short-circuit interrupting rating. Standard TQD breakers typically have a 10kAIC rating at 240VAC. The "H" in THQD indicates a high interrupting capacity, rating this model for up to 22kAIC at 240VAC.
Which panelboards are compatible with the THQD32175?
This molded case circuit breaker is designed to bolt directly into GE A-Series lighting panelboards and GE Spectra Series panelboards.
Why is this breaker listed as both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. Q-Line breakers like the THQD32175 may feature either the ABB or GE logo, but they retain the exact same engineering, physical dimensions, and UL listings.
Is the trip unit on the THQD32175 adjustable?
No. This breaker is equipped with a fixed, non-interchangeable thermal-magnetic trip unit. It provides standard long-time and instantaneous overcurrent protection that cannot be adjusted in the field.
Are the terminals on the THQD32175 dual-rated for aluminum wire?
Yes, the standard factory lugs accept both copper (Cu) and aluminum (Al) conductors ranging from 4 AWG up to 300 kcmil.
Does this 3-pole breaker feature a common trip mechanism?
Yes. It utilizes an internal common trip bar. If an overload or short circuit triggers a fault on any single phase, all three poles will open simultaneously to safely disconnect power to the entire circuit.
