ABB / General Electric THQL2140GFT2 GFCI Miniature Circuit Breaker
- 40A
- 2 Pole
- Plug-On
ABB / General Electric
THQL2140GFT2
GFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL2140GFT2
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

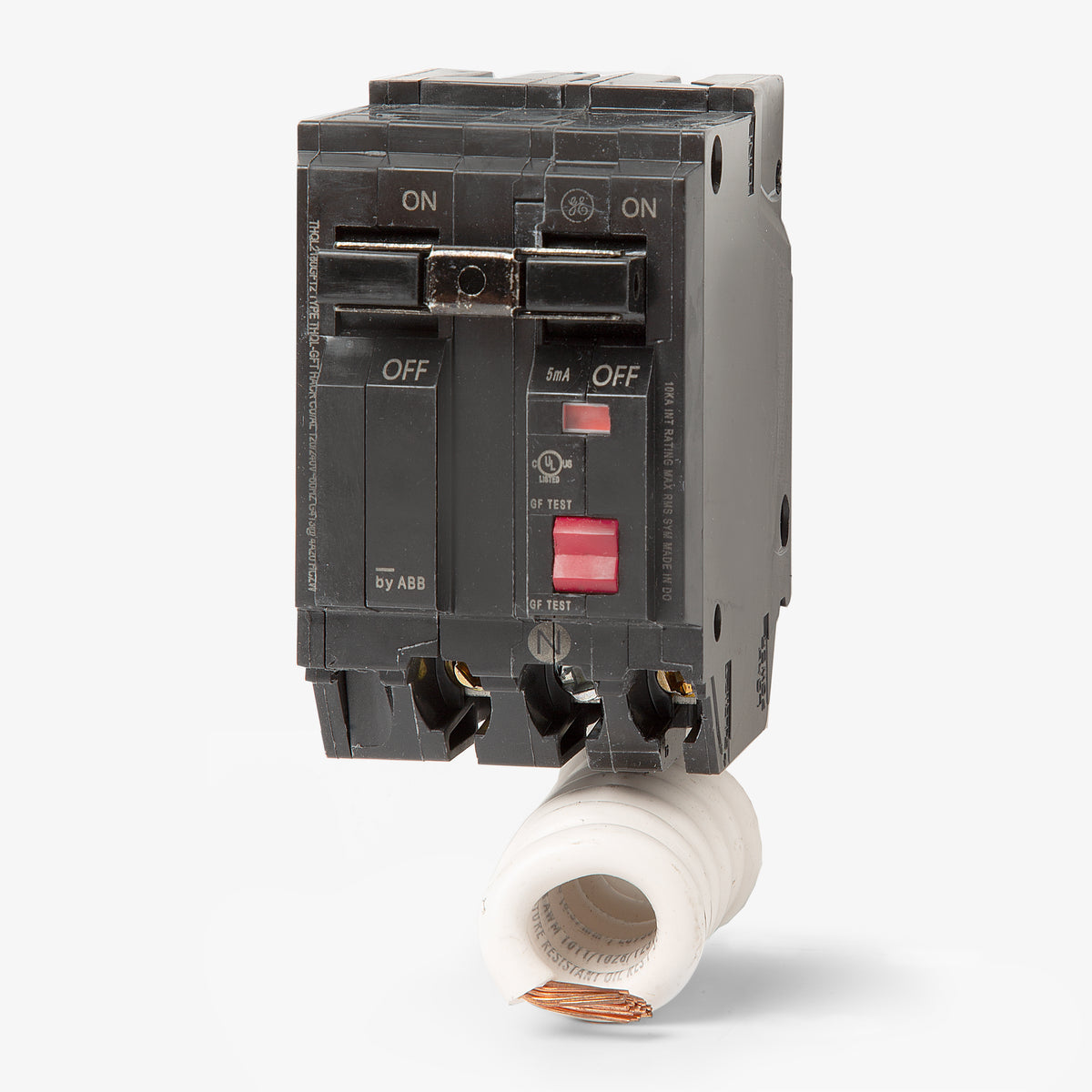

ABB / General Electric THQL2140GFT2 - 40A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQL2140GF
40A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQL2145GFT2
45A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQL2150GFT
50A GFCI Miniature Circuit Breaker
Description
Engineered for reliable personnel protection, this 40-amp ground fault interrupter utilizes a pigtail neutral connection to meet strict NEC standards for spas, pools, and outdoor circuits. The integrated self-test feature automatically verifies the internal circuitry to guarantee continuous 5mA Class A defense. Compatible with ABB ReliaHome and GE PowerMark Gold panels, it serves as an upgraded replacement for the THQL2140GFT. This thermal-magnetic unit provides a 10kAIC interrupting capacity.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | THQL |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | HACR, UL 489, UL 943 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Self-Test |
Product FAQs
7 answersWhich load centers are compatible with the THQL2140GFT2 breaker?
This breaker is designed for use in GE PowerMark Gold and ABB ReliaHome load centers that accept Q-Line plug-on breakers.
Can I use this THQL breaker in place of a THQP breaker?
No. THQL breakers are full-size, measuring 1 inch per pole, while THQP breakers are half-inch slimline breakers. They are not directly interchangeable. You must verify that your panel accepts full-size THQL breakers.
How is the neutral connected on the THQL2140GFT2?

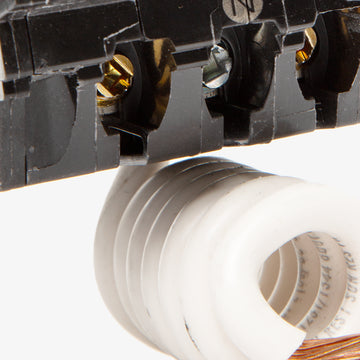

This breaker features a pigtail neutral connection. The coiled white wire must be connected directly to the neutral bus bar in the panel for the ground fault protection to function correctly.
What is the ground fault trip sensitivity for this breaker?
The THQL2140GFT2 provides Class A ground fault protection, meaning it is designed to trip when it detects a ground fault current of 5mA. This provides personnel protection for applications like spas, pools, and bathrooms.
Does this GFCI breaker include a self-test feature?
Yes, it includes an integrated self-test function that automatically runs periodic diagnostic testing on the internal circuitry to ensure the ground fault protection is working properly.
Why is this breaker listed as both ABB and General Electric?
ABB acquired GE Industrial Solutions. As a result, Q-Line breakers like the THQL2140GFT2 may be branded as either ABB or General Electric, but they are the exact same product and are fully interchangeable.
Does the THQL2140GFT2 replace older GE models?
Yes, the THQL2140GFT2 serves as a direct, upgraded replacement for the older THQL2140GFT model.
