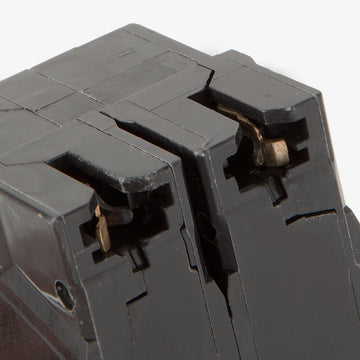

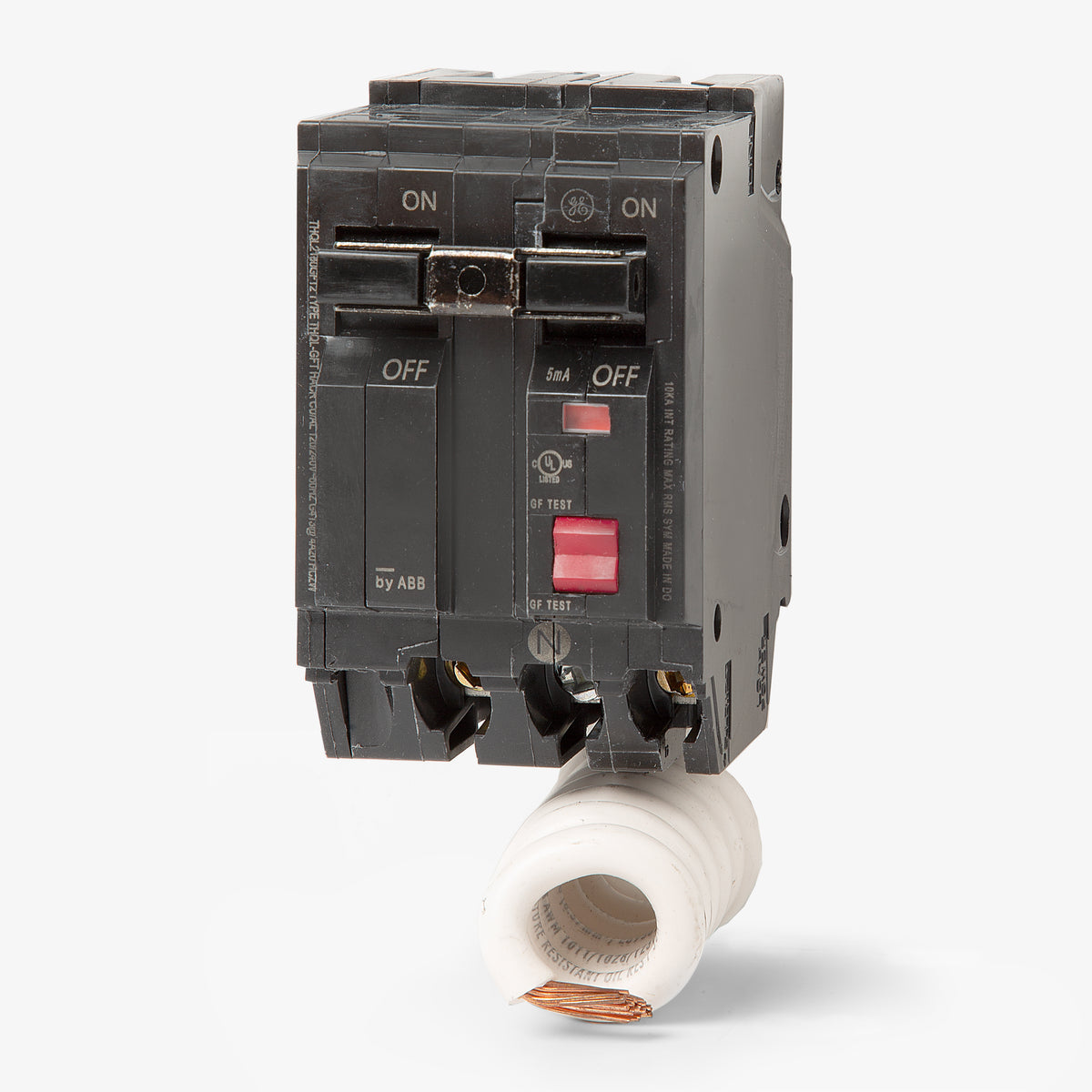

ABB / General Electric THQL2145GFT2 GFCI Miniature Circuit Breaker
- 45A
- 2 Pole
- Plug-On
ABB / General Electric
THQL2145GFT2
GFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL2145GFT2
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL2145GFT2 - 45A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQL2150GFT2
50A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQL2150GF
50A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQL2150GF1
50A GFCI Miniature Circuit Breaker
Description
Built to safeguard specialized 45-amp loads in wet or damp locations, this two-pole GFCI incorporates a pigtail neutral for secure installation. It performs automatic self-testing to ensure the Class A 5mA ground fault detection remains active and compliant with modern electrical codes. This Q-Line breaker mounts into GE PowerMark Gold, A-Series panelboards, and ABB ReliaHome load centers.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | THQL |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, GE A-Series Panelboards, ABB ReliaHome Load Centers |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | HACR, NEMA AB 1, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Self-Test |
Product FAQs
4 answersWhich load centers and panelboards are compatible with the THQL2145GFT2?
This breaker is designed for use in GE PowerMark Gold load centers, GE A-Series panelboards, and ABB ReliaHome load centers that accept 1-inch plug-on Q-Line breakers.
What level of ground fault protection does the THQL2145GFT2 provide?
It provides Class A ground fault protection, which trips at a 5mA threshold to protect personnel from electrical shock. It also features automatic self-testing to ensure the GFCI circuitry remains active and compliant with current electrical codes.

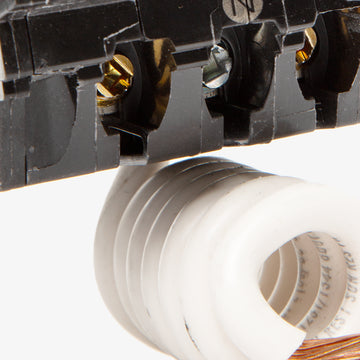

How is the neutral connection made for this GFCI breaker?
This breaker features a pigtail neutral connection. The coiled white pigtail wire must be connected directly to the panel neutral bus bar for the ground fault detection to function properly.
Is the THQL2145GFT2 manufactured by GE or ABB?
ABB acquired GE Industrial Solutions, so this breaker may be branded as either ABB or General Electric. Both brands represent the exact same Q-Line breaker and are fully interchangeable.
