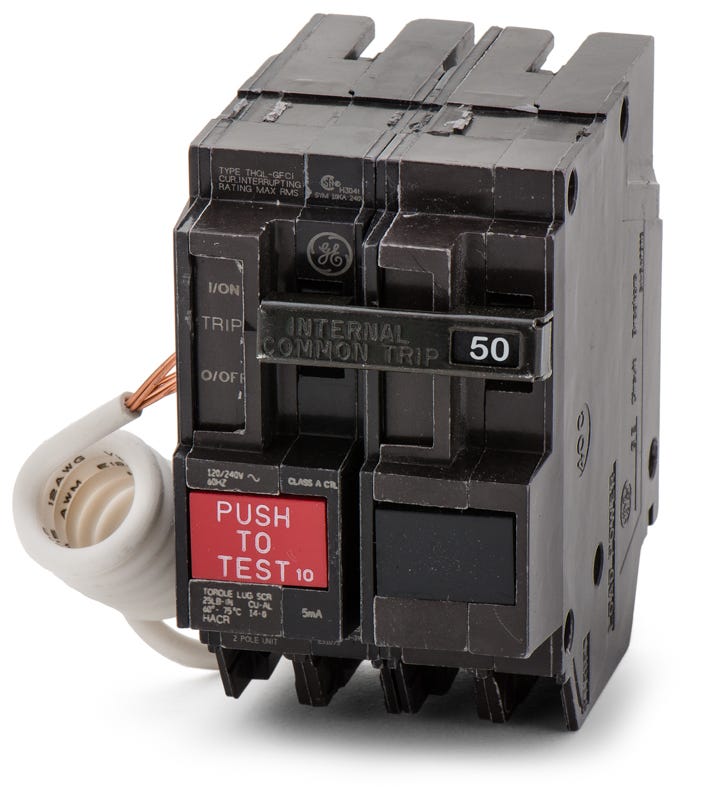

ABB / General Electric THQL2150GF GFCI Miniature Circuit Breaker
- 50A
- 2 Pole
- Plug-On
ABB / General Electric
THQL2150GF
GFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL2150GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL2150GF - 50A GFCI Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQL2150GF - 50A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2150GF |
| Series | THQL |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Shunt Trip, Auxiliary Switch |
| Accessories | Pigtail Neutral |
| Standards | HACR, NEMA AB 1, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THQL2150GF - 50A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2150GF-R |
| Series | THQL |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Shunt Trip, Auxiliary Switch |
| Accessories | Pigtail Neutral |
| Standards | HACR, NEMA AB 1, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQL2150GFT
50A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQL2150GFT2
50A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQL2145GFT2
45A GFCI Miniature Circuit Breaker
Description
Part of GE's Q-Line series, the THQL2150GF provides 50 amps of Class A 5mA ground fault protection. It installs into GE PowerMark Gold and ABB ReliaHome load centers, utilizing a standard plug-on mounting style with a pigtail neutral. Rated at 10 kAIC for 120/240V circuits, this thermal-magnetic breaker features an internal common trip and quick-make/quick-break mechanism. It serves as a reliable replacement for older installations and is replaced by the self-testing THQL2150GFT.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2150GF |
| Series | THQL |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Shunt Trip, Auxiliary Switch |
| Accessories | Pigtail Neutral |
| Standards | HACR, NEMA AB 1, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Product FAQs
5 answersWhich load centers are compatible with the THQL2150GF breaker?
This breaker installs into GE PowerMark Gold and ABB ReliaHome load centers that accept standard 1-inch per pole plug-on breakers.
What is the ground fault trip threshold for the THQL2150GF?
This unit provides Class A ground fault protection, meaning it is calibrated to trip when it detects a ground fault current of 5mA.
How does the THQL2150GF connect to the panel neutral?
This GFCI breaker utilizes a factory-installed pigtail neutral wire. The pigtail must be routed and secured directly to the neutral bus bar in the load center for the ground fault detection circuitry to function.
Is there a self-testing alternative to the THQL2150GF?
Yes, the THQL2150GFT is the direct self-testing replacement. It includes automatic internal diagnostics to verify the 5mA Class A protection remains fully operational in compliance with updated NEC standards.
Can the THQL2150GF replace legacy GE 50A GFCI breakers?
Yes, this model serves as a direct replacement for older legacy part numbers, including the THQL2150GF1.
