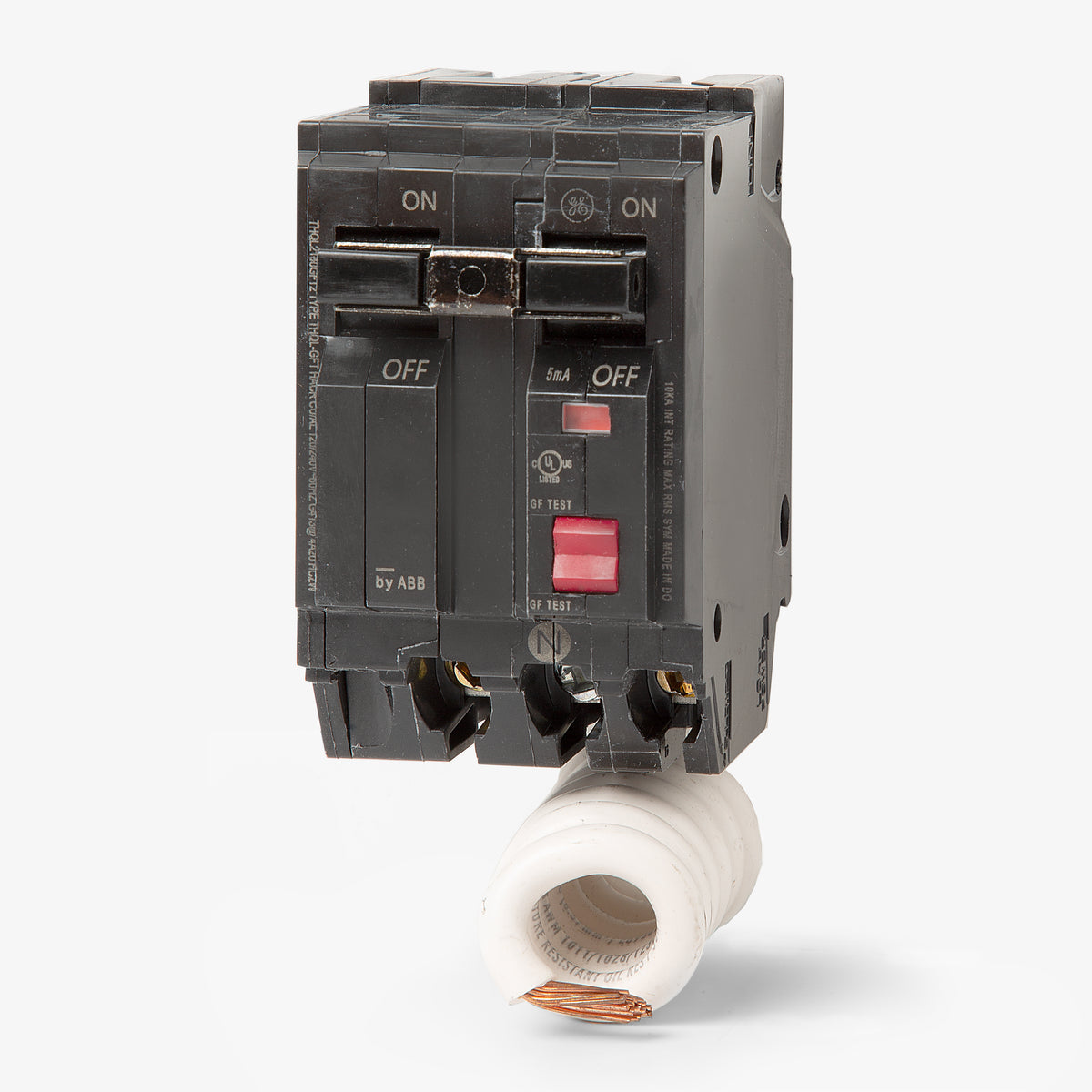

ABB / General Electric THQL2150GFT2 GFCI Miniature Circuit Breaker
- 50A
- 2 Pole
- Plug-On
ABB / General Electric
THQL2150GFT2
GFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL2150GFT2
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL2150GFT2 - 50A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQL2150GF
50A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQL2150GF1
50A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQL2145GFT2
45A GFCI Miniature Circuit Breaker
Description
Built to meet strict NEC requirements for damp locations, this 50A GFCI breaker delivers reliable personnel protection. Designed as an updated replacement for the THQL2150GFT, this plug-on unit fits seamlessly into GE PowerMark Gold, A-Series, and ABB ReliaHome load centers. Rated for 10kAIC at 120/240VAC, it incorporates an internal common trip and quick-make/quick-break action. The integrated self-test feature periodically checks the electronics to ensure continuous safety.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | THQL |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, GE A-Series Panelboards, ABB ReliaHome Load Centers |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | HACR, NEMA AB 1, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Self-Test |
Product FAQs
6 answersWhich electrical panels are compatible with the THQL2150GFT2 breaker?
This breaker is designed for use in GE PowerMark Gold load centers, GE A-Series panelboards, and ABB ReliaHome load centers that accept 1-inch THQL plug-in breakers.
How many panel spaces does the THQL2150GFT2 require?
As a 2-pole Q-Line breaker, it requires two standard 1-inch spaces in your load center.
What level of ground fault protection does this breaker provide?
The THQL2150GFT2 provides Class A ground fault protection, which trips at a 5mA threshold to protect personnel from electrical shock. It also includes a built-in self-test feature to ensure the GFCI circuitry is functioning correctly.
How is the neutral connection wired on this GFCI breaker?

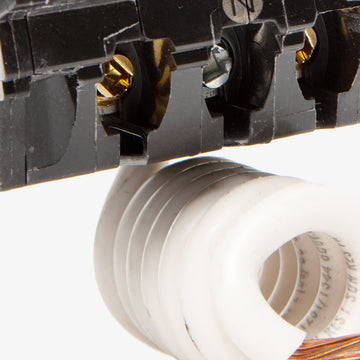

This breaker features a pigtail neutral connection. The coiled white pigtail wire must be connected directly to the panel's neutral bus bar for the ground fault protection to operate properly.
Is there a difference between the ABB and GE versions of the THQL2150GFT2?
No. ABB acquired GE Industrial Solutions, so breakers marked as ABB THQL2150GFT2 or GE THQL2150GFT2 are the exact same product and are fully interchangeable.
What wire sizes are accepted by the lugs on the THQL2150GFT2?
The box lugs accept 8 AWG to 3 AWG copper or aluminum wire.
