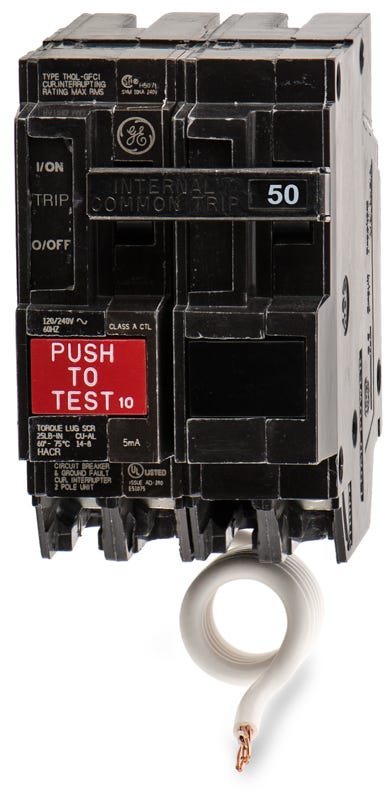

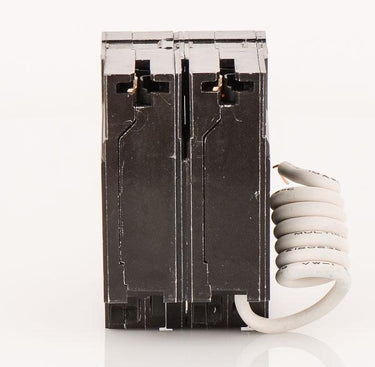

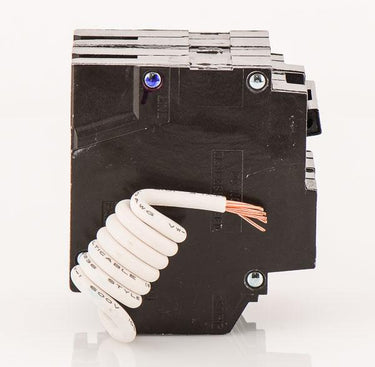

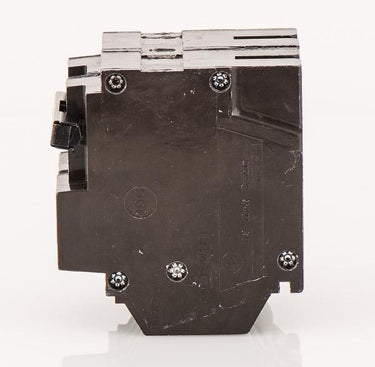

ABB / General Electric THQL2150GF1 GFCI Miniature Circuit Breaker
- 50A
- 2 Pole
- Plug-On
ABB / General Electric
THQL2150GF1
GFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL2150GF1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL2150GF1 - 50A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQL2150GF
50A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQL2150GFT2
50A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQL2145GFT2
45A GFCI Miniature Circuit Breaker
Description
Delivering Class A 5mA ground fault protection, the THQL2150GF1 handles 50A on 120/240V systems. It easily mounts into GE PowerMark Gold, GE A-Series panelboards, and ABB ReliaHome load centers using a standard plug-on connection. With a 10 kAIC rating, this Q-Line breaker provides essential safety for wet and damp locations as required by the NEC. It features an internal common trip and serves as a reliable component for residential or commercial electrical upgrades.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2150GF1 |
| Series | THQL |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE PowerMark Gold Load Centers, GE A-Series Panelboards, ABB ReliaHome Load Centers |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | HACR, NEMA AB 1, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Class A Ground Fault Protection (5mA) |
Product FAQs
6 answersWhich electrical panels are compatible with the THQL2150GF1?
This plug-on breaker is designed for use in GE PowerMark Gold load centers, GE A-Series panelboards, and ABB ReliaHome load centers.
What level of ground fault protection does the THQL2150GF1 offer?
It provides Class A 5mA ground fault protection, which is designed to protect personnel from electrical shock in wet or damp locations.
Is the THQL2150GF1 interchangeable with the THQL2150GFT?
Yes. The THQL2150GFT is the newer, direct replacement for the legacy THQL2150GF1 and THQL2150GF models. The T suffix designates the addition of an automatic self-test feature required by updated UL standards, but they share the same physical dimensions and panel compatibility.
How is the neutral connection handled on this GFCI breaker?
The THQL2150GF1 features a pigtail neutral wire that must be connected directly to the neutral bus bar in your load center to ensure the ground fault circuitry functions correctly.
What wire sizes do the box lugs on this 50A breaker accept?
The terminals are rated to accept 8 AWG to 3 AWG copper or aluminum wiring.
Is this breaker suitable for systems with high fault currents?
The THQL2150GF1 has a maximum interrupting rating of 10kAIC at 120/240VAC. It should not be installed in systems that require a higher short-circuit current rating.
