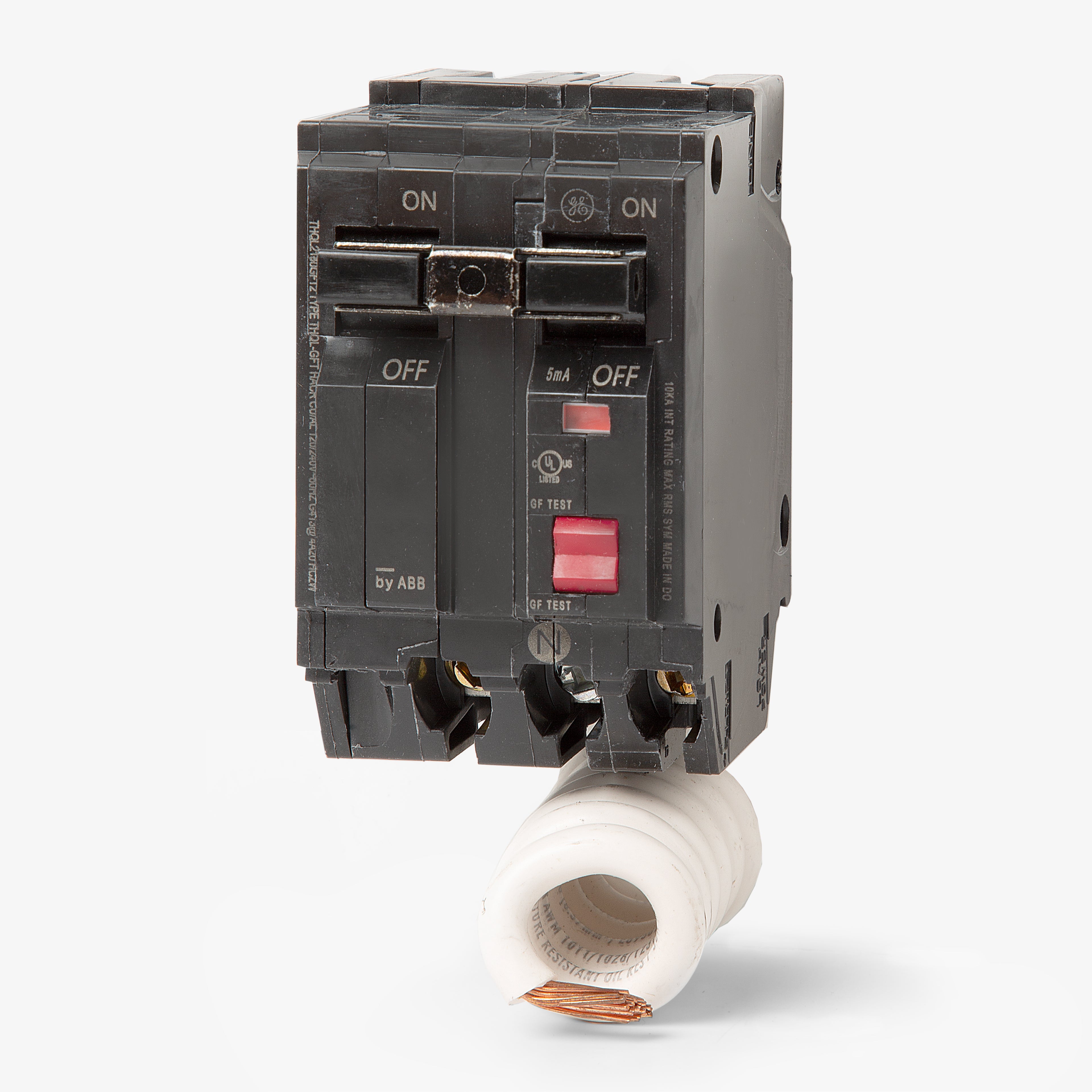

ABB / General Electric THQL2160GFT2 GFCI Miniature Circuit Breaker
- 60A
- 2 Pole
- Plug-On
ABB / General Electric
THQL2160GFT2
GFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL2160GFT2
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL2160GFT2 - 60A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQL2150GFT2
50A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQL2150GF
50A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQL2150GF1
50A GFCI Miniature Circuit Breaker
Description
Providing critical 5mA Class A protection, this 60A ground-fault circuit interrupter actively monitors electrical circuits to prevent severe shocks in areas prone to moisture. This two-pole plug-on breaker is compatible with GE PowerMark Gold and ABB ReliaHome load centers, replacing legacy THQL2160GF and THQL2160GFT models. With a 10kAIC rating at 120/240VAC, the unit features a factory-installed pigtail neutral, HACR certification, and an automatic self-test function for code compliance.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | THQL |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Self-Test |
Product FAQs
6 answersWhat level of ground fault protection does the THQL2160GFT2 provide?
This breaker provides 5mA Class A ground fault protection. It is designed for personnel protection to prevent severe electrical shock in locations prone to moisture.
Does this GFCI breaker include a self-test feature?
Yes, it features automatic self-testing functionality. The breaker periodically runs internal diagnostic checks to ensure the ground fault circuitry is functioning properly, complying with UL 943 requirements.
How is the neutral connection handled during installation?

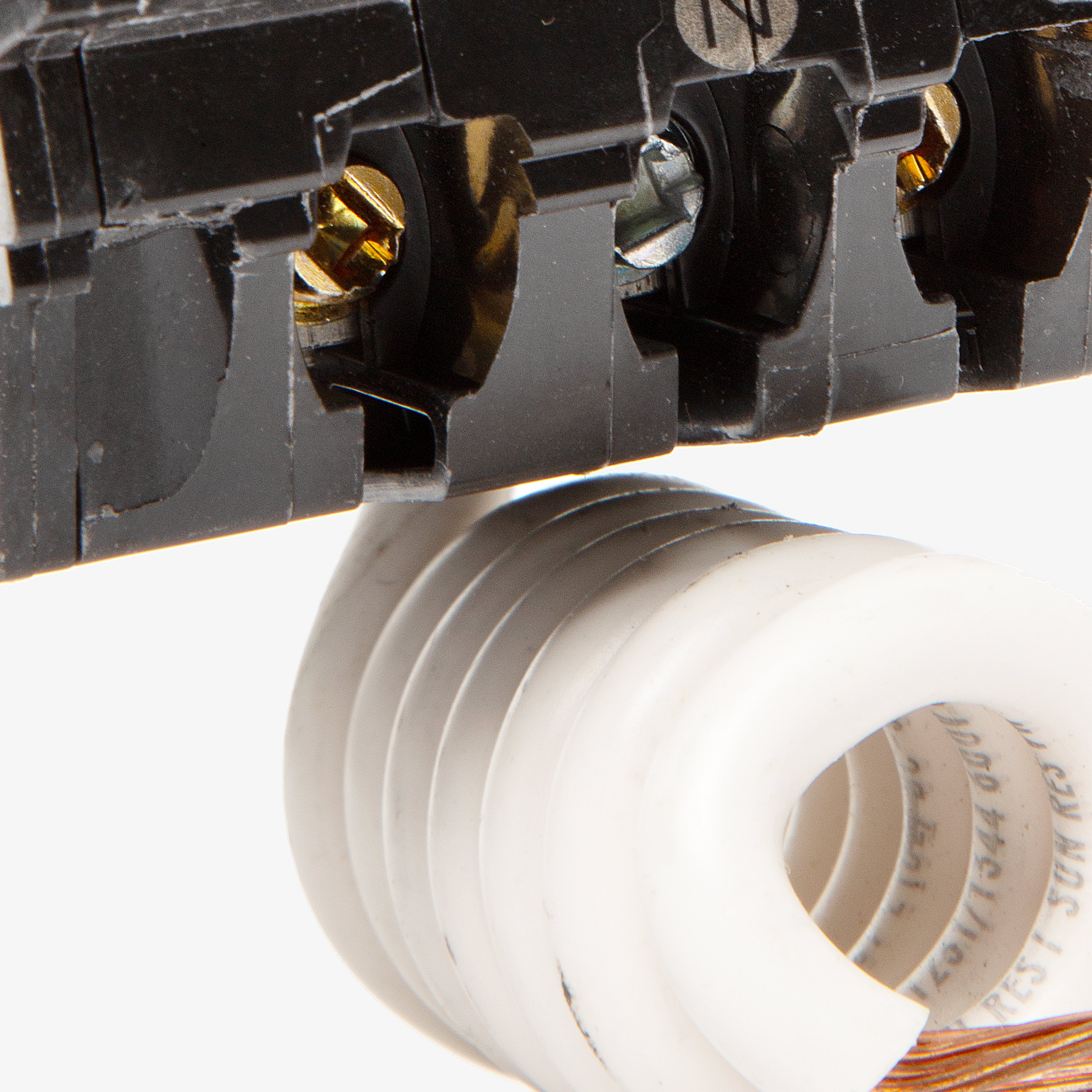

The THQL2160GFT2 is equipped with a factory-installed pigtail neutral wire. This pigtail must be connected directly to the panel neutral bar for the ground fault detection circuitry to operate correctly.
Is a load neutral required for straight 240V applications?
For 2-pole 240V circuits without a neutral load, you do not need to connect a load neutral to the breaker. However, the breaker pigtail neutral must still be landed on the panel neutral bar to power the internal GFCI circuitry.
Which load centers are compatible with this GFCI breaker?
It is designed for installation in GE PowerMark Gold and ABB ReliaHome load centers that accept 1-inch THQL plug-on circuit breakers.
What legacy GE breakers does the THQL2160GFT2 replace?
This model serves as a direct replacement for older GE catalog numbers THQL2160GF and THQL2160GFT.
