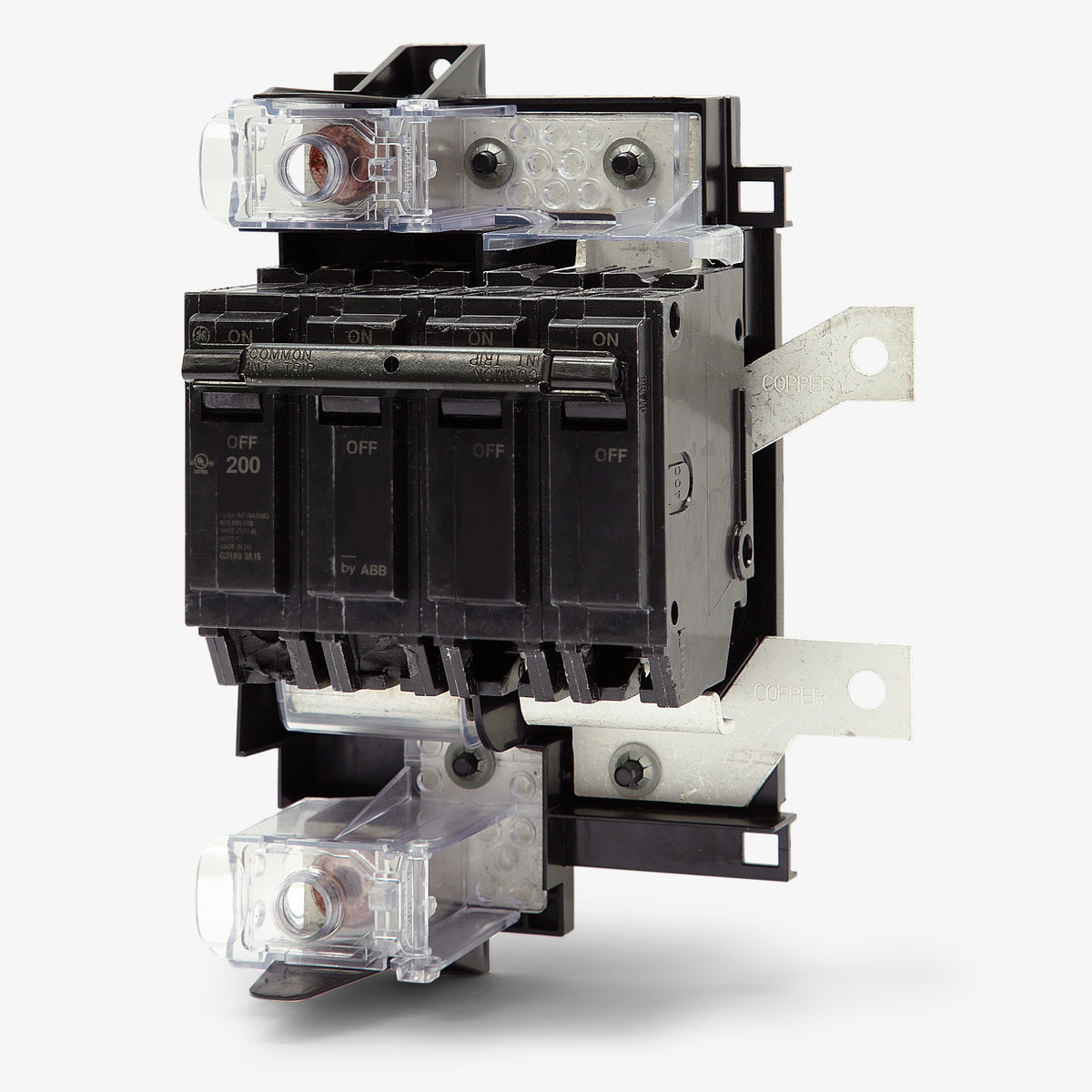

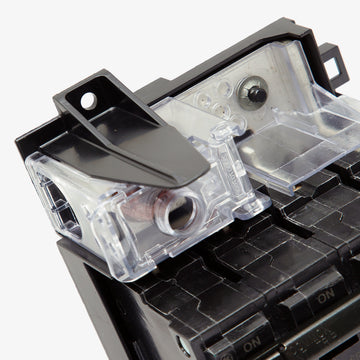

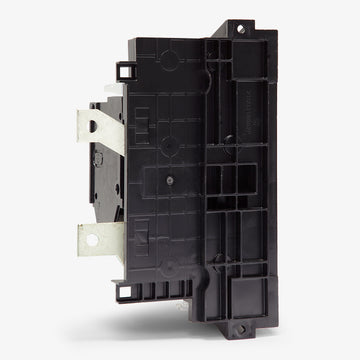

ABB / General Electric THQMV200E Molded Case Circuit Breaker
- 200A
- 2 Pole
- Plug-On
ABB / General Electric
THQMV200E
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQMV200E
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQMV200E - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQMV200D
200A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQMV225E
225A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQMV225D
225A 2 Pole Molded Case Circuit Breaker
Description
A drop-in replacement for legacy models, the THQMV200E is a 2-pole, 200A main circuit breaker from GE. It provides essential protection for residential and commercial electrical systems. This plug-on breaker mounts into GE PowerMark Gold, ABB ReliaHome, and PowerMark PRO load centers. It serves as an exact substitute for the discontinued THQMV200 and THQMV200D breakers. Featuring a 22 kAIC rating at 240VAC, it ensures excellent short-circuit protection.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQMV200E |
| Series | THQMV |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE PowerMark Gold Load Centers (150A-225A), ABB ReliaHome Load Centers, ABB PowerMark PRO Load Centers |
| Wire Gauge | 1 AWG - 300 kcmil (Cu), 2/0 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG (Cu), 2/0 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Mounting Base, Lugs Not Included |
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 60C, 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Load Center Main |
Product FAQs
4 answersWhich load centers accept the THQMV200E main breaker?
This breaker is designed for use as a main breaker in 150A to 225A GE PowerMark Gold, ABB ReliaHome, and ABB PowerMark PRO convertible load centers.
Can the THQMV200E replace older GE THQMV series breakers?
Yes, the THQMV200E serves as an exact drop-in replacement for the discontinued THQMV200 and THQMV200D main circuit breakers.
Can this breaker be installed in bottom-feed configurations?
Yes, the vertical handle orientation allows the THQMV200E to be mounted for either top-feed or bottom-feed applications without requiring any modifications.
Is the THQMV200E used as a main or branch breaker?
This specific model is configured as a plug-on main circuit breaker for compatible convertible load centers. It includes the necessary main breaker kit assembly and is not used as a standard branch breaker.
