ABB / General ElectricTHQMV225E
Free Shipping Over $99

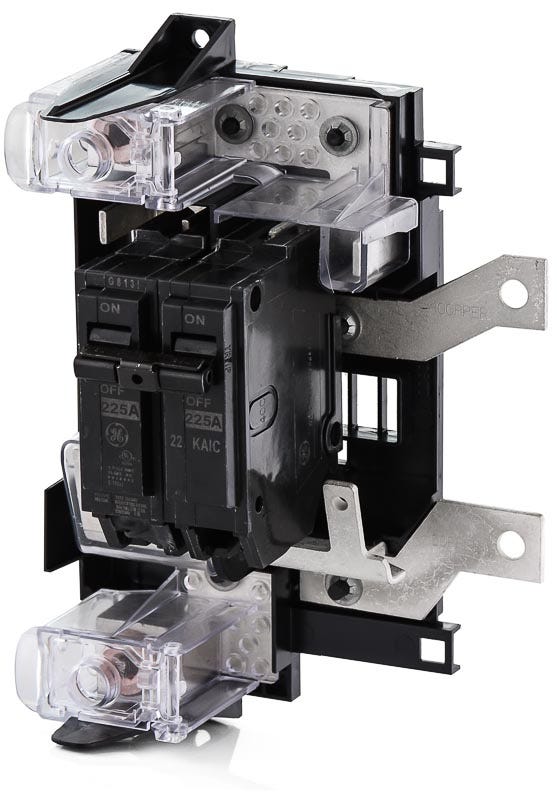

ABB / General Electric THQMV225D Molded Case Circuit Breaker
- 225A
- 2 Pole
- Plug-On
ABB / General Electric
THQMV225D
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQMV225D
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQMV225D - 225A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQMV200D
200A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQMV200E
200A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQMV200WL
200A 2 Pole Molded Case Circuit Breaker
Description
Built for residential and commercial applications, the GE THQMV225D is a 2-pole, 225A main circuit breaker. It provides essential thermal-magnetic protection with a 22kAIC rating at 120/240VAC, ensuring safe electrical distribution for high-capacity service entrances. This plug-on main breaker kit installs into GE PowerMark Gold load centers rated between 150A and 225A.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQMV225D |
| Series | THQMV |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers (150A-225A) |
| Wire Gauge | 1 AWG - 300 kcmil (Cu), 2/0 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG (Cu), 2/0 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Mounting Base, Line Side Lugs Included, Mounting Hardware |
| Standards | UL 489, RoHS Compliant |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | Main Breaker, Common Trip, Quick-Make/Quick-Break, HACR Rated, High Interrupting Capacity, Reverse Feed |
Product FAQs
6 answersWhat load centers are compatible with the THQMV225D?
This main breaker kit is designed for use in GE PowerMark Gold convertible load centers rated between 150A and 225A.
Will the THQMV225D arrive with GE or ABB branding?
Following ABB's acquisition of GE Industrial Solutions, this breaker may ship with either ABB or GE branding. The product is identical in form, fit, and function regardless of the label.
Does the THQMV225D include the mounting base?
Yes, this complete main circuit breaker kit includes the mounting base required to convert a main lug PowerMark Gold panel to a main breaker configuration.
Can the THQMV225D be used as a branch breaker?
No, this unit is specifically designed as a main circuit breaker for service entrances and cannot be installed as a standard plug-on branch breaker.
Can I install the THQMV225D in a 125A load center?
No, this 225A main breaker kit is only compatible with PowerMark Gold load centers rated for 150A to 225A. It is not designed for 125A or smaller enclosures.
Does this breaker require a separate hold-down retainer?
Because it mounts directly to the included main breaker base rather than plugging onto the branch bus, a separate back-fed hold-down kit is not required.
