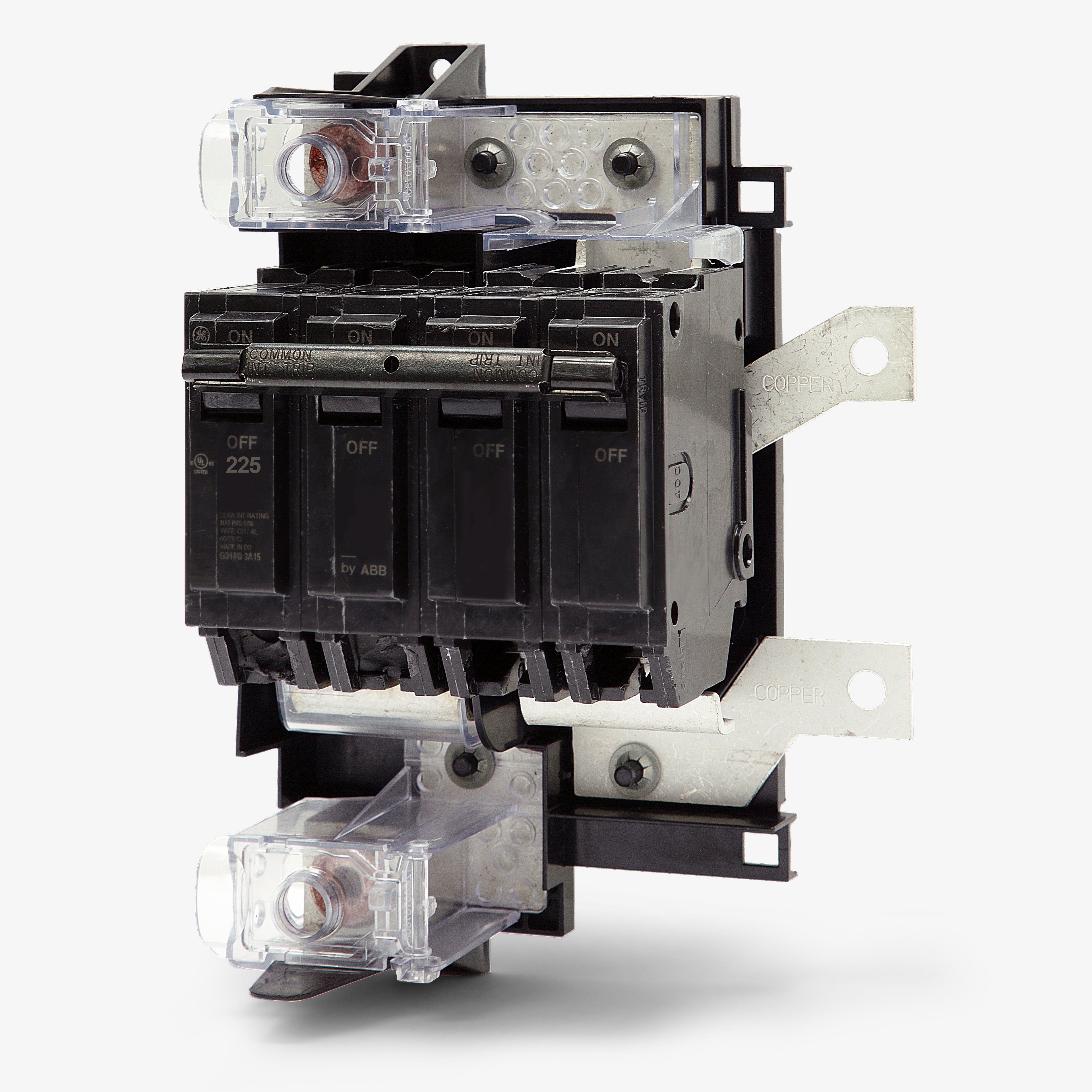

ABB / General Electric THQMV225E Molded Case Circuit Breaker
- 225A
- 2 Pole
- Plug-On
ABB / General Electric
THQMV225E
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQMV225E
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQMV225E - 225A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQMV200E
200A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQMV200WL
200A 2 Pole Molded Case Circuit Breaker

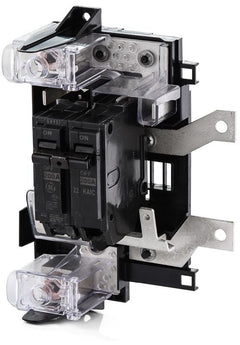

ABB / General ElectricTHQMV200D
200A 2 Pole Molded Case Circuit Breaker
Description
Designed as the modern replacement for the THQMV225D, the GE THQMV225E is a 2-pole, 225A main circuit breaker. It delivers robust thermal-magnetic protection with a 22kAIC interrupting capacity for residential and commercial service entrances. This plug-on unit mounts into GE PowerMark Gold, ABB ReliaHome, and PowerMark PRO load centers rated for 150A to 225A. It serves as the official substitute for legacy THQMV225 and THQMV225D breakers, ensuring seamless panel upgrades.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQMV225E |
| Series | THQMV |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE PowerMark Gold Load Centers (150A-225A), ABB ReliaHome Load Centers, ABB PowerMark PRO Load Centers |
| Wire Gauge | 1 AWG - 300 kcmil (Cu), 2/0 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG (Cu), 2/0 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Mounting Base, Lugs Not Included |
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Load Center Main |
Product FAQs
5 answersWhich load centers accept the THQMV225E main breaker?
This unit installs into 150A to 225A convertible load centers within the GE PowerMark Gold, ABB ReliaHome, and ABB PowerMark PRO series.
Is the THQMV225E a direct replacement for the THQMV225D?
Yes, the THQMV225E serves as the official, modern substitute for legacy THQMV225 and THQMV225D main breakers in GE and ABB panels.
What conductors are compatible with the THQMV225E lugs?
The factory lugs accept 1 AWG to 300 kcmil copper or 2/0 AWG to 300 kcmil aluminum conductors. Installers must ensure the enclosure provides adequate wire bending space for larger cables.
Will the THQMV225E match my existing GE panel if it arrives with ABB branding?
Yes. Following ABB's acquisition of GE Industrial Solutions, the THQMV225E is manufactured to the exact same specifications. It is fully interchangeable and UL listed for the same enclosures regardless of whether the label says ABB or GE.
Is the 22kAIC rating sufficient for a main service entrance?
A 22,000 AIC rating at 240VAC exceeds the standard 10kAIC requirement for many residential applications, making it suitable for locations closer to utility transformers where higher available fault currents are present.
