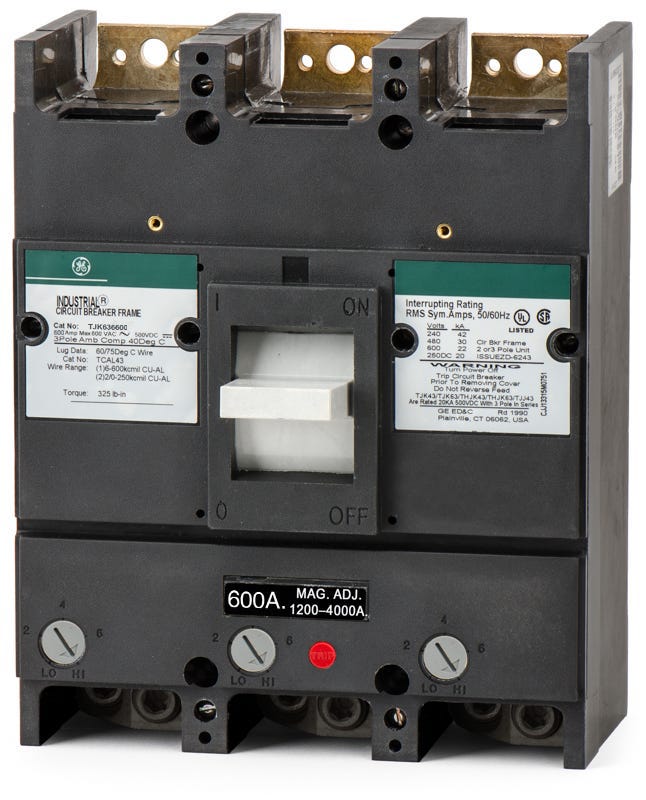

ABB / General Electric TJK636600 Molded Case Circuit Breaker
- 600A
- 3 Pole
- Unit Mount
ABB / General Electric
TJK636600
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TJK636600
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TJK636600 - 600A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTJK636500WL
500A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJK636500
500A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJK636450
450A 3 Pole Molded Case Circuit Breaker
Description
A core component of GE's legacy J-Frame family, the TJK636600 is a 3-pole, 600A molded case circuit breaker. It utilizes an interchangeable thermal-magnetic trip unit, offering fixed long-time and adjustable instantaneous (LI) protection. Designed for unit-mount configurations, this breaker fits GE A-Series and J600 panelboards. Facilities looking to modernize can transition to the XT5N600 with a retrofit kit. Lugs are not included. It delivers a 30 kAIC interrupting rating at 480VAC.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJK636600 |
| Series | TJK |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | TJK |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE J600 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | (2) 4/0 AWG-350 kcmil (Cu) or (2) 300-500 kcmil (Al) |
| Max Wire | 500 kcmil |
| Min Wire | 4/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs (TCAL63) |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit |
Product FAQs
5 answersWhich panelboards and enclosures are compatible with the TJK636600?
This unit mount breaker is designed for installation in GE A-Series and J600 panelboards, as well as compatible GE switchboards and motor control centers.
What are the standard lug wire size requirements for this breaker?
The standard terminals accept two conductors per phase. For copper wire, the range is 4/0 AWG to 350 kcmil. For aluminum wire, the range is 300 kcmil to 500 kcmil.
How does the adjustable magnetic trip function operate on the TJK636600?
While the thermal overload protection is fixed at 600 amps, the magnetic trip is adjustable. This allows electricians to fine-tune the instantaneous short-circuit pickup threshold to coordinate with other protective devices in the system.
What type of protection does the LI trip function provide?
The LI designation indicates Long-Time and Instantaneous protection. Long-Time handles sustained overloads by heating a bimetallic strip, while the Instantaneous function uses a magnetic coil to trip immediately during high-fault short circuits.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. Legacy GE molded case circuit breakers, including the J-Frame TJK series, are now managed under the ABB brand portfolio.
