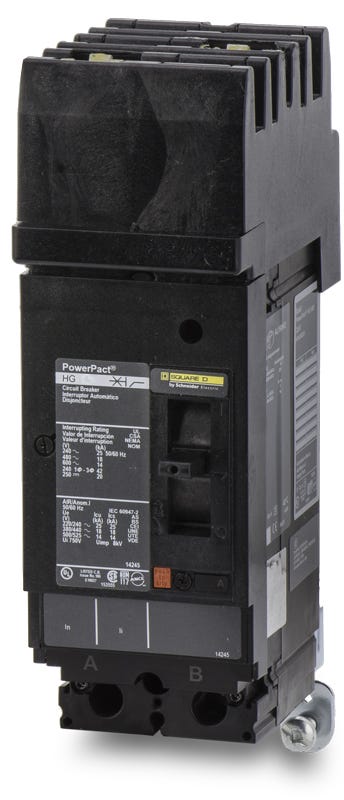

Square D HGA260902 Molded Case Circuit Breaker
- 90A
- 2 Pole
- I-Line
Square D
HGA260902
Molded Case Circuit Breaker
Brand
Square D
SKU
HGA260902
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HGA260902 - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
90A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Square D HGA260902 is a 2-pole, 90A molded case circuit breaker from the PowerPacT H-Frame family. It provides reliable thermal-magnetic protection for demanding electrical systems. This unit mounts into Square D I-Line panelboards, serving as a replacement for legacy FA26090AC and FH26090AC breakers. Featuring an AC phase connection and a 65kAIC rating at 240V, this current-limiting breaker includes factory-installed load side lugs.Specifications
| Brand | Square D |
|---|---|
| Part Number | HGA260902 |
| Series | HGA |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
8 answersWhat type of panelboards accept the HGA260902 circuit breaker?
This breaker is designed exclusively for Square D I-Line panelboards and switchboards. It features an I-Line plug-on connection on the line side and standard lugs on the load side, making it incompatible with standard bolt-on or load center panels.
How does the I-Line connection work on this breaker?
The I-Line mounting system uses a plug-on design for the line side, allowing the breaker to snap directly onto the panelboard bus assembly. The load side utilizes standard mechanical lugs for your outgoing wire terminations.
Is the HGA260902 suitable for reverse-fed applications?
Yes, this thermal-magnetic breaker is suitable for reverse feeding. Because it does not contain an electronic trip unit with directional sensitivity, you can safely supply power to either the line or load terminals.
What protection does the LI trip function provide?
The LI designation stands for Long-Time and Instantaneous trip functions. Long-Time provides overload protection by tripping when current exceeds the rating for a sustained period, while Instantaneous offers short-circuit protection by tripping immediately during a massive current spike.
Can I adjust the trip settings on the HGA260902?
This breaker features a fixed thermal setting for overload protection, which cannot be changed from its 90A rating. However, it includes an adjustable magnetic trip setting, allowing you to fine-tune the instantaneous short-circuit response to suit your specific application.
Do I need to change the lugs to use aluminum wiring?
No, the factory-installed mechanical lugs on the load side are dual-rated for both aluminum and copper conductors. They accept wire sizes from 14 AWG up to 3/0 AWG.
Does this 2-pole breaker require a neutral connection?
No, this is a 2-pole thermal-magnetic breaker designed to protect two ungrounded hot conductors. It does not require a neutral connection for its internal trip mechanisms to function properly.
What interrupting rating tier does the G in HGA260902 represent?
In the Square D PowerPacT H-Frame series, the G designates the specific interrupting capacity tier. For this model, it indicates a rating of 65 kA at 240V AC, 35 kA at 480V AC, and 18 kA at 600V AC.
