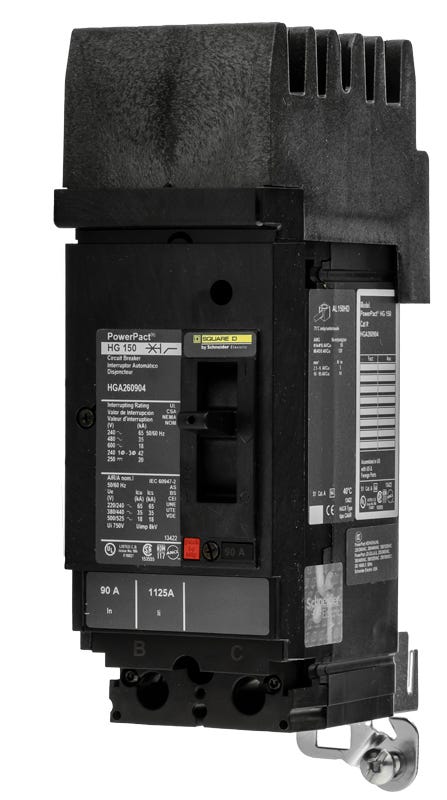

Square D HGA260904 Molded Case Circuit Breaker
- 90A
- 2 Pole
- I-Line
Square D
HGA260904
Molded Case Circuit Breaker
Brand
Square D
SKU
HGA260904
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HGA260904 - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
90A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
Built to handle heavy-duty distribution, this 90A, 2-pole PowerPacT H-Frame MCCB delivers robust thermal-magnetic protection. The Square D HGA260904 is designed for commercial and industrial facilities requiring dependable power management. It installs into Square D I-Line panelboards and switchboards, effectively replacing older FA26090BC and FH26090BC models. Equipped with a BC phase connection, this current-limiting breaker offers a 65kAIC interrupt capacity at 240VAC and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Series | HGA |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Product FAQs
6 answersWhat equipment is the HGA260904 circuit breaker designed to fit?
This breaker is built specifically for Square D I-Line panelboards and switchboards. It utilizes a plug-on I-Line connection on the line side to attach directly to the bus, with mechanical lugs on the load side.
Which legacy Square D breakers does the HGA260904 replace?
This PowerPacT H-frame breaker effectively replaces older FA and FH series I-Line breakers with a BC phase connection, including the FA26090BC and FH26090BC models.
What are the accepted wire sizes for the load lugs on the HGA260904?
The factory-installed mechanical lugs (part number AL150HD) accept either copper or aluminum conductors ranging from 14 AWG to 3/0 AWG.
Can the HGA260904 be used to backfeed an I-Line panelboard?
Yes, this breaker is suitable for reverse-fed applications. It can be used as a backfed main breaker to energize the panelboard bus from a generator or secondary source, provided it is properly labeled and secured per NEC guidelines.
Are the trip settings adjustable on the HGA260904?
No, this breaker features a standard thermal-magnetic trip unit with fixed long-time and fixed instantaneous trip functions. It does not offer adjustable trip dials.
Does the HGA260904 support DC voltage systems?
Yes, in addition to its AC ratings, this thermal-magnetic breaker is fully rated for DC power systems. It provides a 20 kA interrupting capacity at both 250 VDC and 500 VDC.
