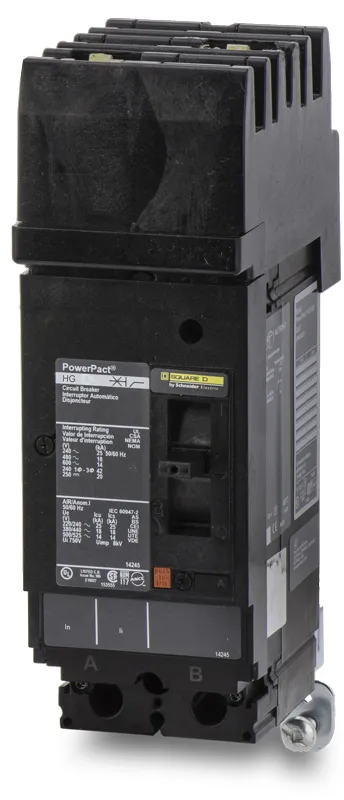

Square D HGA261001 Molded Case Circuit Breaker
- 100A
- 2 Pole
- I-Line
Square D
HGA261001
Molded Case Circuit Breaker
Brand
Square D
SKU
HGA261001
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HGA261001 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D HGA261001 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HGA261001 |
| Series | HGA |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
Square D HGA261001 - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | HGA |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip |
Similar Items
100A 2 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
Description
A dependable solution for power distribution, the Square D HGA261001 is a 100A, 2-pole molded case circuit breaker. Part of the PowerPacT H-Frame series, it utilizes thermal-magnetic trip technology for consistent performance. The breaker fits into Square D I-Line panelboards and switchboards, acting as an exact cross-reference for FA26100 and FH26100 units. It features an AB phase connection, a 65kAIC rating at 240V, and the exclusive Visi-Trip indicator for quick fault identification.Specifications
| Brand | Square D |
|---|---|
| Part Number | HGA261001 |
| Series | HGA |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersCan the HGA261001 replace older legacy I-Line breakers?
Yes, the HGA261001 is the direct replacement for legacy 100A, 2-pole FA, FH, and KH frame I-Line breakers, including the FA26100, FH26100, and KH26100AB. It fits into the same Square D I-Line panelboards and switchboards.
What is the recommended tightening torque for the lugs on this breaker?
The standard AL150HD mechanical lugs accept 14 AWG to 3/0 AWG aluminum or copper wire and should be torqued to 44.25 lbf-in (5 N.m).
Is the trip unit on the HGA261001 adjustable?
Yes, this breaker features a thermal-magnetic trip unit with fixed thermal protection for overloads and an adjustable magnetic trip setting for short-circuit protection.
How does the I-Line mounting system work for the HGA261001?
The breaker features plug-on jaws on the line side that engage directly with the I-Line busbar. A mechanical bracket mechanism secures the breaker to the panelboard, requiring a screwdriver for installation.
What does the G in the HGA261001 part number indicate?
The G designates the interrupting capacity tier within the PowerPacT H-Frame series. It provides a 65kAIC rating at 240VAC, 35kAIC at 480VAC, and 18kAIC at 600VAC.
What phase connection does the HGA261001 use on the busbar?
The 1 at the end of the HGA261001 catalog number indicates it is configured for an AB phase connection on the I-Line bus.
How can I manually test the tripping mechanism on this breaker?
All PowerPacT H-Frame circuit breakers are equipped with an integral push-to-trip button on the front cover, allowing you to manually trip the breaker to verify the mechanism is functioning correctly.
