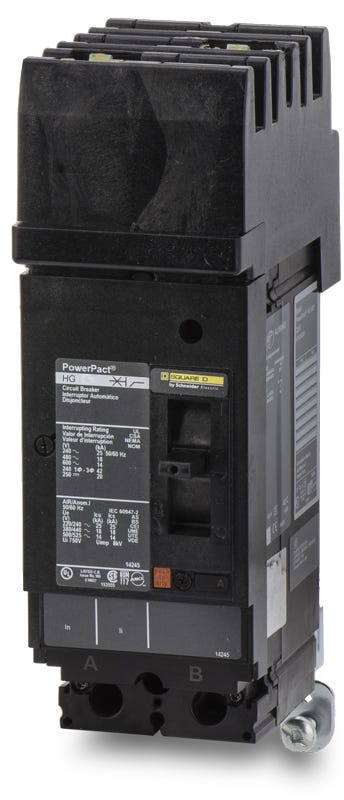

Square D HGA260901 Molded Case Circuit Breaker
- 90A
- 2 Pole
- I-Line
Square D
HGA260901
Molded Case Circuit Breaker
Brand
Square D
SKU
HGA260901
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HGA260901 - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
90A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
Designed for robust power distribution, the Square D HGA260901 is a 2-pole, 90A molded case circuit breaker. This PowerPacT H-frame unit features fixed thermal and adjustable magnetic trip settings for precise LI protection. It seamlessly installs into Square D I-Line panelboards and switchboards. Facility managers can use this to replace discontinued FA26090AB and FH26090AB breakers. The device offers an AB phase connection, Visi-Trip indicator, and a 35kAIC rating at 480VAC.Specifications
| Brand | Square D |
|---|---|
| Series | HGA |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | AB Phase Connection (Suffix 1) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Non-Interchangeable Trip, Reverse Feed, 80% Rated, Phase Connection AB |
Product FAQs
8 answersWhich legacy Square D breakers does the HGA260901 replace?
The PowerPacT H-frame HGA260901 is the direct, modern replacement for discontinued F-frame breakers, specifically the FA26090AB and FH26090AB I-Line models.
What does the 1 suffix in the HGA260901 catalog number mean?
The 1 at the end of the part number indicates an AB phase connection. When installed in an I-Line panelboard, the breaker's line-side jaws will connect specifically to the A and B phases of the busbar.
How is the HGA260901 installed in a panelboard?
It utilizes an I-Line plug-on connection for the line side, where the jaws snap directly onto the panelboard bus and a built-in bracket screws into the backpan for secure mounting. The load side uses standard mechanical lugs for wire termination.
How does the trip unit on the HGA260901 operate?
It features a thermal-magnetic trip unit that provides fixed thermal protection for long-time overloads and an adjustable magnetic dial to fine-tune the instantaneous short-circuit trip threshold.
What does the G in the HGA260901 part number signify?
The G designates the interrupting rating tier within the PowerPacT H-frame family, indicating a standard-high breaking capacity that sits above the base D tier and below the higher-rated J and L tiers.
Can the HGA260901 be used as a back-fed main breaker?
Yes, this breaker is rated for reverse-fed applications. Because it is an I-Line breaker, its built-in mounting bracket and retaining screw inherently secure it to the panelboard, satisfying the NEC requirement for fastening back-fed mains without needing an additional hold-down kit.
Is the HGA260901 HACR rated?
Yes, this breaker is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration equipment that requires specialized motor-circuit protection.
What is the maximum frame size for the HGA260901?
It is built on the Square D PowerPacT H-frame, which has a maximum capacity of 150 amps, though this specific breaker is factory-calibrated for a 90-amp continuous load.
