Square D QO340GFI GFCI Miniature Circuit Breaker
- 40A
- 3 Pole
- Plug-On
Square D
QO340GFI
GFCI Miniature Circuit Breaker
Brand
Square D
SKU
QO340GFI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO340GFI - 40A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
30A GFCI Miniature Circuit Breaker
20A GFCI Miniature Circuit Breaker
15A GFCI Miniature Circuit Breaker
Description

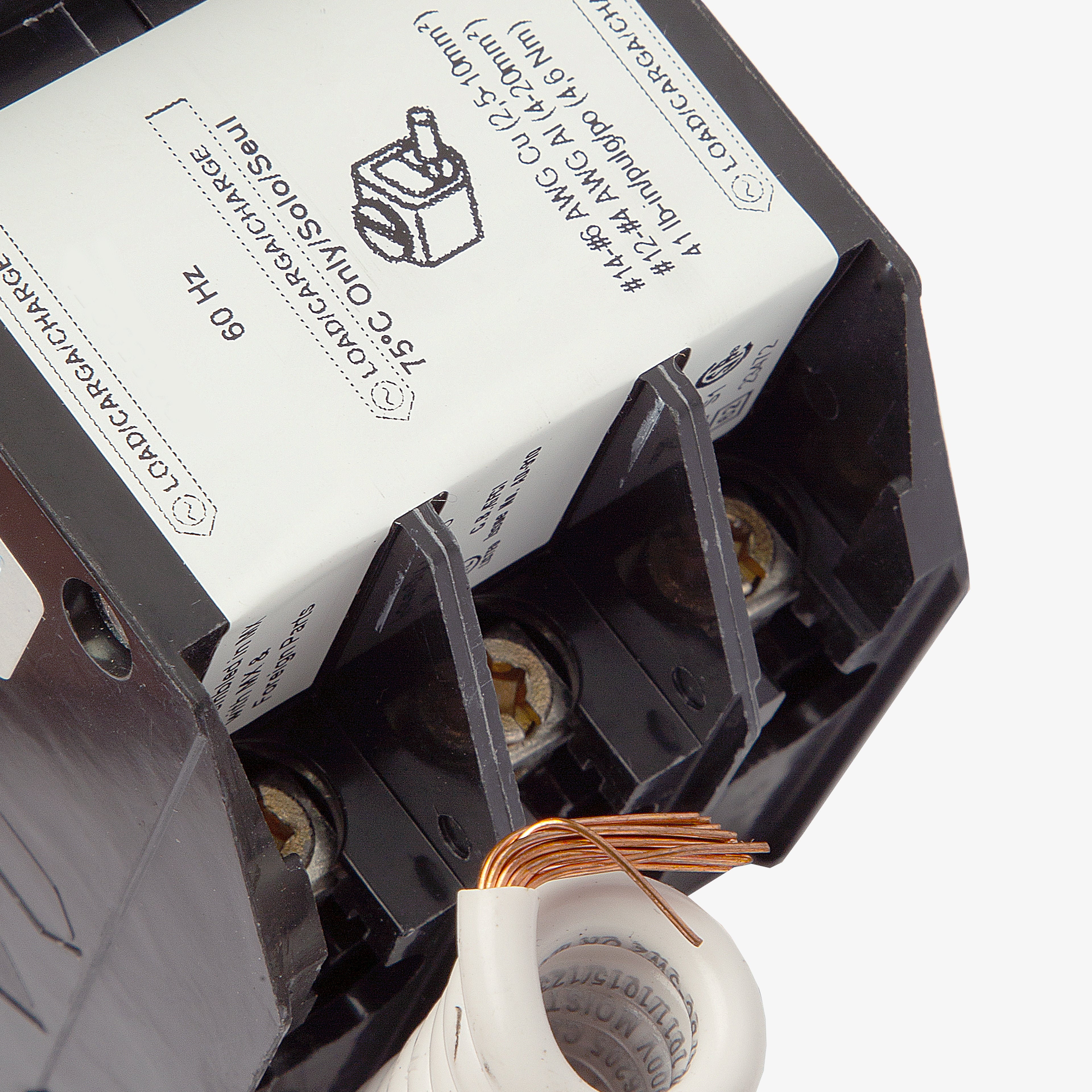

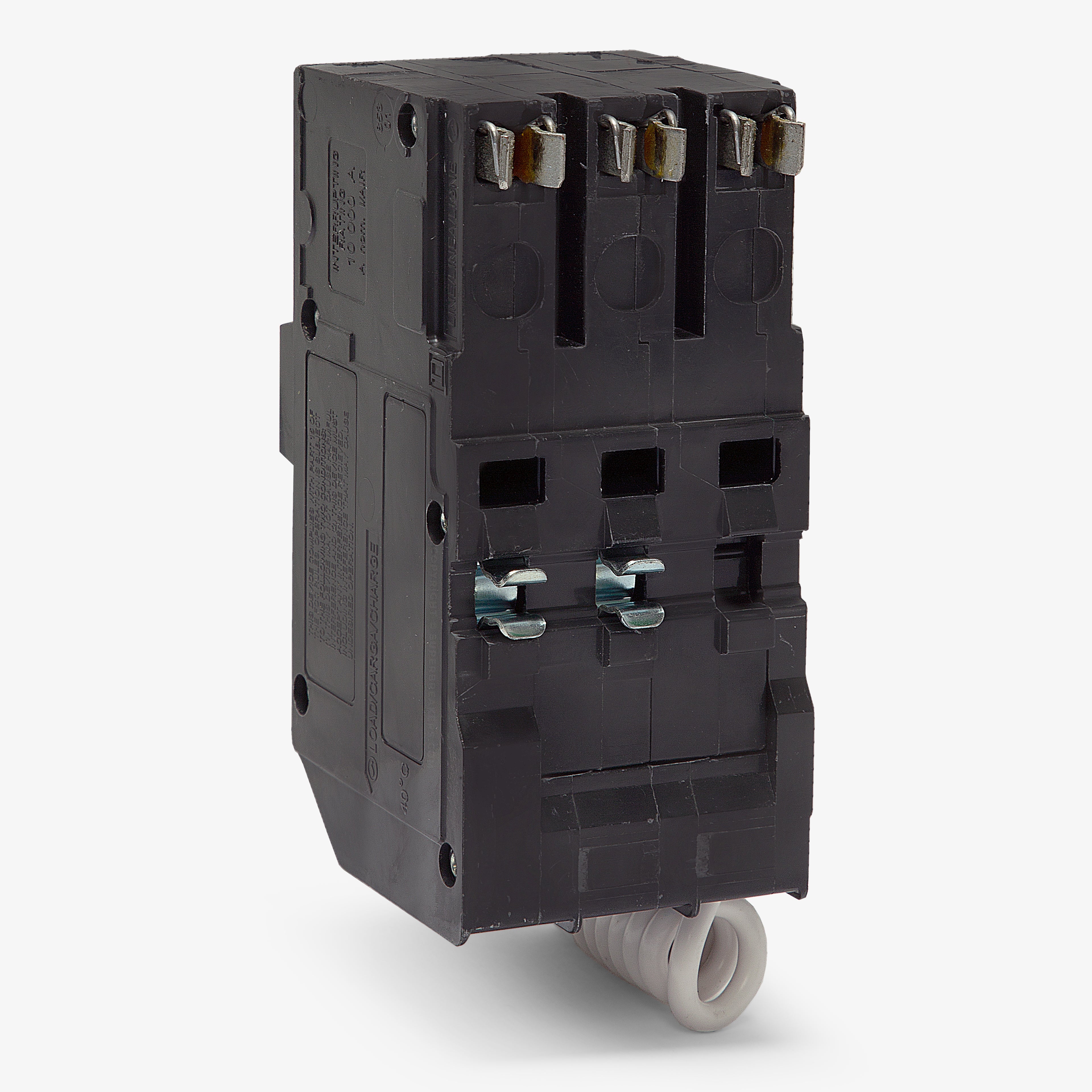

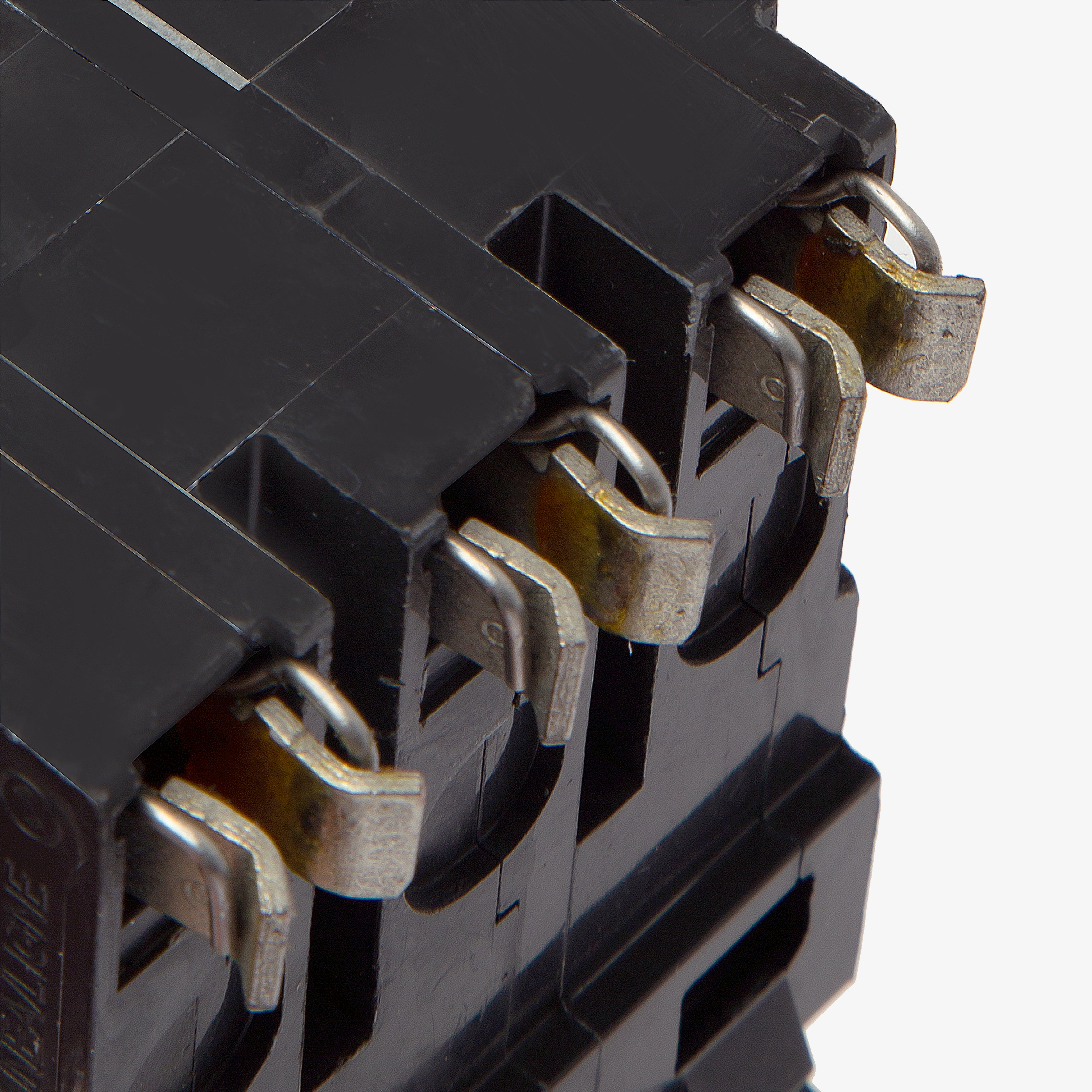

Providing robust 40A capacity, this three-pole GFCI device delivers critical 6mA personnel protection for 208Y/120V commercial systems. It incorporates a pigtail neutral wire and the highly visible Visi-Trip flag to quickly identify tripped circuits during maintenance. Compatible with QO load centers, NQ, and legacy NQOD panelboards, the unit utilizes a standard plug-on mounting style. Upgraded box lug terminals accommodate larger 14-6 AWG copper or 12-4 AWG aluminum wiring.Specifications
| Brand | Square D |
|---|---|
| Series | QO |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 208Y/120VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Product FAQs
7 answersCan I install the QO340GFI in a Square D Homeline load center?
No. QO series breakers are not interchangeable with Homeline panels. This breaker is designed exclusively for Square D QO load centers, NQ panelboards, and NQOD panelboards.
How many panel spaces does this 3-pole breaker require?
The QO340GFI requires three standard 3/4-inch spaces in a compatible QO or NQ/NQOD panel.
How is the neutral connection made for the ground fault protection?
This breaker features a pigtail neutral. The coiled white wire must be connected directly to the panel's neutral bus bar for the GFCI circuitry to function correctly.
What type of electrical system is this breaker designed for?
As a 3-pole breaker rated for 208Y/120VAC, it is intended for use in 3-phase, 4-wire grounded systems.
What is the ground fault trip sensitivity for this breaker?
The QO340GFI provides Class A ground fault protection, meaning it is designed to trip when it detects a ground fault current of 6 mA or higher to protect personnel.
Does this breaker provide a visual indication if it trips?
Yes, it features Square D's Visi-Trip indicator. When the breaker trips due to an overcurrent or ground fault, a highly visible red indicator appears in the window to help quickly identify the tripped circuit.
Is there a bolt-on equivalent for this breaker?
Yes, for applications requiring a bolt-on connection, such as in NQOB panelboards, the equivalent model is the QOB340GFI.
