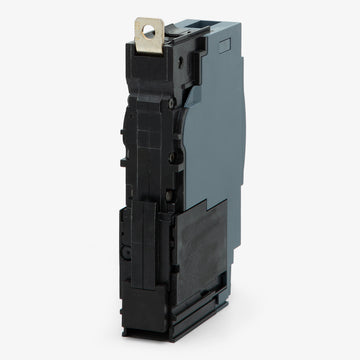

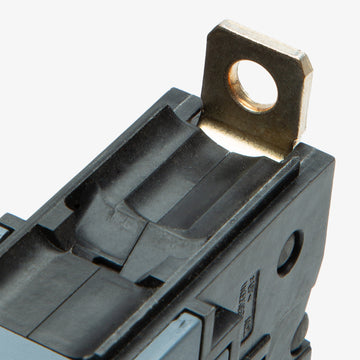

Siemens 3VA4125-6ED14-0AA0 Molded Case Circuit Breaker
- 25A
- 1 Pole
- Panel Mount
Siemens
3VA4125-6ED14-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4125-6ED14-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4125-6ED14-0AA0 - 25A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
20A 1 Pole Molded Case Circuit Breaker
40A 1 Pole Molded Case Circuit Breaker
50A 1 Pole Molded Case Circuit Breaker
Description
Designed for high-capacity fault protection, the 3VA4125-6ED14-0AA0 is a 1-pole, 25A molded case circuit breaker from the SENTRON 3VA4 frame group. It utilizes fixed thermal and magnetic trip elements to deliver precise LI protection. This panel-mount MCCB integrates into Siemens P1 through P5 panelboards and switchboards. It is engineered to replace legacy LGB1B025B breakers. Rated for 150kA at 120VAC, this current-limiting breaker is HACR and HID rated, and supports reverse feed.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Panel Mount |
| Voltage | 120VAC, 277VAC, 347VAC |
| Phase | 1 |
| AIC Rating | 150kA @ 120VAC, 65kA @ 277VAC, 25kA @ 347VAC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, HID Rated |
Product FAQs
6 answersWhich panelboards are compatible with the Siemens 3VA4125-6ED14-0AA0?
This panel-mount molded case circuit breaker integrates directly into Siemens P1, P2, P3, P4, and P5 panelboards, as well as compatible Siemens switchboards.
Can the 3VA4125-6ED14-0AA0 replace older Siemens breakers?
Yes, this 3VA41 frame breaker is engineered to replace legacy Siemens LGB1B025B circuit breakers in existing electrical systems.
Is the Siemens 3VA4125-6ED14-0AA0 suitable for HVAC or lighting applications?
Yes, this 25A breaker is HACR rated for heating, air conditioning, and refrigeration equipment. It is also HID rated for high-intensity discharge lighting circuits and supports reverse feed applications.
What wire sizes are accepted by the terminals on the 3VA4125-6ED14-0AA0?

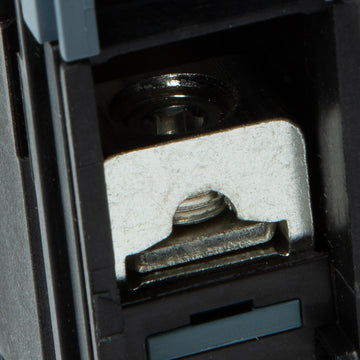

The preinstalled load-side lugs on this breaker accept 14 AWG to 8 AWG copper or aluminum (Cu/Al) conductors.
What type of trip unit is installed in the 3VA4125-6ED14-0AA0?
It features a factory-preset TM210 thermal-magnetic trip unit. This provides fixed long-time (thermal) and fixed instantaneous (magnetic) LI protection without requiring additional configuration.
What is the maximum interrupting capacity of this 25A breaker?
The 3VA4125-6ED14-0AA0 features a Class H breaking capacity. It is rated to safely clear fault currents up to 150kA at 120V AC, 65kA at 277V AC, and 25kA at 347V AC.
