Siemens 3VA4130-6ED14-0AA0 Molded Case Circuit Breaker
- 30A
- 1 Pole
- Panel Mount
Siemens
3VA4130-6ED14-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4130-6ED14-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4130-6ED14-0AA0 - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
50A 1 Pole Molded Case Circuit Breaker
Description
Built to manage severe electrical faults, this 30A single-pole molded case circuit breaker delivers an ultra-high 150kAIC interrupting capacity at 120VAC. It provides essential long-time and instantaneous protection for heavy-duty industrial applications. The panel-mount design is compatible with a wide range of Siemens infrastructure, including P1, P2, P3, P4, and P5 panelboards. It serves as an exact cross-reference for the discontinued LGB1B030B, featuring HACR and HID ratings.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Panel Mount |
| Voltage | 120VAC, 277VAC, 347VAC |
| Phase | 1 |
| AIC Rating | 150kA @ 120VAC, 65kA @ 277VAC, 25kA @ 347VAC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CE, CSA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, HID Rated |
Product FAQs
6 answersWhich Siemens panelboards are compatible with the 3VA4130-6ED14-0AA0 circuit breaker?
This bolt-on breaker is designed for use in Siemens P1, P2, P3, P4, and P5 panelboards, as well as compatible Siemens switchboards.

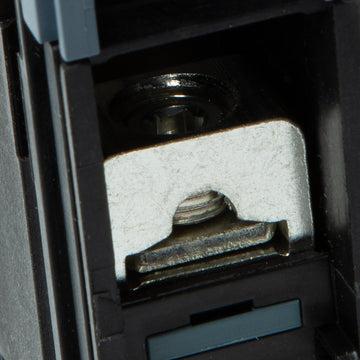

What wire sizes are accepted by the standard lugs on this 30A breaker?
The factory-installed lugs accept 14 AWG to 8 AWG copper or aluminum conductors.
What does the LI trip function indicate on this 3VA4 breaker?
The LI designation means the thermal-magnetic trip unit provides Long-Time (thermal) and Instantaneous (magnetic) protection. Both the thermal and magnetic trip points are fixed on this specific model.
What frame size does the 3VA4130-6ED14-0AA0 belong to?
This breaker is part of the Siemens 3VA41 frame group, which has a maximum physical frame rating of 125A, though this specific unit is factory-set with a 30A continuous current rating.
Can the 3VA4130-6ED14-0AA0 replace older Siemens breakers?
Yes, this 3VA4 series breaker serves as a direct cross-reference and replacement for the discontinued Siemens LGB1B030B circuit breaker.
Can this breaker be DIN rail mounted?
No, the 3VA4130-6ED14-0AA0 is a bolt-on circuit breaker designed specifically for panel mount applications in Siemens distribution equipment.
