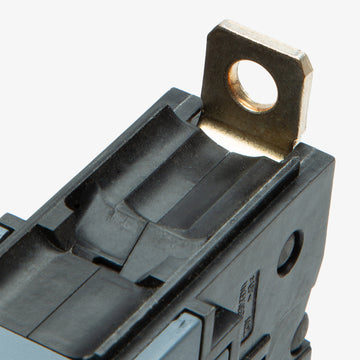

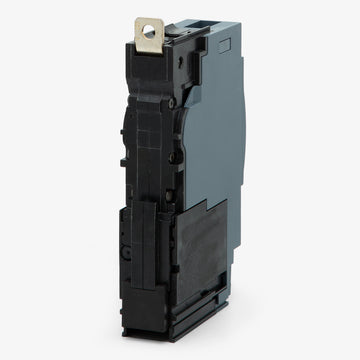

Siemens 3VA4140-6ED14-0AA0 Molded Case Circuit Breaker
- 40A
- 1 Pole
- Panel Mount
Siemens
3VA4140-6ED14-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4140-6ED14-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4140-6ED14-0AA0 - 40A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
30A 1 Pole Molded Case Circuit Breaker
25A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
Description
Designed for industrial use, the Siemens 3VA4140-6ED14-0AA0 is a 1-pole, 40A molded case circuit breaker. It fits Siemens P1, P2, and P3 panelboards. This panel mount MCCB replaces legacy ED61B040 breakers. The 3VA41 frame ensures a compact footprint while maintaining high performance in demanding systems. Featuring a TM210 thermal-magnetic trip unit, it delivers fixed long-time and instantaneous (LI) protection. It boasts a 65kAIC rating at 277VAC.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Panel Mount |
| Voltage | 120VAC, 277VAC, 125VDC, 347VAC |
| Phase | 1 |
| AIC Rating | 150kA @ 120VAC, 65kA @ 277VAC, 30kA @ 125VDC, 25kA @ 347VAC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CE, CSA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, HID Rated |
Product FAQs
5 answersWhich Siemens panelboards are compatible with the 3VA4140-6ED14-0AA0 breaker?
This 3VA41 frame breaker is designed for installation in Siemens P1, P2, and P3 panelboards, as well as compatible Siemens switchboards.
What type of wire can be installed in the terminals of this breaker?

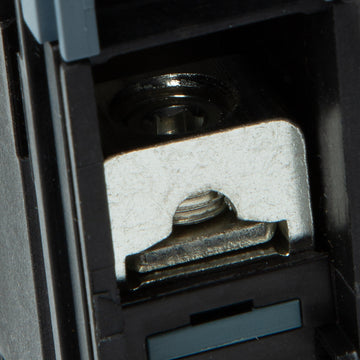

The factory-installed lugs accept 14 AWG to 8 AWG wire and are rated for both copper (Cu) and aluminum (Al) conductors.
What type of protection does the LI trip function provide?
The LI designation indicates Long-Time and Instantaneous trip functions. This provides standard thermal overload protection (Long-Time) and magnetic short-circuit protection (Instantaneous).
Are the thermal and magnetic trip settings adjustable on this model?
No, the 3VA4140-6ED14-0AA0 features a fixed thermal and fixed magnetic trip unit. The settings cannot be adjusted in the field.
Is this molded case circuit breaker suitable for direct current (DC) systems?
Yes, this breaker is rated for DC applications up to 125 VDC, making it suitable for specific control circuits and battery systems within its voltage limit.
