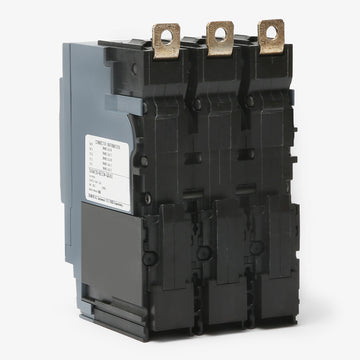

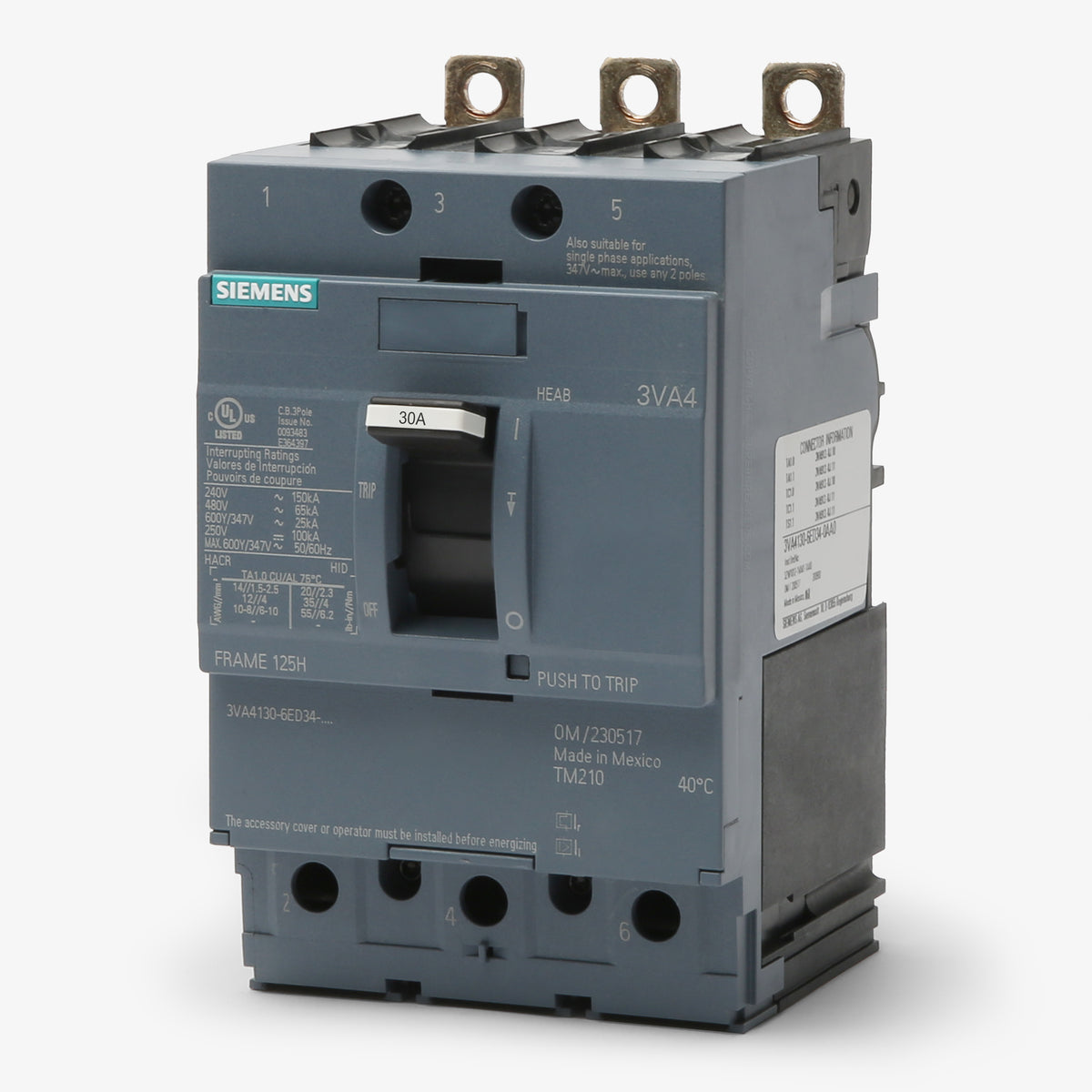

Siemens 3VA4130-6ED34-0AA0 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Panel Mount
Siemens
3VA4130-6ED34-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4130-6ED34-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4130-6ED34-0AA0 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
50A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
Description
Designed for high-fault commercial and industrial environments, the Siemens 3VA4130-6ED34-0AA0 is a 30A, 3-pole panel mount molded case circuit breaker. It fits into Siemens P1, P2, P3, P4, and P5 panelboards, providing a reliable replacement for legacy HHED63B030 units. This Class H breaker features an impressive 65kAIC interrupt rating at 480VAC. The unit includes fixed thermal and magnetic trip settings, current-limiting capabilities, and is HID rated for lighting applications.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA4130-6ED34-0AA0 |
| Series | 3VA4 |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, HID Rated |
Product FAQs
5 answersWhich Siemens panelboards accept the 3VA4130-6ED34-0AA0 circuit breaker?
This molded case circuit breaker is designed for direct integration into Siemens P1, P2, P3, P4, and P5 panelboards, as well as compatible Siemens switchboards.

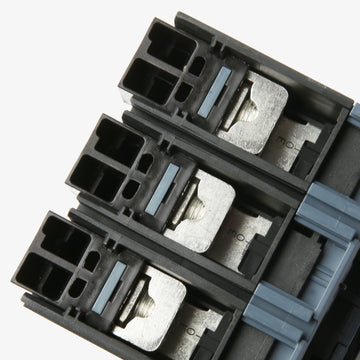

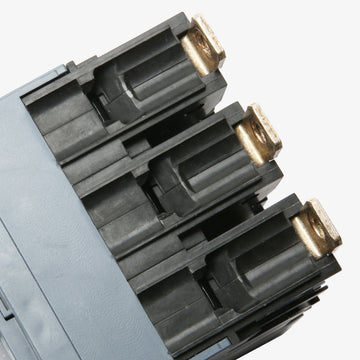

What wire sizes and materials are supported by the factory lugs?
The standard terminal lugs accommodate 14 to 8 AWG copper conductors or 12 to 8 AWG aluminum conductors. Always ensure connections are torqued to the specifications listed on the breaker face or manufacturer documentation.
Can the thermal or magnetic trip settings be adjusted on this 3VA4 unit?
No. This breaker features a basic thermal magnetic trip unit with fixed thermal and fixed magnetic (LI) settings, meaning neither the continuous current overload nor the short-circuit trip points can be field-adjusted.
What is the maximum interrupting rating for direct current systems?
When installed in DC applications, this breaker provides a short-circuit interrupting rating of up to 100kAIC at a maximum of 250VDC.
What frame size class does this 30A breaker belong to?
It is built on the Siemens 3VA41 frame architecture. The 3VA41 frame maintains identical physical dimensions for all amperage ratings up to 125A, which simplifies hardware spacing and mounting in custom panel builds.
