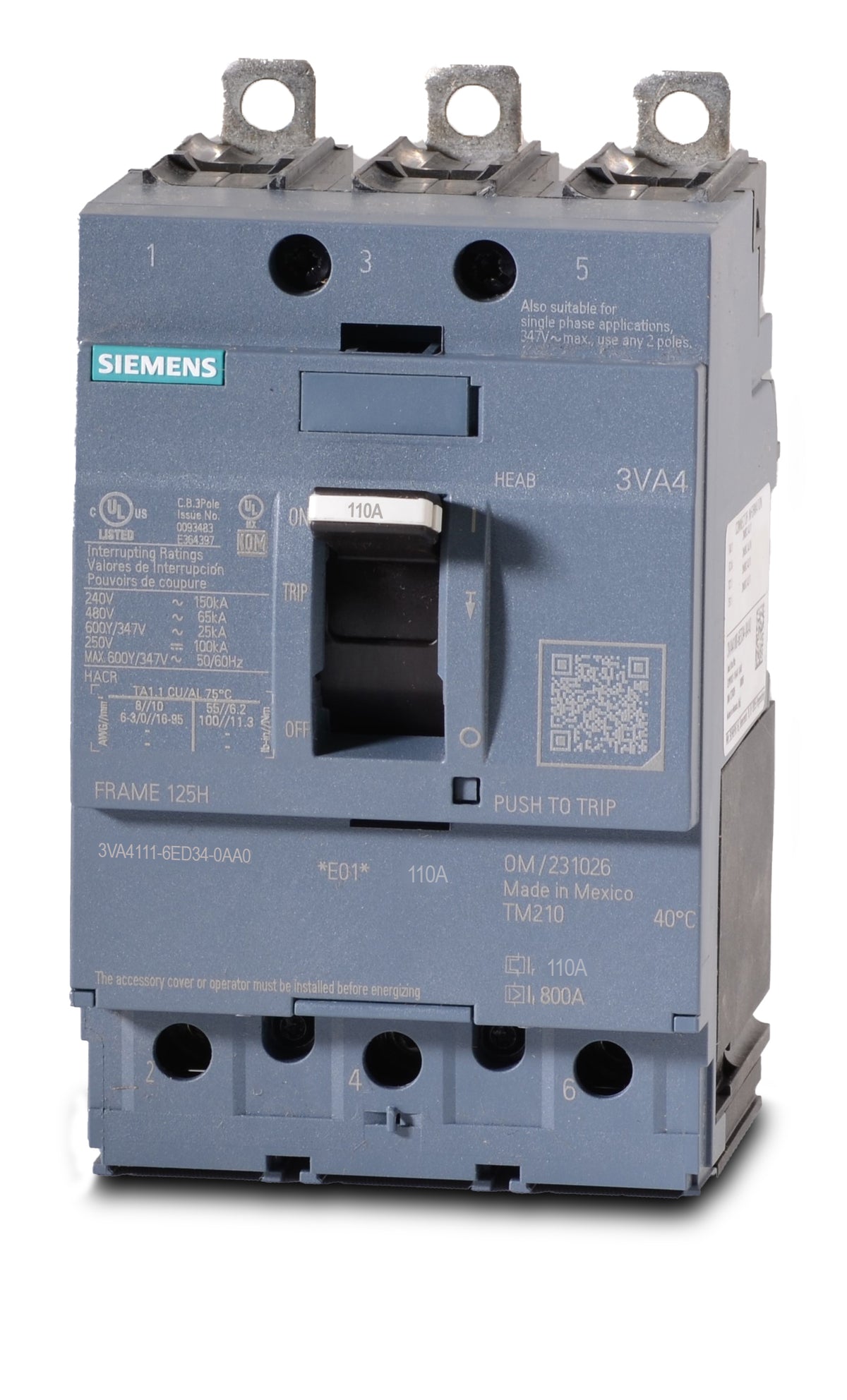

Siemens 3VA4111-6ED34-0AA0 Molded Case Circuit Breaker
- 110A
- 3 Pole
- Panel Mount
Siemens
3VA4111-6ED34-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4111-6ED34-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4111-6ED34-0AA0 - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Utilizing advanced thermal magnetic technology, this 110A high-interrupting breaker protects critical commercial circuits from overloads and short circuits. It is engineered to fit Siemens P1, P2, and P3 panelboards alongside compatible switchgear. As a panel mount solution, it replaces legacy ED63B110 components. The unit features a trip-free mechanism and accepts 8 to 3/0 AWG conductors. Boasting a 65 kAIC capacity at 480VAC, it delivers superior current-limiting protection.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA4111-6ED34-0AA0 |
| Series | 3VA4 |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 8 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Trip-Free Mechanism, Non-Interchangeable Trip |
Product FAQs
5 answersWhich Siemens panelboards are compatible with the 3VA4111-6ED34-0AA0?
This bolt-on MCCB is designed for use in Siemens P1, P2, and P3 panelboards, as well as compatible Siemens switchboards. Ensure your specific interior is configured to accept 3VA41 frame breakers.
Are the thermal and magnetic trip units adjustable on this model?
No, the 3VA4111-6ED34-0AA0 features a fixed thermal and fixed magnetic trip unit. It provides standard Long-Time (L) and Instantaneous (I) protection without adjustable dials.
What wire sizes and materials are accepted by the terminal lugs?
The factory lugs accept either copper (Cu) or aluminum (Al) conductors ranging from 8 AWG up to 3/0 AWG. Always verify the required torque specifications printed on the breaker face before finalizing your connections.
Is this breaker rated for DC applications?
Yes, this 3-pole breaker is rated for up to 250VDC with a maximum interrupting capacity of 100kA. Consult Siemens wiring guidelines to ensure proper series pole connections for DC switching operations.
Does this breaker plug into the busbar or bolt directly to it?
This is a bolt-on circuit breaker. It requires mechanical fastening directly to the busbar in your panelboard or switchboard, which ensures a secure and reliable connection for industrial power distribution.
