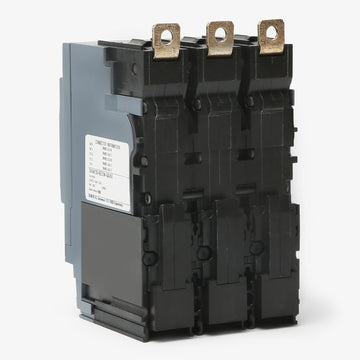

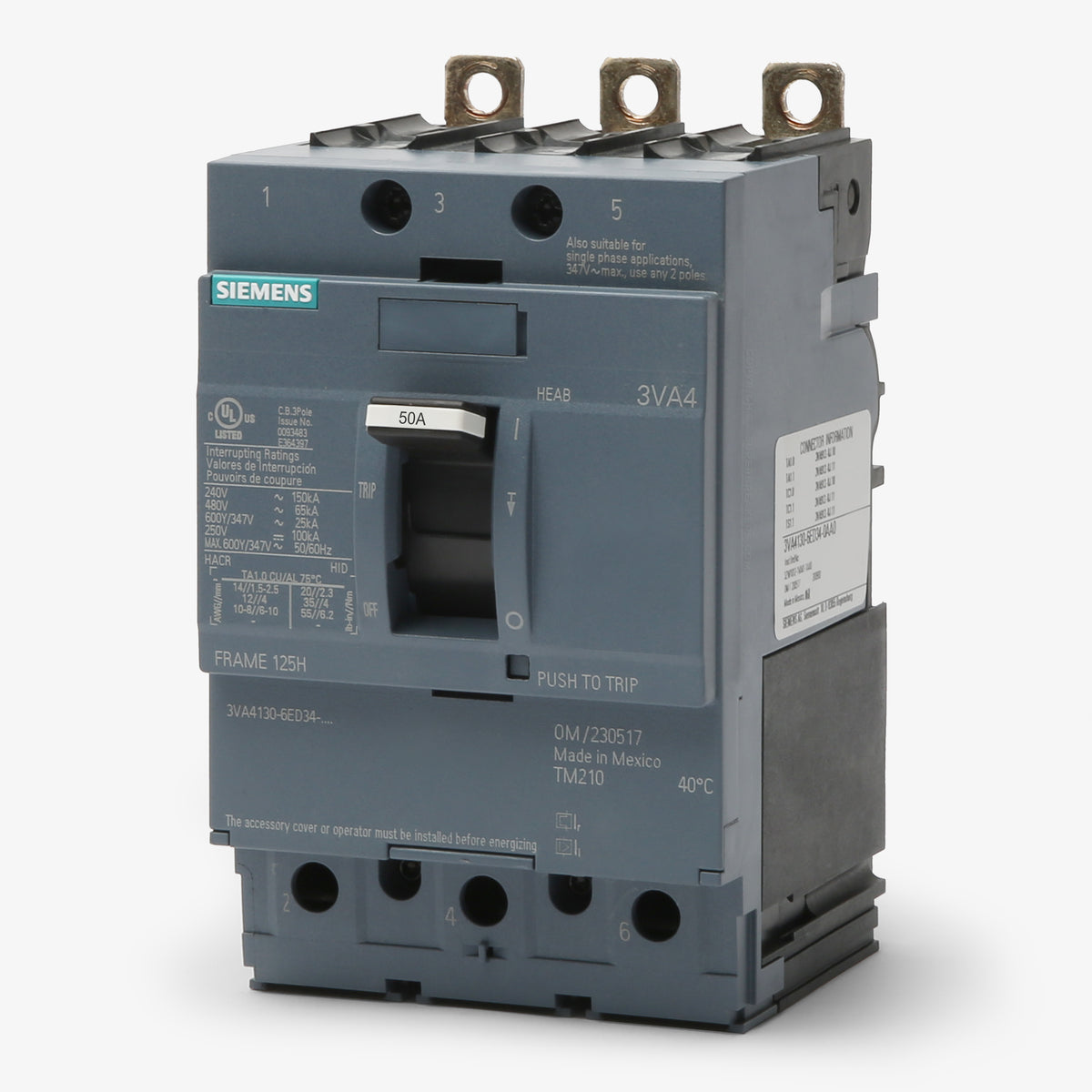

Siemens 3VA4150-6ED34-0AA0 Molded Case Circuit Breaker
- 50A
- 3 Pole
- Panel Mount
Siemens
3VA4150-6ED34-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4150-6ED34-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4150-6ED34-0AA0 - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens 3VA4150-6ED34-0AA0 - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | 3VA4150-6ED34-0AA0 |
| Series | 3VA4 |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 8 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CE, CSA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Reverse Feed, HACR Rated, High Interrupting Capacity |
Quantity
Siemens 3VA4150-6ED34-0AA0 - 50A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 8 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CE, CSA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Reverse Feed, HACR Rated, High Interrupting Capacity |
Similar Items
30A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
Description
Designed for heavy-duty commercial power distribution, this three-pole 50A molded case circuit breaker offers dependable thermal-magnetic trip functionality. It fits into a wide range of Siemens infrastructure, including P1, P2, P3, P4, and P5 panelboards, and serves as the modern replacement for legacy ED63B050 components. With a formidable 100kAIC rating at 240VAC and 65kAIC at 480VAC, this reverse-feed capable unit ensures superior current limitation and system safety.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA4150-6ED34-0AA0 |
| Series | 3VA4 |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 8 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CE, CSA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Reverse Feed, HACR Rated, High Interrupting Capacity |
Product FAQs
5 answersWhich Siemens panels are compatible with the 3VA4150-6ED34-0AA0?
This 3VA41 frame breaker is designed for use in Siemens P1, P2, P3, P4, and P5 panelboards as well as switchboards. Depending on the panel type and your configuration, a separate mounting strap kit (such as the BBKVA4P2P3 or S3VA41T) may be required for installation.
Does this breaker come with both line and load lugs?

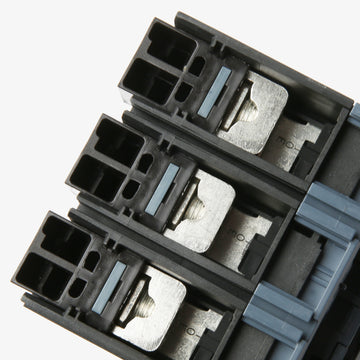

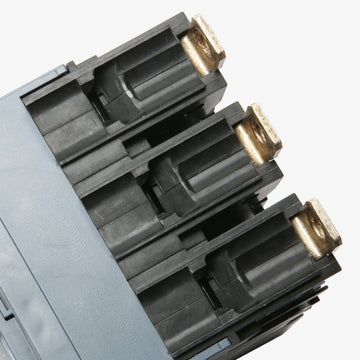

This specific catalog number ships with aluminum lugs installed on the load side only, which is standard for Siemens panelboard-mounted breakers. The load lugs accept 8 AWG to 3/0 AWG copper or aluminum wire. Line-side connections are typically bolted directly to the panel bus using the appropriate mounting hardware.
What type of trip unit is integrated into this breaker?
The breaker is equipped with a Siemens TM210 thermal-magnetic trip unit. It provides standard LI (Long-Time and Instantaneous) protection with fixed thermal and fixed magnetic trip settings.
What interrupting class does this specific catalog number represent?
This 3VA41 breaker features a Class H (High) breaking capacity. The Class H designation indicates it is engineered to safely clear severe faults, offering a maximum interrupting rating of 65kA at 480V and 25kA at 600Y/347V.
Can internal accessories be added to this breaker in the field?
Yes, this 3-pole 3VA41 frame includes two dedicated accessory pockets that accommodate UL-listed, field-installable internal accessories. This allows panel builders to easily integrate auxiliary switches, alarm contacts, shunt trips, or undervoltage releases without replacing the breaker.
