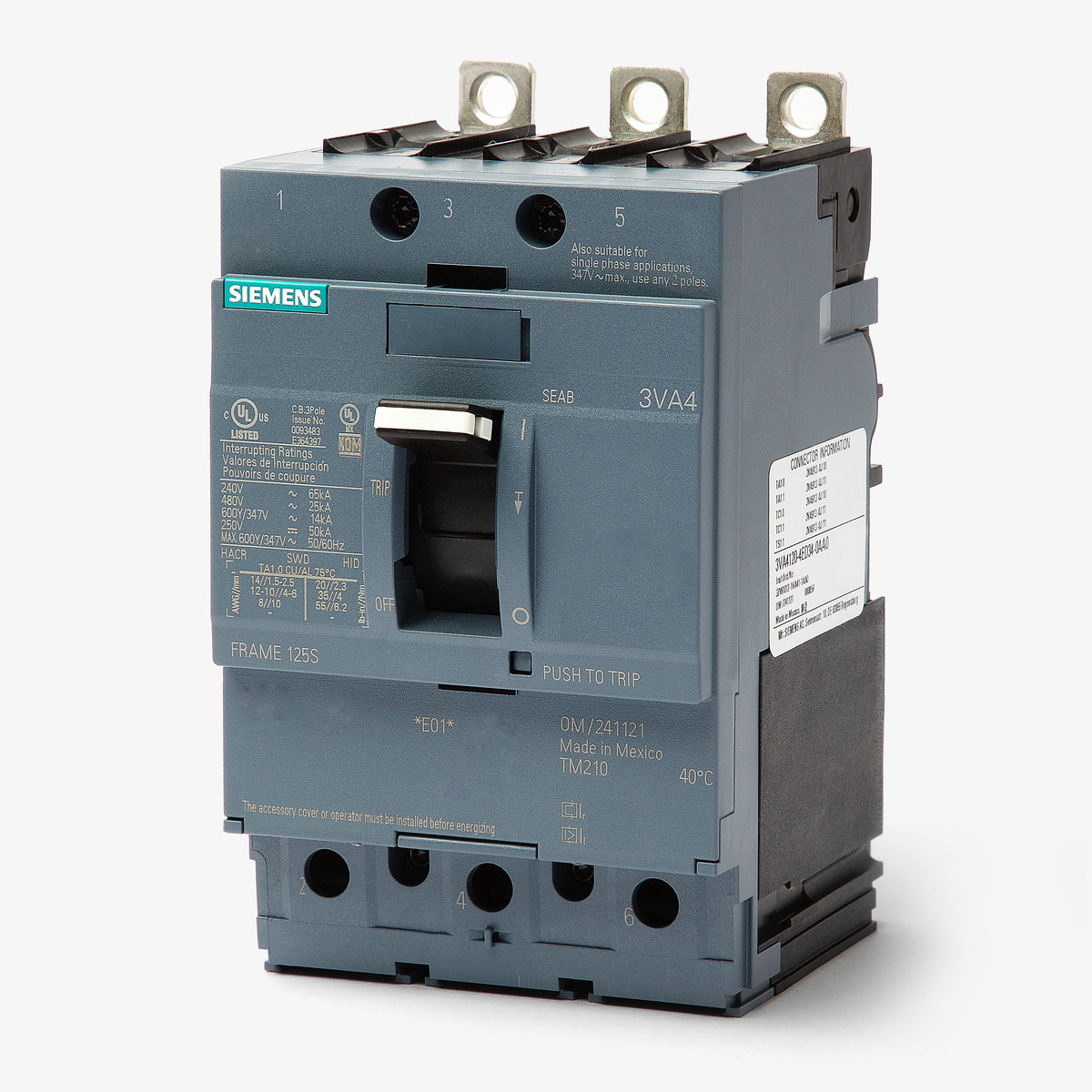

Siemens 3VA4140-4ED34-0AA0 Molded Case Circuit Breaker
- 40A
- 3 Pole
- Panel Mount
Siemens
3VA4140-4ED34-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4140-4ED34-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4140-4ED34-0AA0 - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
50A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
The Siemens 3VA4140-4ED34-0AA0 is a 40A, 3-pole molded case circuit breaker from the advanced SENTRON 3VA4 series. It utilizes a reliable TM210 thermal-magnetic trip unit to deliver fixed long-time and instantaneous (LI) protection for industrial environments. This panel mount MCCB integrates seamlessly into Siemens P1, P2, and P3 panelboards. It is engineered as a replacement for legacy ED43B040 breakers. With a standard 25 kAIC rating at 480VAC, it safely interrupts high-level faults.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA4140-4ED34-0AA0 |
| Series | 3VA4 |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 50kA @ 250VDC |
| Frame Type | 3VA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, HID Rated |
Product FAQs
8 answersWhat panelboards are compatible with the 3VA4140-4ED34-0AA0?
This 3-pole breaker is designed for bolt-on installation in Siemens P1, P2, and P3 panelboards, as well as compatible Siemens switchboards.
What legacy Siemens breaker does the 3VA4140-4ED34-0AA0 replace?
This 3VA4 series breaker is engineered as a direct replacement for the legacy ED43B040 circuit breaker.
What frame size does this circuit breaker belong to?
It is part of the Siemens 3VA41 frame series, which features a maximum frame rating of 125 amps.
What does the LI trip function indicate on this breaker?
The LI designation means the TM210 thermal magnetic trip unit provides Long-Time for thermal overload and Instantaneous for magnetic short-circuit protection. Both settings are fixed on this specific model.
Can this breaker be used in DC electrical systems?
Yes, it is rated for use in direct current applications up to 250VDC with an interrupting capacity of 50kA.

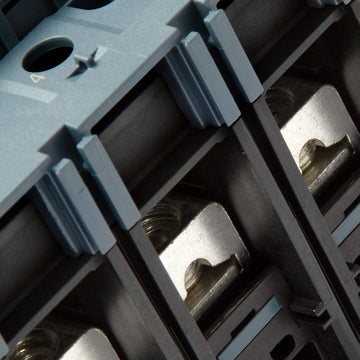

What wire sizes are accepted by the terminals on this breaker?
The load side lugs accept either copper or aluminum conductors ranging from 14 AWG to 8 AWG.

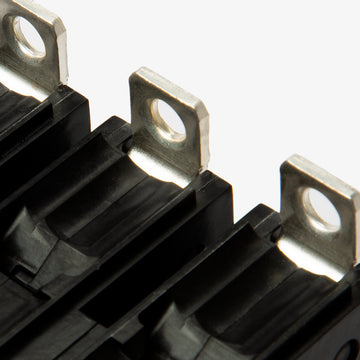

Are lugs included on both the line and load sides?
No, this panel mount breaker comes with lugs installed on the load side only. The line side is designed to bolt directly to the panelboard bus.
What does the Class S breaking capacity mean for this breaker?
Class S indicates the standard interrupting rating tier for this Siemens frame, which provides a 25kA interrupting capacity at 480VAC.
