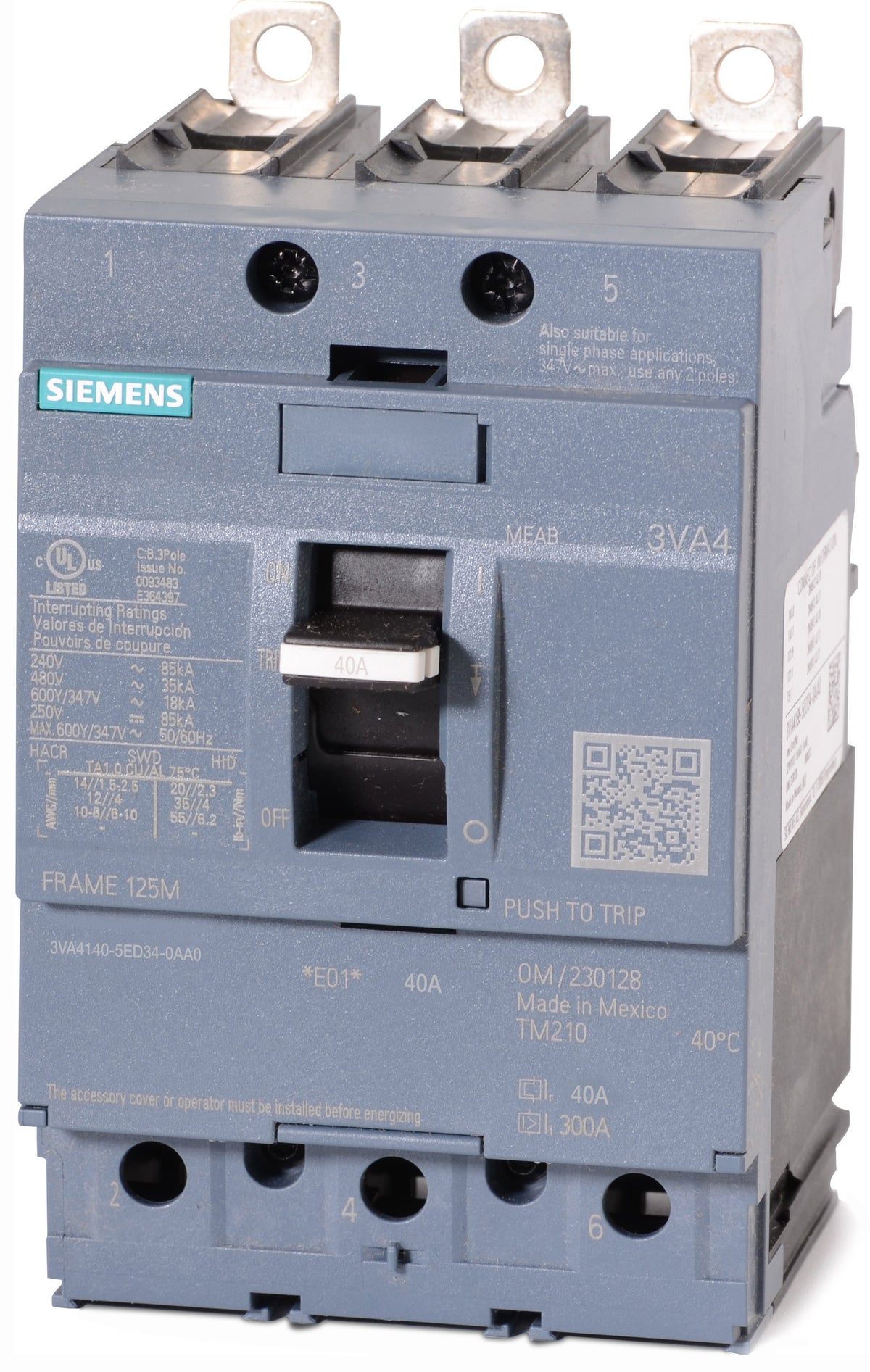

Siemens 3VA4140-5ED34-0AA0 Molded Case Circuit Breaker
- 40A
- 3 Pole
- Panel Mount
Siemens
3VA4140-5ED34-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4140-5ED34-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4140-5ED34-0AA0 - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens 3VA4140-5ED34-0AA0 - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | 3VA4140-5ED34-0AA0 |
| Series | 3VA4 |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 85kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | HACR Rated, HID Rated, IEC 60947-2, UL 489 |
| Approval | CE, CSA, EAC, NOM, RCM, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, HID Rated |
Sold out
Quantity
Siemens 3VA4140-5ED34-0AA0 - 40A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 85kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | HACR Rated, HID Rated, IEC 60947-2, UL 489 |
| Approval | CE, CSA, EAC, NOM, RCM, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, HID Rated |
Similar Items
30A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial use, the Siemens 3VA4140-5ED34-0AA0 is a 3-pole, 40A molded case circuit breaker from the SENTRON 3VA4 frame group. This panel mount MCCB installs into Siemens P1, P2, and P3 panelboards. It serves as an upgraded replacement for legacy ED43B040 breakers. Featuring a TM210 thermal-magnetic trip unit, it delivers an interrupting capacity of 35kA at 480V. The breaker is HACR and HID rated for specialized loads.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA4140-5ED34-0AA0 |
| Series | 3VA4 |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 85kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | HACR Rated, HID Rated, IEC 60947-2, UL 489 |
| Approval | CE, CSA, EAC, NOM, RCM, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, HID Rated |
Product FAQs
6 answersWhich Siemens panelboards accept this 3VA41 breaker?
This breaker installs into Siemens P1, P2, and P3 panelboards, as well as standard Siemens switchboards. Depending on the specific panelboard generation, a dedicated mounting strap kit may be required for installation.
Does the 3VA4140-5ED34-0AA0 replace older Siemens breakers?
Yes, the 3VA4 series is the modern replacement for legacy ED frame breakers. This specific 40A, 3-pole model directly replaces the older ED43B040 circuit breaker.
What wire sizes do the standard lugs accept?
The factory-installed lugs on this breaker accommodate 14 AWG to 8 AWG aluminum or copper conductors.
Is the 3VA4140-5ED34-0AA0 UL listed for reverse feed applications?
Yes, all Siemens 3VA41 thermal-magnetic circuit breakers are UL listed for reverse feeding.
What do the 5 and E signify in the 3VA4140-5ED34-0AA0 catalog number?
The 5 designates the breaking capacity class, which provides a 35kA interrupting rating at 480VAC. The E indicates it is equipped with a TM210 thermal-magnetic trip unit featuring fixed long-time and instantaneous (LI) protection.
Can this MCCB be applied on DC systems?
Yes, it is rated for use on direct current systems up to 250VDC with an 85kA interrupting capacity. When applying a 3-pole breaker on DC systems, ensure the poles are wired according to Siemens DC application guidelines.
