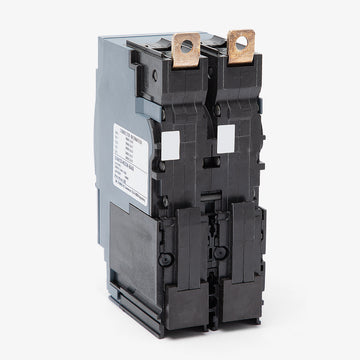

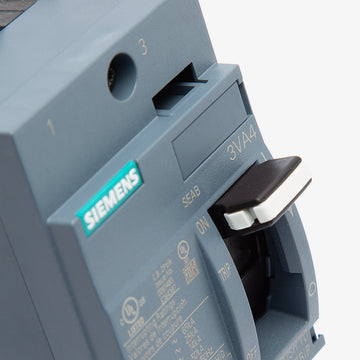

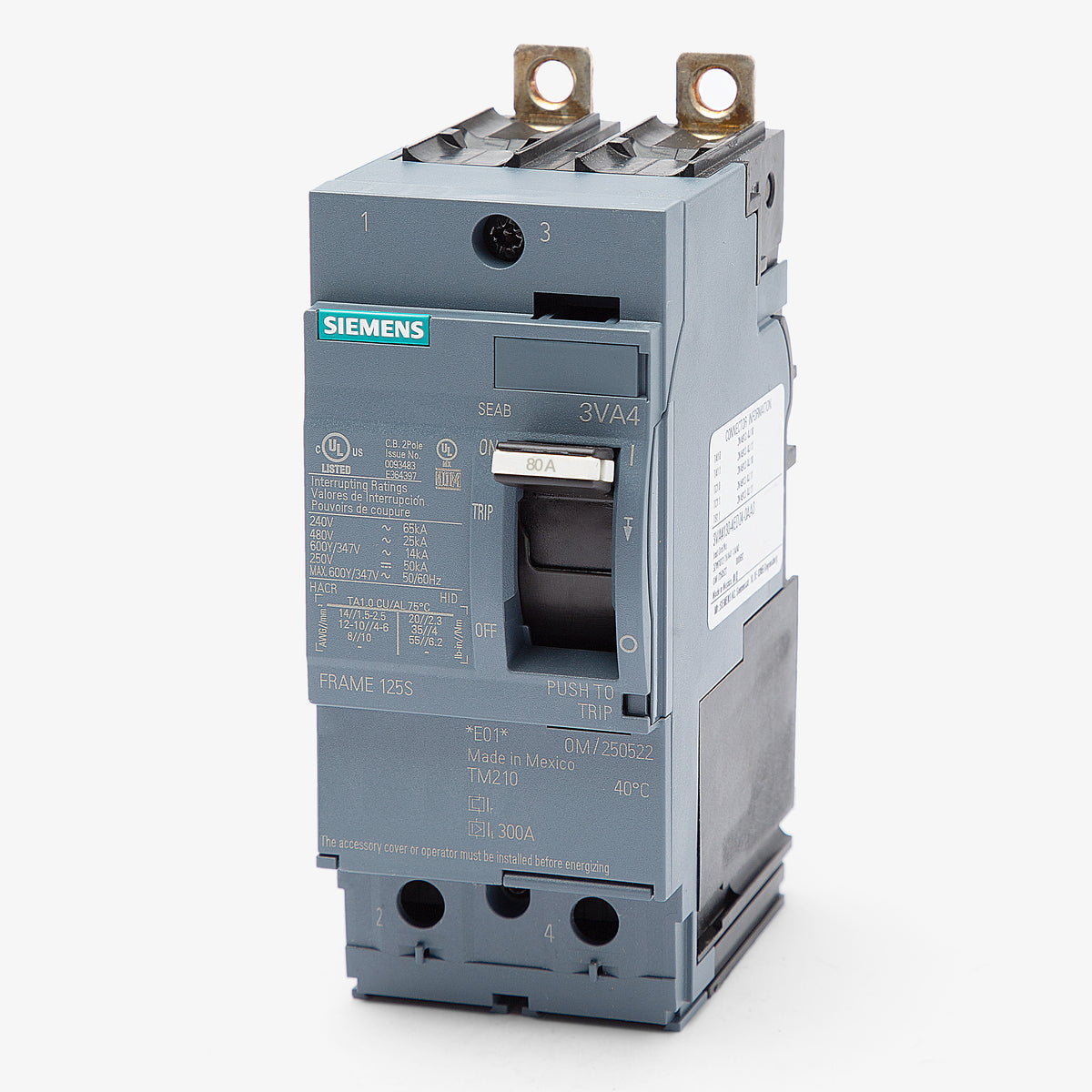

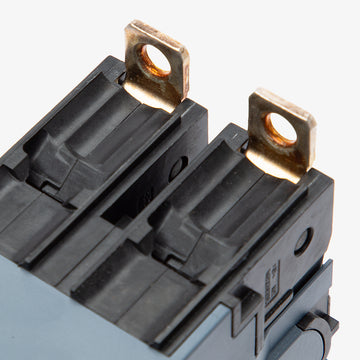

Siemens 3VA4180-4ED24-0AA0 Molded Case Circuit Breaker
- 80A
- 2 Pole
- Bolt-On
Siemens
3VA4180-4ED24-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4180-4ED24-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4180-4ED24-0AA0 - 80A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
90A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
Providing reliable overcurrent defense for commercial facilities, this 2-pole 80A molded case circuit breaker ensures steady power distribution. The unit is equipped with fixed thermal and magnetic trip functions to safeguard critical electrical infrastructure. Installation is straightforward, as the breaker bolts into Siemens P1, P2, and P3 panelboards. Facility managers can also use this model to replace older ED42B080 breakers.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA4180-4ED24-0AA0 |
| Series | 3VA4 |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 50kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards, Siemens P2 Panelboards, Siemens P3 Panelboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed |
Product FAQs
7 answersWhat panelboards are compatible with this 3VA4 circuit breaker?
This bolt-on breaker is designed for installation in Siemens P1, P2, and P3 panelboards.
What wire sizes do the factory-installed lugs accept?
The lugs on this breaker accept 14 AWG through 3/0 AWG copper or aluminum (Cu/Al) conductors.
Can this breaker be used in DC voltage applications?
Yes, it is rated for up to 250VDC with an interrupting capacity of 50kA.
Are the trip settings adjustable on this model?
No, this breaker features a TM210 thermal-magnetic trip unit with fixed thermal and fixed magnetic settings (LI function).
Can I use this breaker to replace an older ED42B080?
Yes, the 3VA4 series is the modern replacement for legacy ED-frame breakers, including the 80A, 2-pole ED42B080, in Siemens panelboards.
What is the maximum frame size for the 3VA41 series?
The 3VA41 frame has a maximum capacity of 125A, though this specific model is factory-set with an 80A continuous current rating.
What does the first 4 in the 4ED24 section of the part number indicate?
In Siemens 3VA nomenclature, that digit designates the interrupting class. For this breaker, it indicates a 25kAIC rating at 480VAC.
