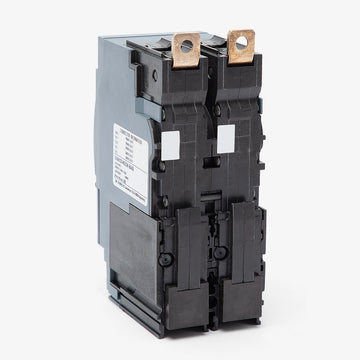

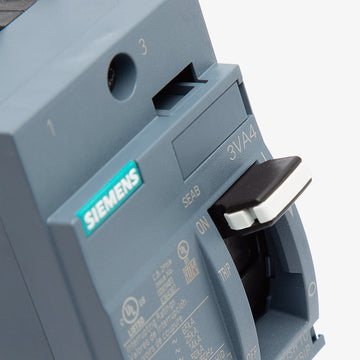

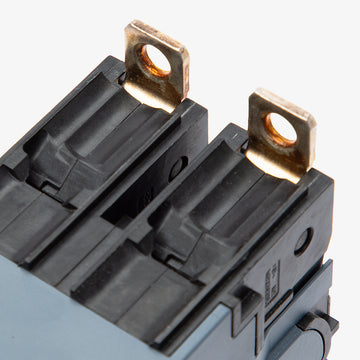

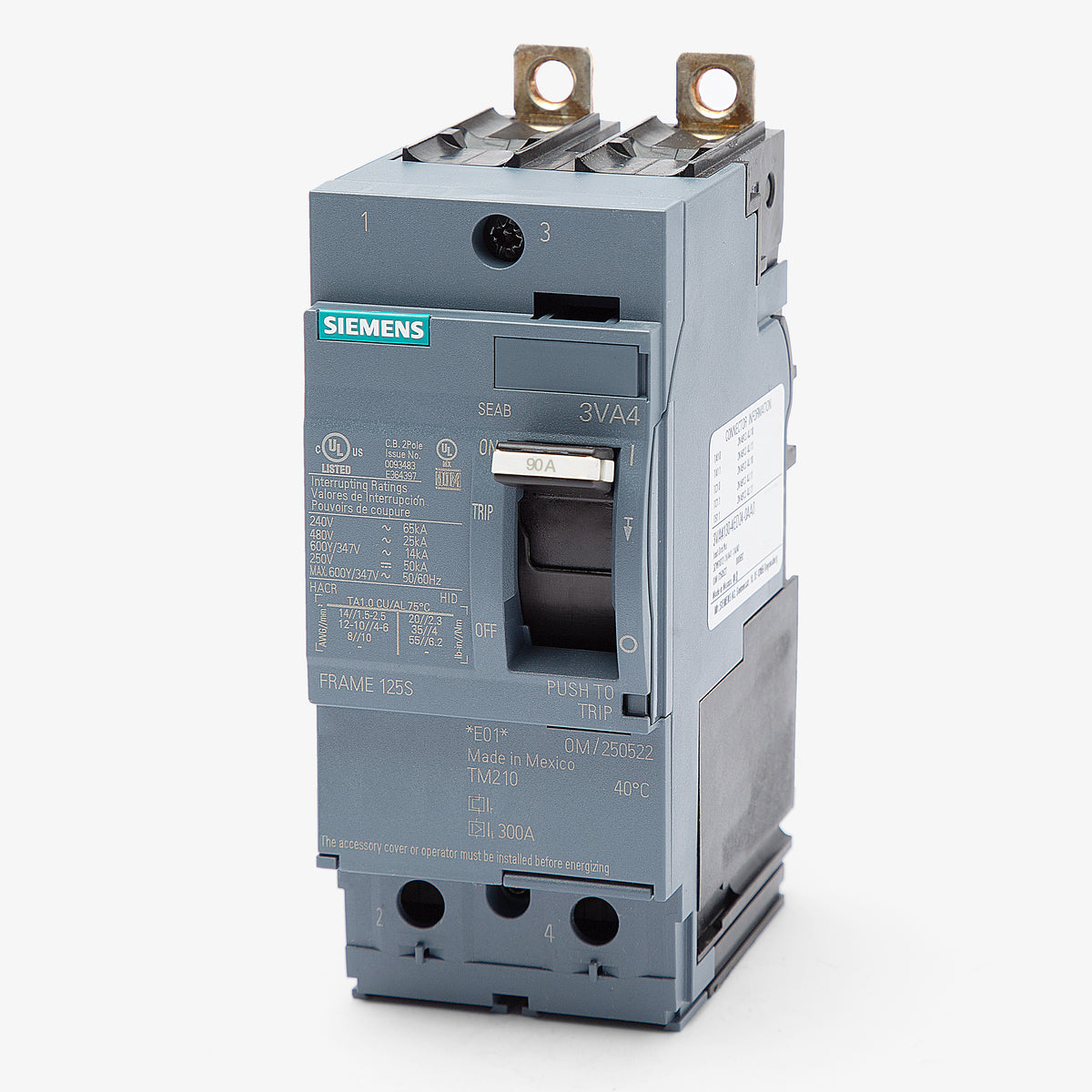

Siemens 3VA4190-4ED24-0AA0 Molded Case Circuit Breaker
- 90A
- 2 Pole
- Bolt-On
Siemens
3VA4190-4ED24-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA4190-4ED24-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA4190-4ED24-0AA0 - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Siemens 3VA4190-4ED24-0AA0 is a 2-pole, 90A molded case circuit breaker. It features a TM210 thermal-magnetic trip unit for precise overload and short-circuit protection. This Class S breaker mounts into Siemens P1, P2, and P3 panelboards, serving as a modern drop-in replacement for legacy ED42B090 breakers. Rated at 25kAIC at 480V and 65kAIC at 240V, it includes factory-installed load side lugs and is reverse feed capable.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA4190-4ED24-0AA0 |
| Series | 3VA4 |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 50kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards, Siemens P2 Panelboards, Siemens P3 Panelboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed |
Product FAQs
4 answersWhich panelboards are compatible with this 3VA41 frame breaker?
This bolt-on molded case circuit breaker is approved for installation in Siemens P1, P2, and P3 panelboards.
What type of conductors can be used with the terminals on the 3VA4190-4ED24-0AA0?
The included lugs are rated for both copper and aluminum wire, accepting conductor sizes ranging from 14 AWG to 3/0 AWG.
Are the thermal and magnetic trip settings adjustable on this model?
No. This breaker features a fixed thermal and fixed magnetic trip unit, providing standard Long-Time and Instantaneous (LI) protection without field adjustability.
Is this Siemens SENTRON breaker suitable for direct current systems?
Yes, it carries a DC rating of 250V DC with an interrupting capacity of 50kA, making it suitable for compatible direct current applications.
