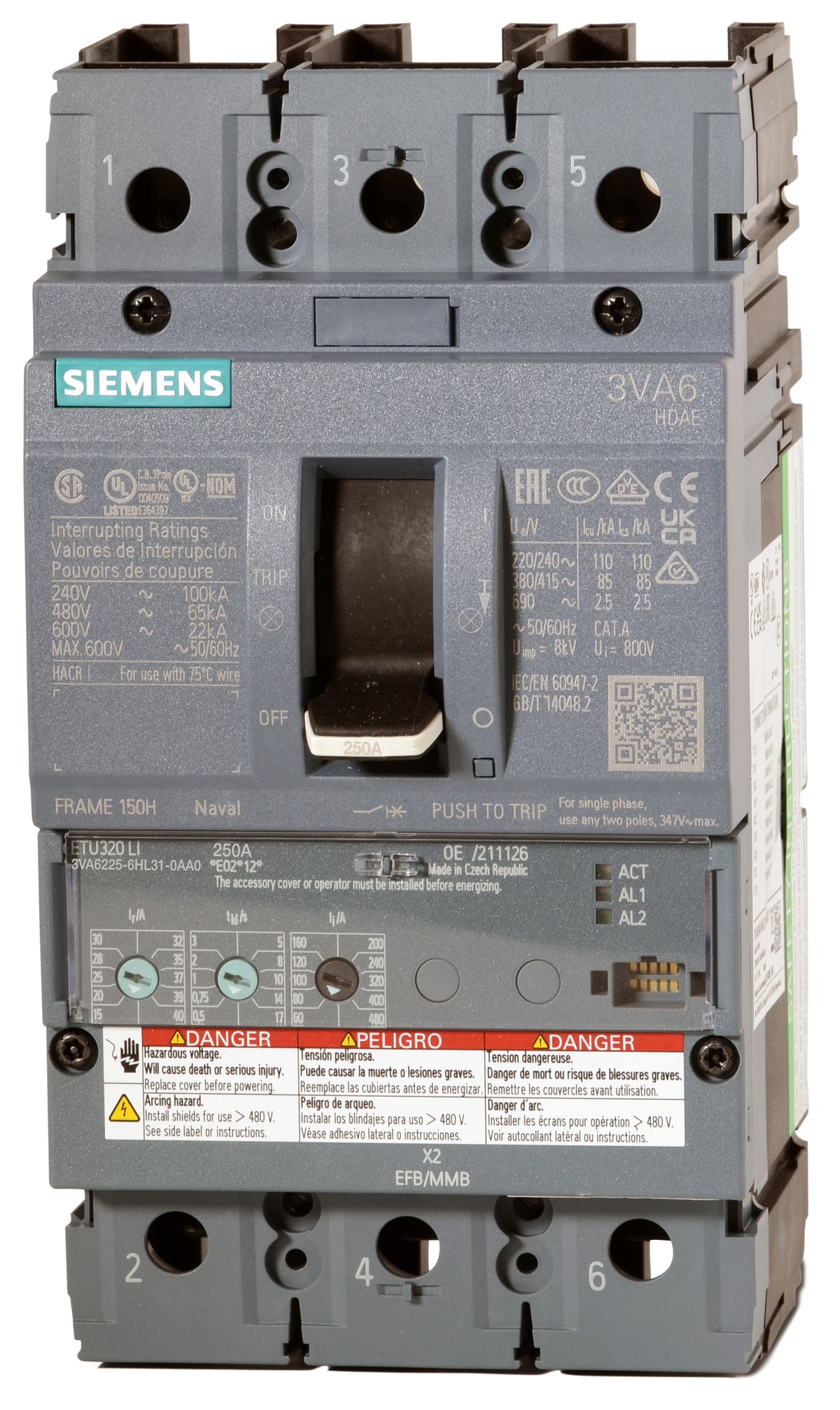

Siemens 3VA6225-6HL31-0AA0 Molded Case Circuit Breaker
- 250A
- 3 Pole
- Panel Mount
Siemens
3VA6225-6HL31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA6225-6HL31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA6225-6HL31-0AA0 - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
250A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
Description
Rated for high interrupting capacity, this 250A, 3-pole MCCB features an ETU320 electronic trip unit for reliable solid-state sensing. It installs into Siemens P1 through P5 panelboards and motor control centers. The unit is supplied without lugs, requiring separate kits for connection. Delivering 65 kAIC at 480V, it provides adjustable long-time and instantaneous (LI) protection. It is HACR rated, current limiting, and reverse feed suitable.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA6225-6HL31-0AA0 |
| Series | 3VA6 |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 22kA @ 600Y/347VAC, 22kA @ 600VAC |
| Amperage Range | 100-250A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, High Interrupting Capacity |
Product FAQs
8 answersDoes the 3VA6225-6HL31-0AA0 come with terminal lugs installed?
No, this breaker is supplied with punched copper bar extensions and does not include lugs. You must purchase the appropriate lug kits separately based on your wire size and material requirements.
What type of trip unit is installed in the 3VA6225-6HL31-0AA0?
It features a solid-state ETU320 electronic trip unit with adjustable long-time (Ir) and instantaneous (Ii) protection functions.
What is the adjustable continuous current range for this 250A breaker?
The ETU320 trip unit allows the long-time overload protection (Ir) to be adjusted from 100A to 250A.
What is the instantaneous short-circuit protection range for the 3VA6225-6HL31-0AA0?
The ETU320 trip unit provides an adjustable instantaneous pickup (Ii) ranging from 1.5 to 10 times the continuous current rating (In).
Is the Siemens 3VA6225-6HL31-0AA0 suitable for reverse feed applications?
Yes, this 3VA62 electronic trip circuit breaker is UL listed for reverse feed applications.
Which Siemens panelboards are compatible with this 250A breaker?
This breaker is designed for use in Siemens P1, P2, P3, P4, and P5 panelboards, as well as compatible switchboards and motor control centers.
Is this circuit breaker HACR rated?
Yes, it is HACR rated for use with heating, air conditioning, and refrigeration equipment.
Is the 3VA6225-6HL31-0AA0 a 100% rated circuit breaker?
No, this specific catalog number is standard rated at 80%. The 100% rated equivalent requires a different catalog number ending in -2AA0 instead of -0AA0.
