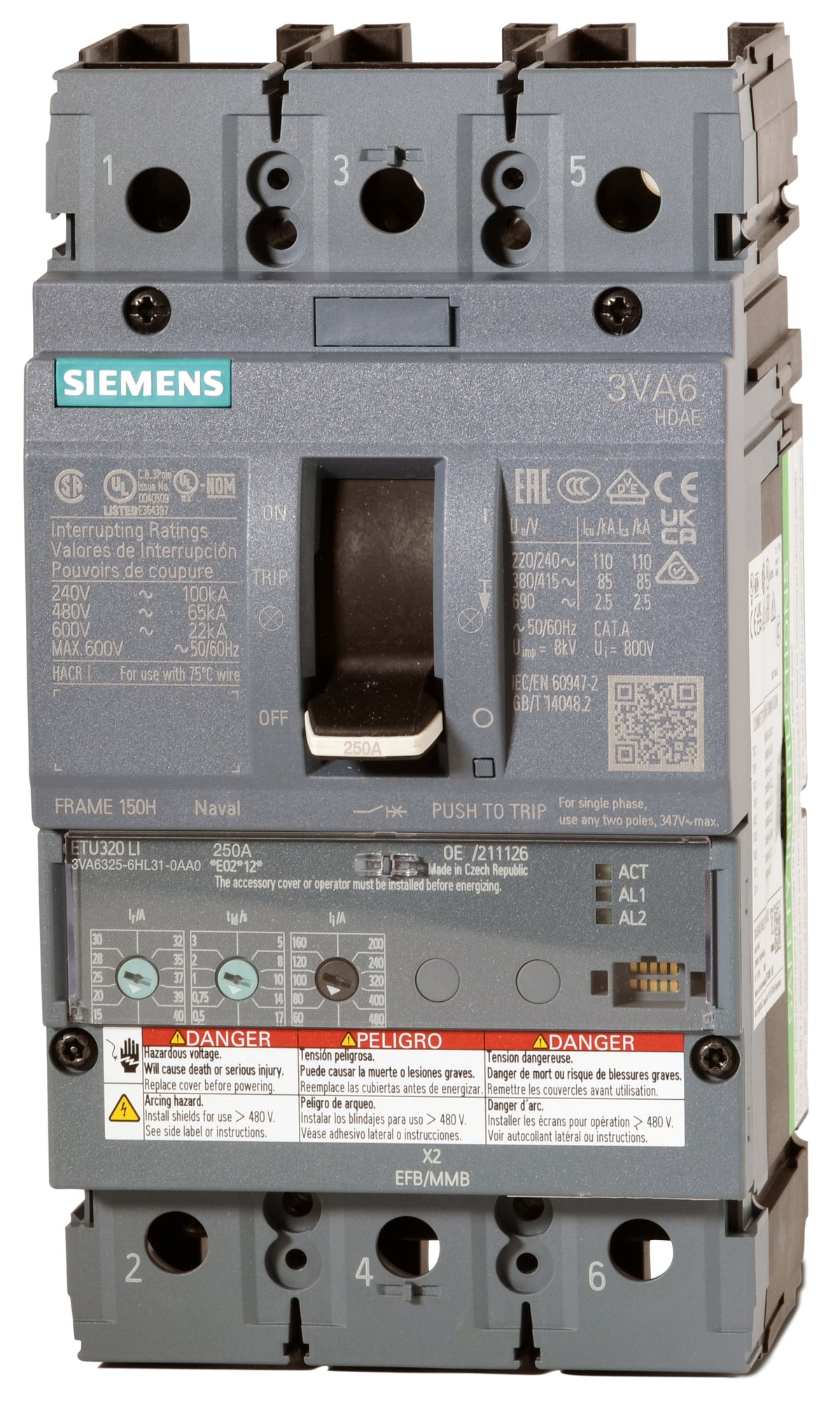

Siemens 3VA6325-6HL31-0AA0 Molded Case Circuit Breaker
- 250A
- 3 Pole
- Panel Mount
Siemens
3VA6325-6HL31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA6325-6HL31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA6325-6HL31-0AA0 - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
250A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
Description
The 3VA6325-6HL31-0AA0 is a high-performance 250A, 3-pole molded case circuit breaker from the Siemens Sentron 3VA6 family. Built for heavy-duty industrial environments, it mounts into Siemens P4 and P5 panelboards, switchboards, and motor control centers. This Class H breaker offers a robust 65 kAIC interrupting capacity at 480V and utilizes an electronic trip unit with adjustable long-time and instantaneous (LI) protection, ensuring accurate and reliable circuit defense.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA6 |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 22kA @ 600Y/347VAC, 22kA @ 600VAC |
| Amperage Range | 100-250A |
|---|
| Frame Type | 3VA63 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P4, P5 Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, cULus, HACR, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed |
Product FAQs
8 answersWhat equipment is the Siemens 3VA6325-6HL31-0AA0 compatible with?
This 250A circuit breaker is designed for installation in Siemens P4 and P5 panelboards, as well as compatible switchboards and motor control centers.
What type of trip unit is included with the 3VA6325-6HL31-0AA0?
It features an ETU320 electronic trip unit with adjustable long time and instantaneous (LI) protection functions for precise circuit defense.
What is the frame size of the 3VA6325-6HL31-0AA0 breaker?
This breaker is built on the 400A rated 3VA63 frame, but it is factory configured with a 250A continuous current rating.
How is the 3VA6325-6HL31-0AA0 mounted in an electrical system?
It features a fixed, panel mount design for feed-thru connections and utilizes lug terminals for secure wire termination.
What is the interrupting capacity class for this 3VA6 breaker?
This is a Class H breaker, providing a high breaking capacity of 65 kAIC at 480V and 22 kAIC at 600V.
Is the 3VA6325-6HL31-0AA0 suitable for reverse feed applications?
Yes, Siemens 3VA63 electronic trip circuit breakers are UL listed for reverse feed applications, allowing flexibility in power routing.
What does the HL in the 3VA6325-6HL31-0AA0 catalog number signify?
In Siemens 3VA nomenclature, the HL indicates that the breaker is equipped with an ETU320 LI electronic trip unit.
Is the 3VA6325-6HL31-0AA0 a 100 percent rated circuit breaker?
No, this specific catalog number is standard rated. For a 100 percent rated version of this 250A breaker, the 13th digit of the catalog number changes to a 2, resulting in part number 3VA6325-6HL31-2AA0.
