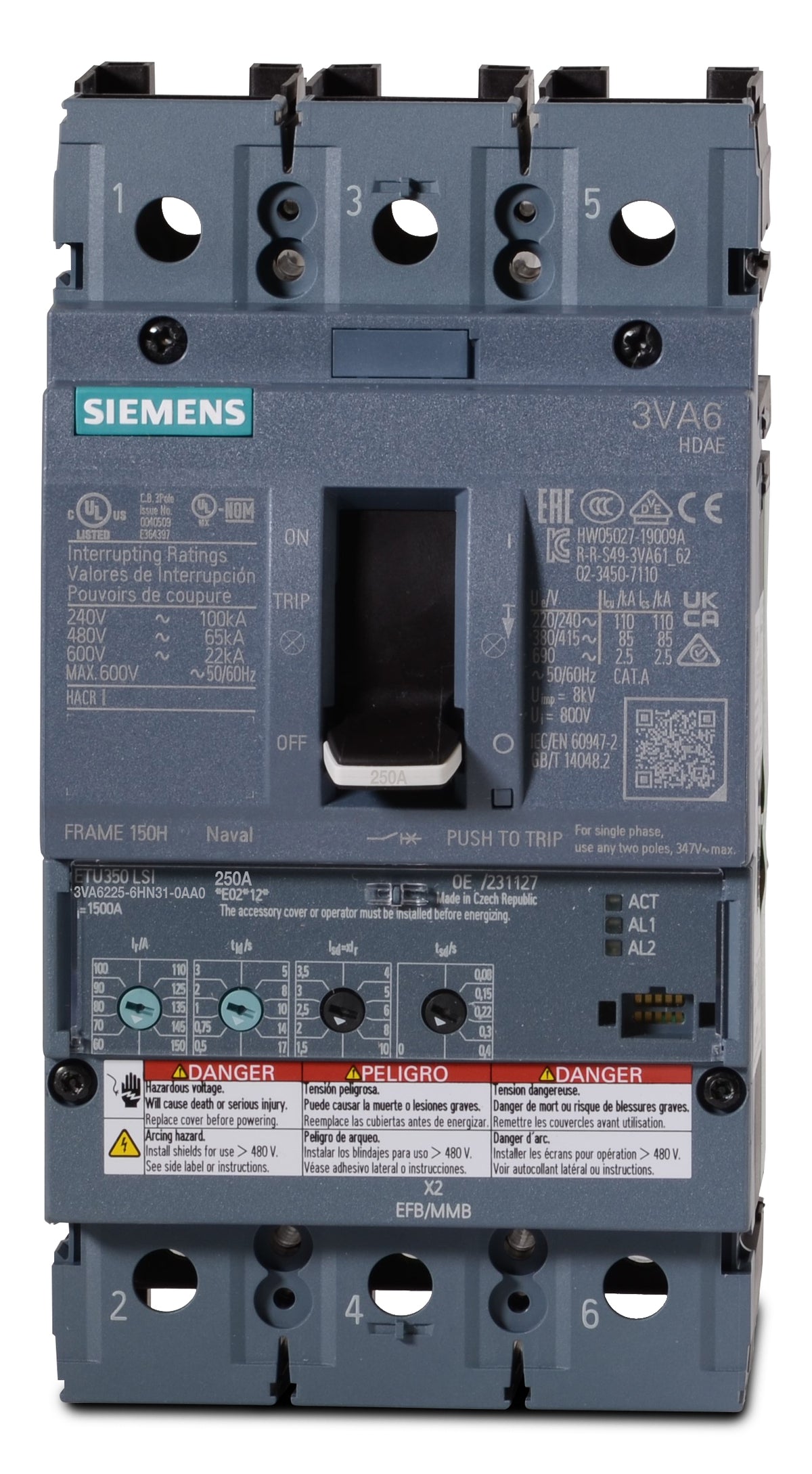

Siemens 3VA6225-6HN31-0AA0 Molded Case Circuit Breaker
- 250A
- 3 Pole
- Panel Mount
Siemens
3VA6225-6HN31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA6225-6HN31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA6225-6HN31-0AA0 - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
250A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
Description
The 3VA6225-6HN31-0AA0 is a 250A, 3-pole molded case circuit breaker from Siemens' 3VA6 series, built for commercial and industrial power distribution. This panel-mount breaker installs into Siemens P2 and P3 panelboards, switchboards, and motor control centers. It is UL listed for reverse feed applications. Equipped with an ETU350 electronic trip unit, it offers adjustable LSI settings via dials. It delivers a Class H breaking capacity of 65kA at 480V.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA6225-6HN31-0AA0 |
| Series | 3VA6 |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 22kA @ 600Y/347VAC, 22kA @ 600VAC |
| Amperage Range | 100-250A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P2 Panelboards, Siemens P3 Panelboards, Siemens Switchboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Lug Kits |
|---|---|
| Accessories | Nut Keeper Kit |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, cULus, IEC, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | High Interrupting Capacity, HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards are designed to house the 3VA6225-6HN31-0AA0?
This feed-thru circuit breaker mounts directly into Siemens P2 and P3 panelboards, as well as compatible Siemens switchboards and Motor Control Centers (MCCs).
What parameters can be configured on the ETU350 trip unit?
This solid-state LSI electronic trip unit features adjustable dials for the long-time continuous current (Ir) and short-time pickup (Isd). The continuous current can be set from 100A up to the full 250A frame rating, and the short-time pickup is adjustable from 1.5 to 10 times the Ir setting for precise load coordination.
Can the 3VA6225-6HN31-0AA0 be reverse fed?
Yes. This molded case circuit breaker is UL 489 listed for reverse feed applications, allowing you to safely terminate the incoming line power on either the top or bottom terminals.
Is the 3VA6 series a direct drop-in replacement for older Siemens 250A frames?
The 3VA6225-6HN31-0AA0 belongs to the modernized SENTRON 3VA portfolio, which upgrades legacy thermal-magnetic designs with advanced electronic trip units. Because the physical dimensions differ from older legacy frames, replacing an older breaker will require the appropriate 3VA retrofit strap or mounting hardware for your specific panel.
What is the enclosure protection rating for the front of this breaker?
The front face of the 3VA6225-6HN31-0AA0 carries an IP40 rating. When properly mounted behind an enclosure deadfront, it provides protection against the ingress of solid tools and wires larger than 1.0mm.
