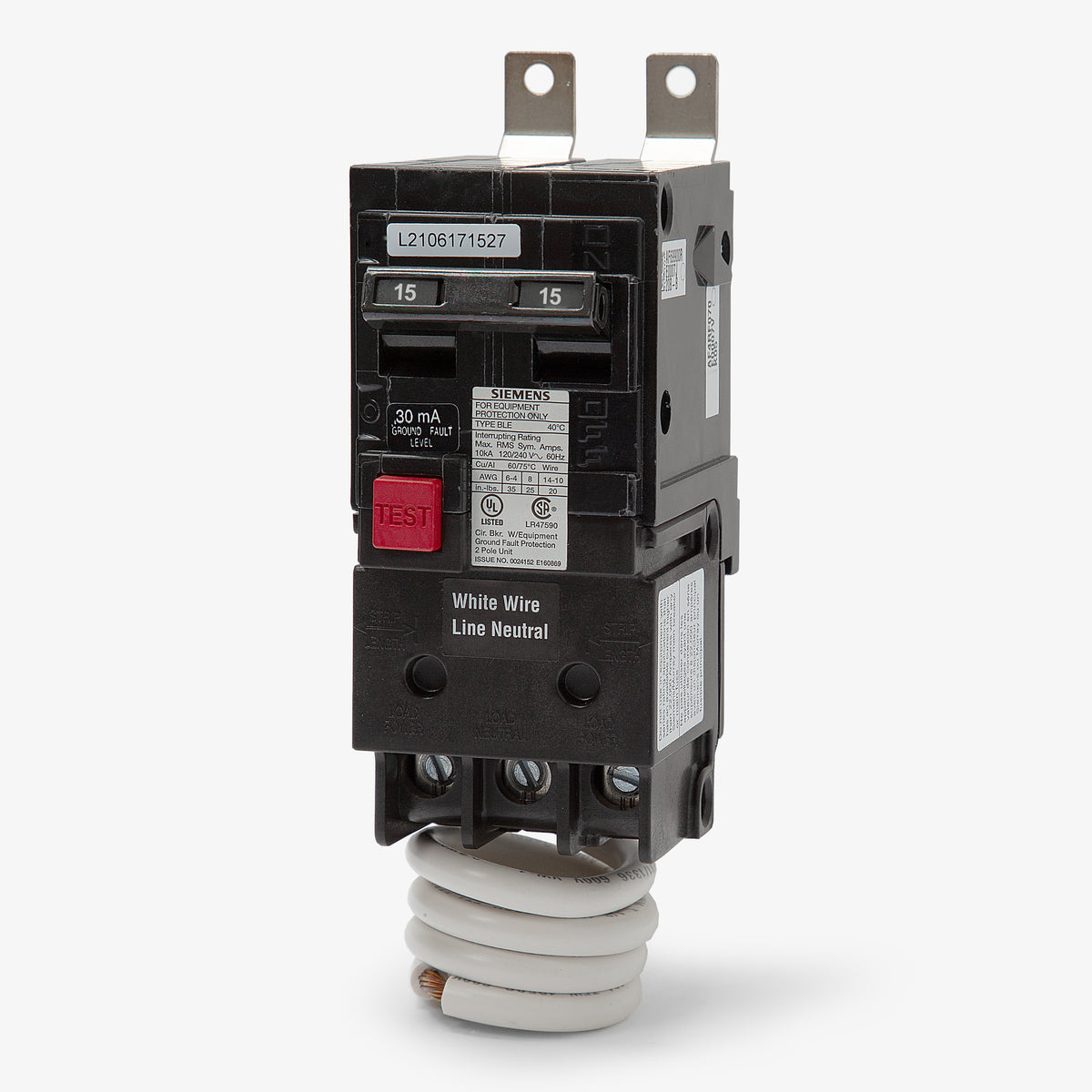

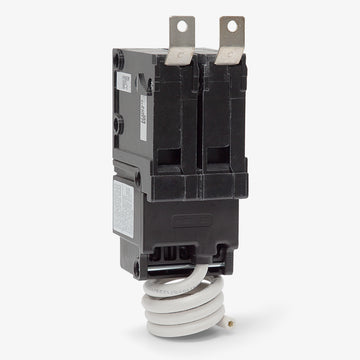

Siemens BE215H GFEP Molded Case Circuit Breaker
- 15A
- 2 Pole

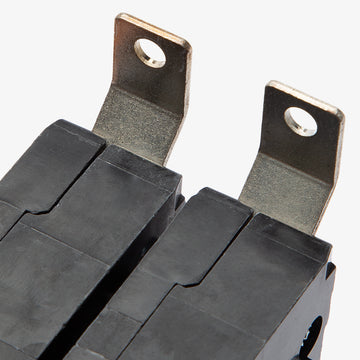

- Bolt-On
Siemens
BE215H
GFEP Molded Case Circuit Breaker
Brand
Siemens
SKU
BE215H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens BE215H - 15A GFEP Molded Case Circuit Breaker
New
Quantity
Similar Items
50A GFEP Molded Case Circuit Breaker
60A GFEP Molded Case Circuit Breaker
15A GFEP Molded Case Circuit Breaker
Description
Part of the Siemens BLEH frame series, the BE215H equipment protection breaker serves commercial and industrial applications. It delivers reliable thermal-magnetic overcurrent protection alongside specialized ground fault detection to safeguard machinery. This bolt-on breaker installs into Siemens P1, P2, and P3 panelboards. It functions as an exact replacement for legacy B215EGH and BLEH215 models. Rated at 22kAIC, it features a 30mA trip sensitivity for dedicated equipment protection.Specifications
| Brand | Siemens |
|---|---|
| Part Number | BE215H |
| Series | BE |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFEP |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity |
Product FAQs
6 answersCan the BE215H be installed in standard plug-on residential load centers?
No. This breaker features a bolt-on connection designed specifically for commercial and industrial Siemens P1, P2, and P3 panelboards.
What is the ground fault trip sensitivity of the BE215H?
As a Ground Fault Equipment Protection (GFEP) breaker, it is calibrated with a 30mA trip sensitivity to protect machinery and equipment from leakage currents.
Does the BE215H provide personnel shock protection?
No. This is a GFEP breaker with a 30mA threshold for equipment protection. It does not meet the 5mA threshold required for Class A personnel GFCI protection.
What is the difference between the Siemens BE215 and the BE215H?
The H suffix indicates a higher interrupting rating. The BE215H provides a 22kAIC rating at 120/240VAC, while the standard BE215 is rated for 10kAIC.
Are there alternate catalog numbers for the BE215H?
Yes, this breaker is commonly cross-referenced with legacy Siemens catalog numbers B215EGH and BLEH215.
How is the ground fault circuit completed during installation?

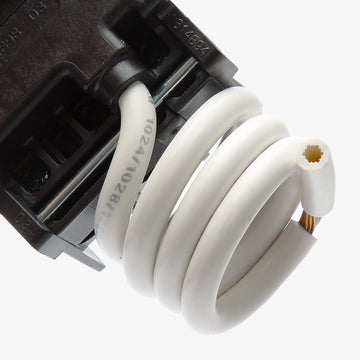

The breaker includes a pigtail neutral wire that must be securely terminated at the panelboard neutral bar to enable the ground fault detection circuitry.
