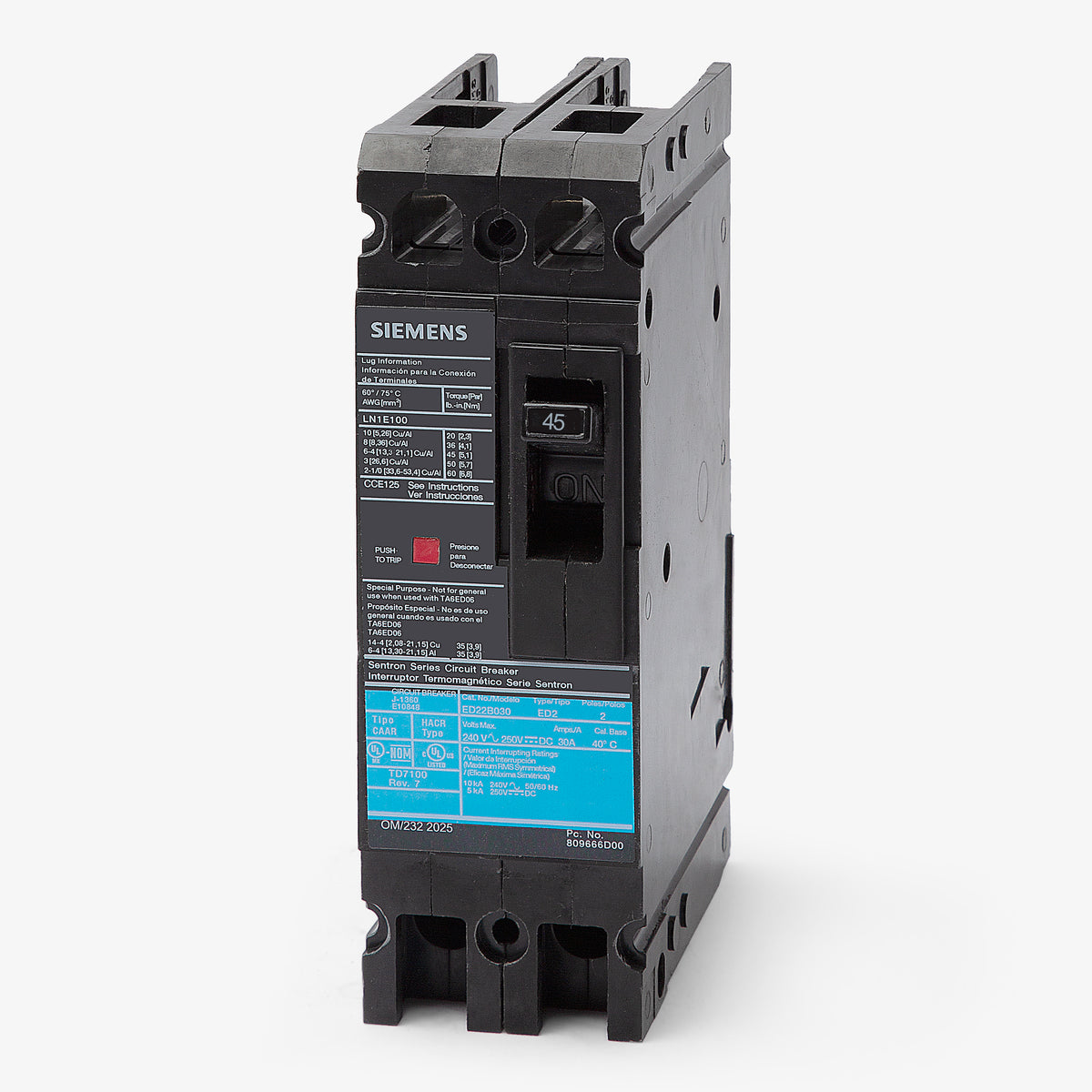

Siemens ED22B045 Molded Case Circuit Breaker
- 45A
- 2 Pole
- Bolt-On
Siemens
ED22B045
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED22B045
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED22B045 - 45A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED22B045 - 45A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED22B045 |
| Series | ED2 |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Sold out
Quantity
Siemens ED22B045 - 45A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED22B045-R |
| Series | ED2 |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Similar Items
40A 2 Pole Molded Case Circuit Breaker
35A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
Description
Designed for industrial power distribution, this 45A ED2 frame breaker provides essential long-time and instantaneous protection. The rugged construction suits heavy-duty commercial environments. The device mounts securely into Siemens Sentron panelboards and switchboards using a standard bolt-on configuration. Delivering a 10kA interrupting capacity at 240VAC, it includes fixed thermal-magnetic trip elements. The breaker carries an HACR rating for heating and cooling applications.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED22B045 |
| Series | ED2 |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
4 answersWhat panelboards are compatible with the ED22B045 circuit breaker?
This ED frame breaker is designed for use in Siemens Sentron panelboards and switchboards that accept bolt-on branch breakers. It is not compatible with standard residential plug-on load centers.
Can the Siemens ED22B045 replace older ITE or Gould breakers with the same catalog number?
Yes. Siemens acquired ITE and Gould, so the ED22B045 is a direct physical and electrical replacement for legacy ITE and Gould ED22B045 breakers.
Does the ED22B045 come with line and load lugs installed?
This breaker typically includes load side lugs as standard. Line side connections in Sentron panelboards are made via the bolt-on bus connections, so line lugs are not required for standard panelboard installation.
Can I install this ED frame breaker in a panelboard from another manufacturer?
No. Installing a Siemens ED22B045 in a non-Siemens panelboard violates UL listings and can create a fire hazard due to improper busbar connections. It must only be installed in approved Siemens or legacy ITE enclosures.
