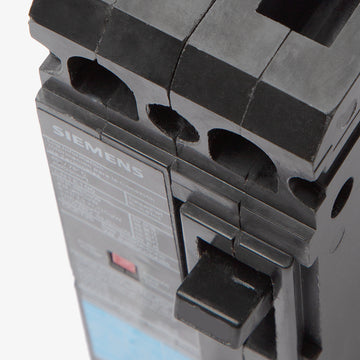

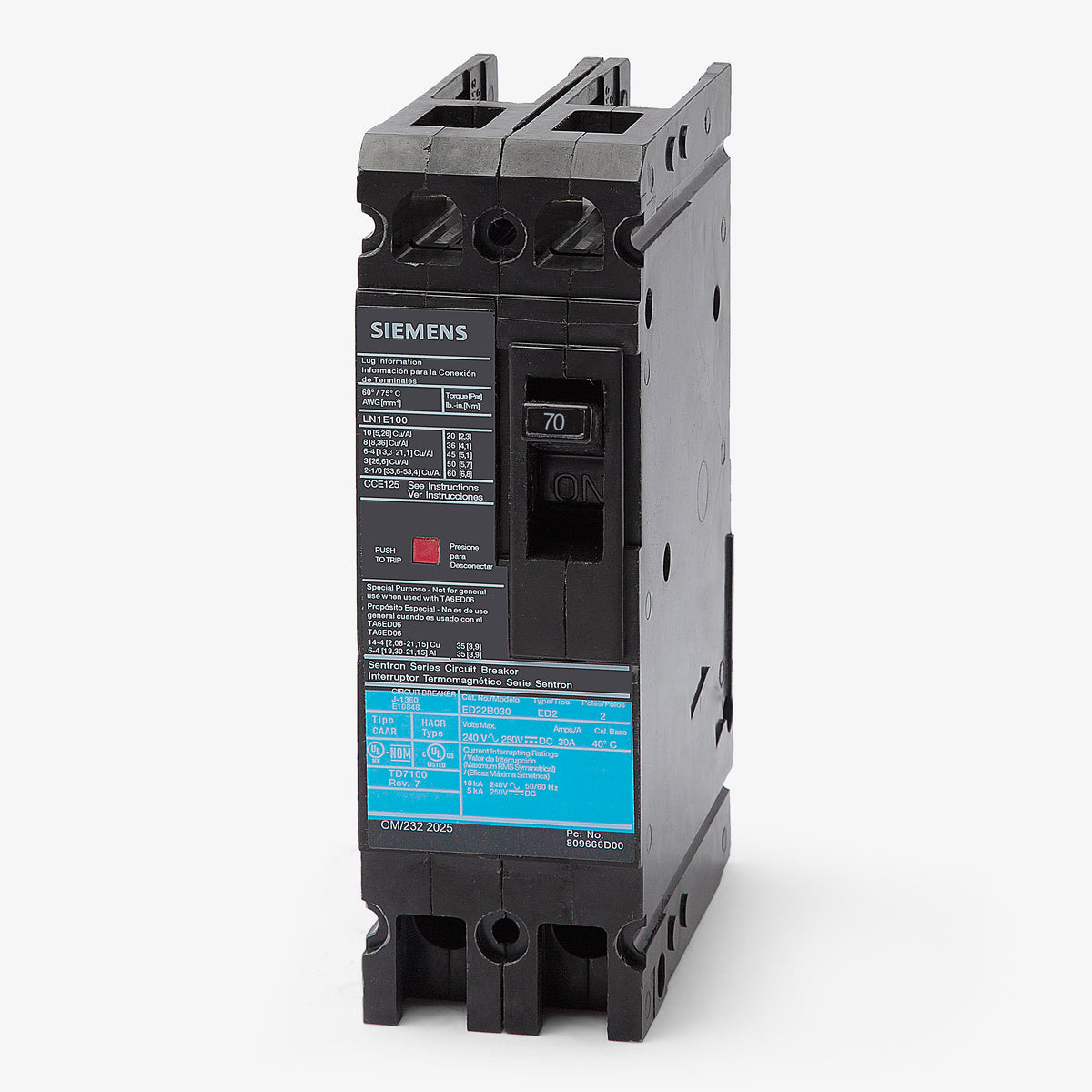

Siemens ED22B070 Molded Case Circuit Breaker
- 70A
- 2 Pole
- Bolt-On
Siemens
ED22B070
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED22B070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED22B070 - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED22B070 - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED22B070 |
| Series | ED2 |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Quantity
Siemens ED22B070 - 70A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED22B070-R |
| Series | ED2 |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Similar Items
60A 2 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
Description
Providing 10kAIC interrupting capacity at 240VAC, the Siemens ED22B070 is a 70-amp, 2-pole molded case circuit breaker. It utilizes fixed thermal and magnetic trip units to deliver precise long-time and instantaneous protection. Designed for secure bolt-on installation, this ED2-type breaker fits seamlessly into Siemens Sentron panelboards and switchboards. The unit includes load-side lugs, is HACR rated for air conditioning loads, and allows for reverse-feed wiring.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED22B070 |
| Series | ED2 |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
5 answersWhich panelboards are compatible with the ED22B070 circuit breaker?
This bolt-on breaker is designed for use in Siemens Sentron panelboards, including P1, P2, and P3 models, as well as compatible Siemens switchboards.
Can the Siemens ED22B070 replace older ITE or Gould breakers?
Yes, the Siemens ED22B070 is a direct replacement for legacy ITE and Gould circuit breakers that share the exact same ED22B070 catalog number.
What are the standard wire lugs for the ED22B070?

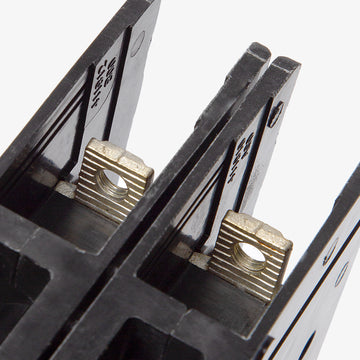

The breaker uses the Siemens LN1E100 aluminum body lug kit on the load side, which accepts 10 AWG to 1/0 AWG copper or aluminum conductors.
Can this ED frame breaker be used in DC applications?
Yes, the ED22B070 is certified for DC systems up to 250VDC, providing a 5kA interrupting rating for those applications.
Can the ED22B070 be reverse fed?
Yes, this ED2 frame breaker supports reverse feed configurations for flexible panelboard and switchboard installations.
