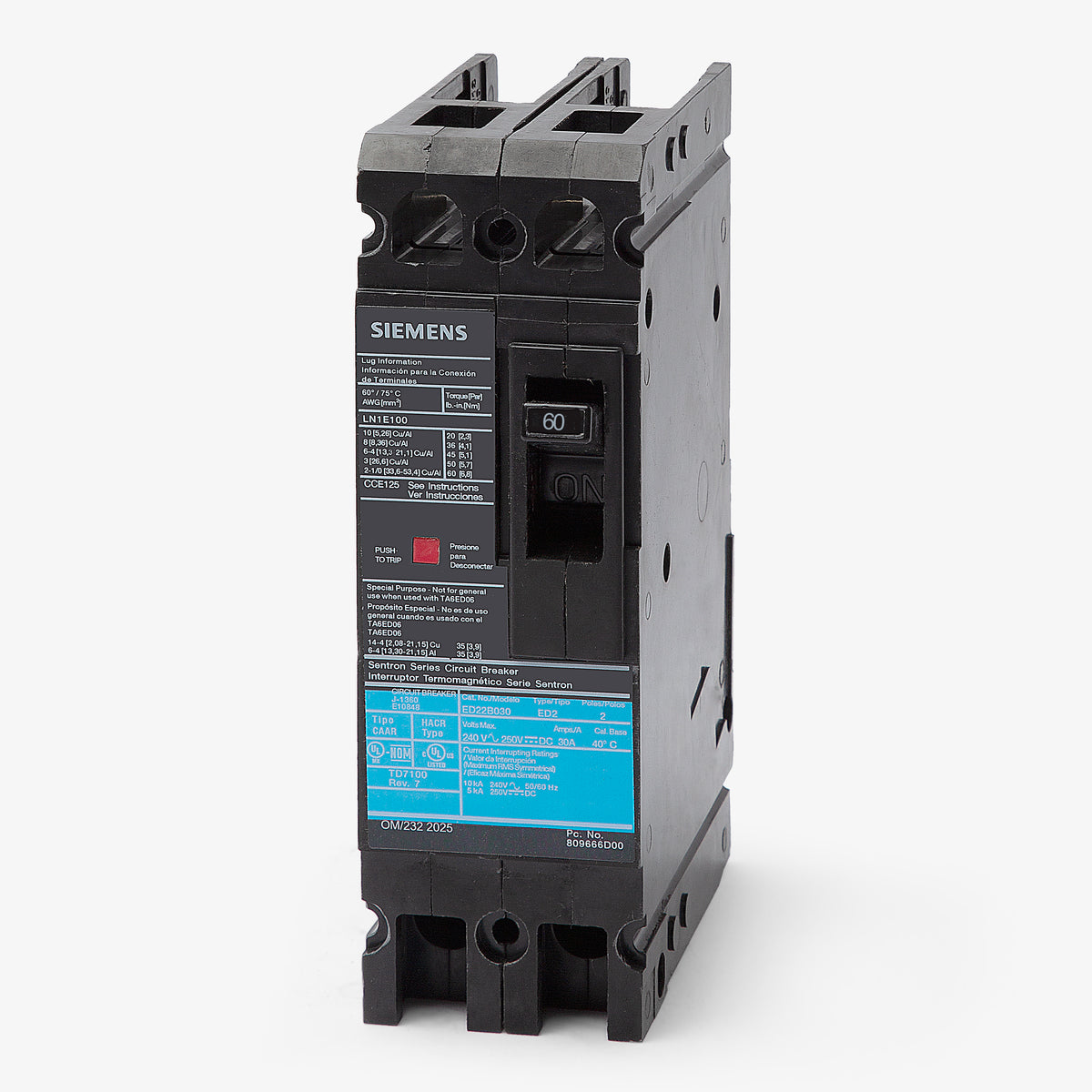

Siemens ED22B060 Molded Case Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
Siemens
ED22B060
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED22B060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED22B060 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED22B060 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED22B060 |
| Series | ED2 |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2, P3 Panelboards, Sentron Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens ED22B060 - 60A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED22B060-R |
| Series | ED2 |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2, P3 Panelboards, Sentron Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
50A 2 Pole Molded Case Circuit Breaker
45A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
Description
The Siemens ED22B060 is a 60-amp, 2-pole molded case circuit breaker from the Sentron ED frame family. Designed for commercial and industrial power distribution, it features fixed thermal and magnetic trip units for reliable long-time and instantaneous protection. This bolt-on MCCB installs into Siemens P2, P3, and Sentron panelboards, as well as compatible switchboards. Rated at 10kAIC at 240VAC, it includes load-side lugs, is HACR rated, and supports reverse-feed configurations.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED22B060 |
| Series | ED2 |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2, P3 Panelboards, Sentron Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhich Siemens panelboards accept the ED22B060 circuit breaker?
This bolt-on breaker installs directly into Siemens P2 and P3 panelboards, Sentron series panelboards, and compatible Siemens switchboards.
Is the ED22B060 rated for direct current (DC) systems?
Yes, in addition to its AC ratings, this thermal magnetic breaker is rated for 250VDC applications with a 5kAIC interrupting capacity.
How does the ED22B060 differ from the ED42B060?
The main difference is the short circuit interrupting rating. The ED22B060 provides 10kAIC at 240VAC, whereas the ED42B060 offers a higher rating of 65kAIC at 240VAC. Both are 60A, 2-pole breakers with identical physical dimensions.
Is the ED22B060 suitable for HVAC equipment?
Yes, this breaker is HACR rated, meaning it is certified for safe use with heating, air conditioning, and refrigeration systems.
What wire gauge is supported by the standard lugs on the ED22B060?
The included lugs accommodate copper (Cu) or aluminum (Al) conductors ranging from 10 AWG up to 1/0 AWG.
Can the Siemens ED22B060 be reverse fed?
Yes. Because this ED frame breaker is built with a non-interchangeable trip unit, it is approved for reverse feed applications where power flows from the load side to the line side.
Can I adjust the trip settings on the ED22B060?
No, this breaker has fixed thermal and fixed magnetic trip elements. The long-time and instantaneous (LI) protection levels are factory set and cannot be adjusted in the field.
