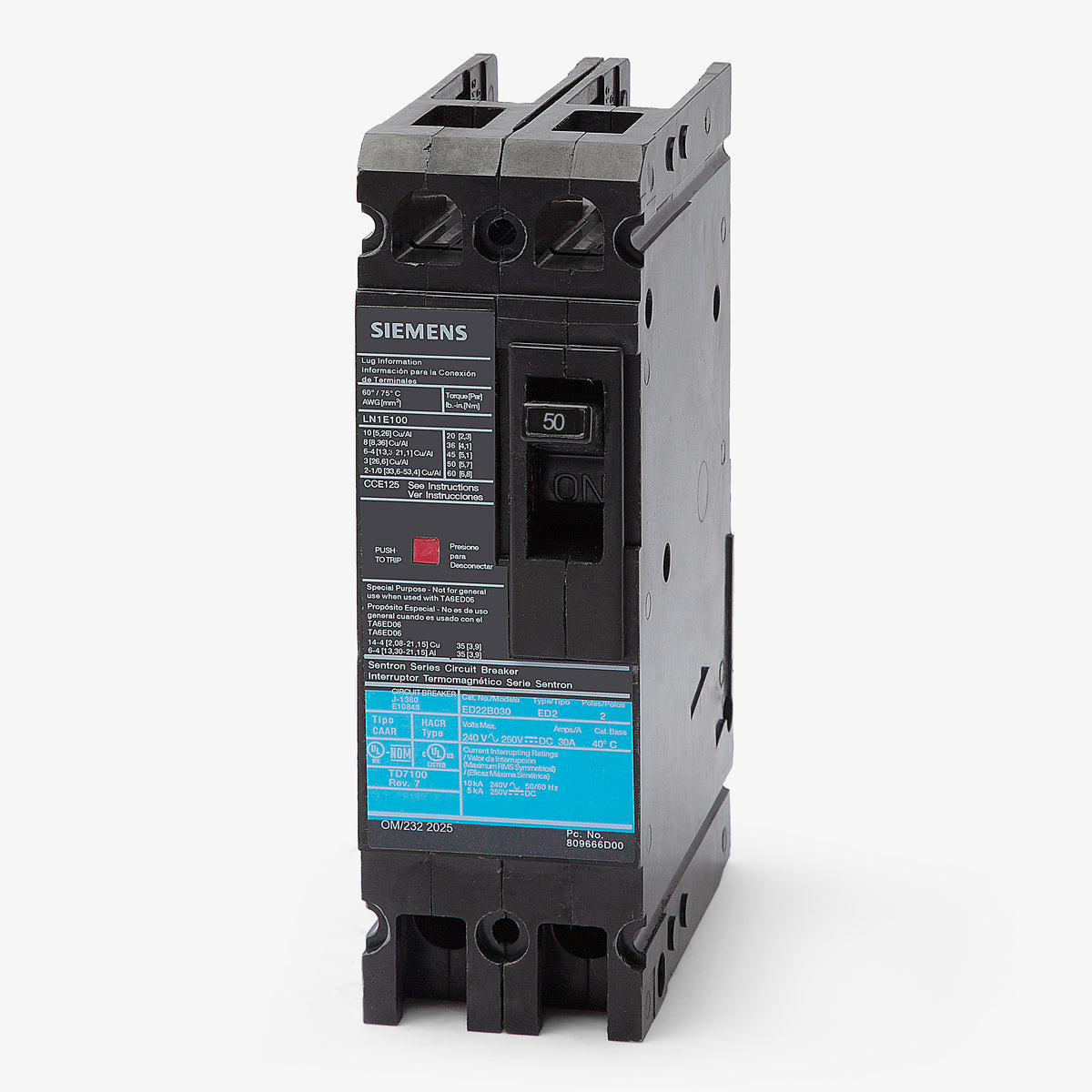

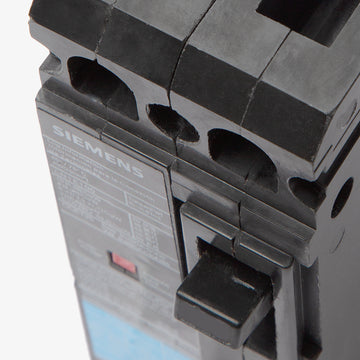

Siemens ED22B050 Molded Case Circuit Breaker
- 50A
- 2 Pole
- Bolt-On
Siemens
ED22B050
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED22B050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED22B050 - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED22B050 - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED22B050 |
| Series | ED2 |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|

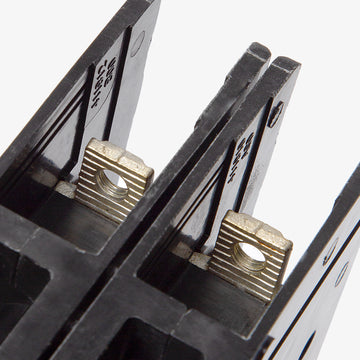

| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Sentron Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
Siemens ED22B050 - 50A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED22B050-R |
| Series | ED2 |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Sentron Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
60A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
35A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial power distribution, the Siemens ED22B050 is a 50A, 2-pole molded case circuit breaker from the Sentron family. It delivers dependable protection for 240VAC and 250VDC systems. This bolt-on MCCB installs seamlessly into Siemens P1, P2, and P3 panelboards, as well as Sentron switchboards. The bolt-on design ensures a secure connection in demanding environments. Rated at 10 kAIC, it features a fixed thermal-magnetic trip unit and includes load side lugs.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED22B050 |
| Series | ED2 |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Sentron Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhat mounting hardware is required to install this breaker in Siemens P2 or P3 panelboards?
Installing the ED22B050 in P2 or P3 panelboards typically requires a BBKED32 twin mount strap kit. For P1 panelboards, an MBKED1 or similar main or subfeed mounting kit is required depending on your specific panel configuration.
Can the ED22B050 replace older I-T-E circuit breakers?
Yes. Siemens acquired I-T-E and continued the ED frame product line. The ED22B050 serves as a direct replacement for obsolete I-T-E ED2 frame breakers with matching specifications.
Is this circuit breaker suitable for DC voltage applications?
Yes, the ED22B050 is rated for up to 250VDC with a 5kAIC interrupting capacity. This makes it suitable for specific battery, solar, or industrial DC control circuits that fall within these ratings.
Is the ED22B050 HACR rated?
Yes, this breaker is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration equipment. It also carries a standard UL 489 listing.
Can the ED22B050 be reverse fed?
Yes, standard Siemens ED frame circuit breakers are suitable for reverse feed applications. The line and load connections can be swapped if required by your specific panel or enclosure setup.
